12 61 285 Replacing Level Switch For Engine Oil (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
Switch off ignition.
Remove reinforcement plate.
Drain engine oil.

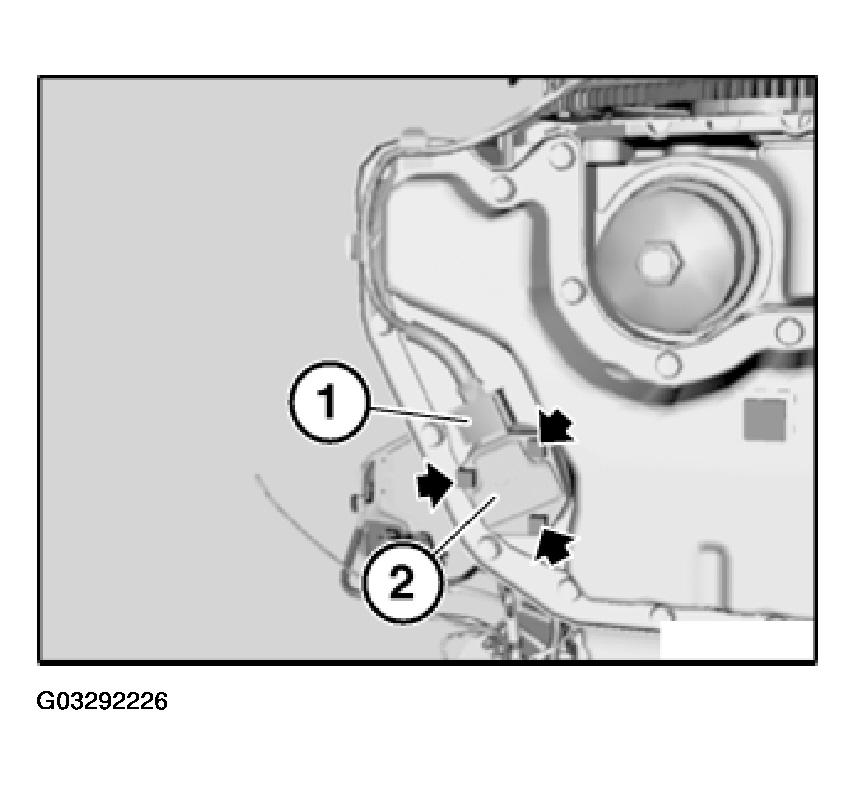

Release plug connector (1) and pull off.
Unscrew nuts.
Remove level switch (2).
Installation:
Clean sealing face on oil sump, replace gasket.
Tightening torque, refer to 12 61 2AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Top up engine oil.
