12 61 280 Removing And Installing Or Replacing Oil Pressure Sensor (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard! Only perform this task on an engine that has cooled down.
Installation Location:
Cylinder bank 1 to 6 underneath timing chain tensioner.
Engine oil may emerge when oil pressure switch is replaced; have a cleaning cloth ready.
Necessary Preliminary Tasks:
Switch off ignition.
NOTE:

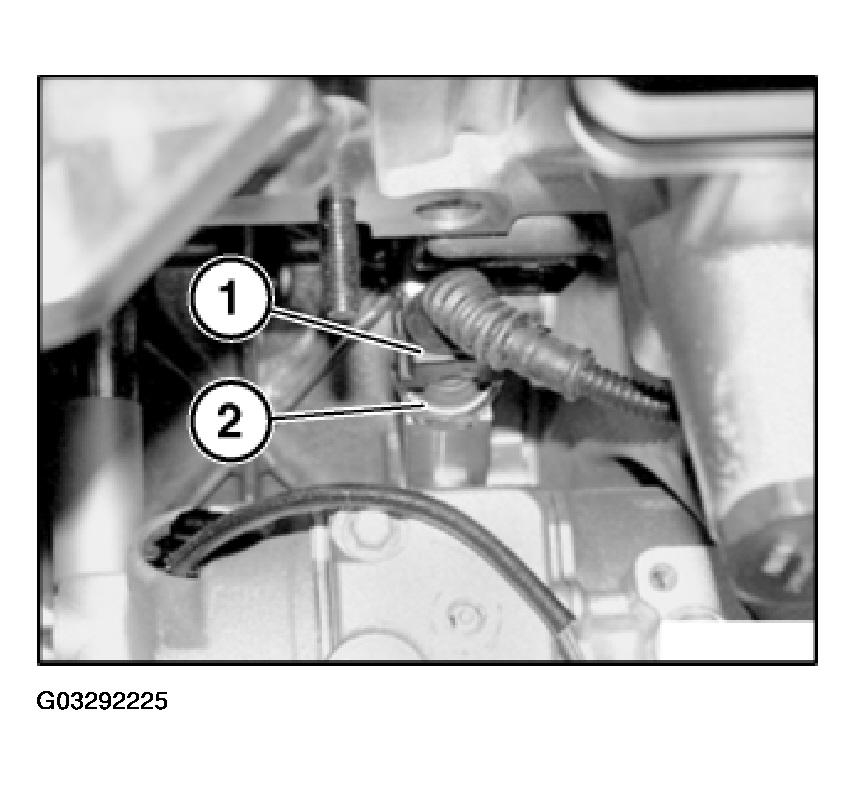

Illustration does not show exhaust manifold.
Unlock and detach plug connection (1).
Unscrew oil pressure switch (2).
Installation:
Tightening torque, refer to 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Check engine oil level, top up engine oil if necessary.
