12 12 011 Replacing All Spark Plugs (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE ELECTRICAL SYSTEM - SPECIAL TOOLS .

Special Tools Required:

12 1 171
12 1 200
12 7 131

Necessary Preliminary Tasks:

Switch off ignition.
Remove acoustic cover.
Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
Remove ignition coils.

Tighten down spark plug with special tool 12 1 171 and special tool 12 7 131 (extension), special tool 12 1 200 (torque limiter).

Tightening torque, refer to 12 12 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

Without special tool 12 1 200, note tightening torque.

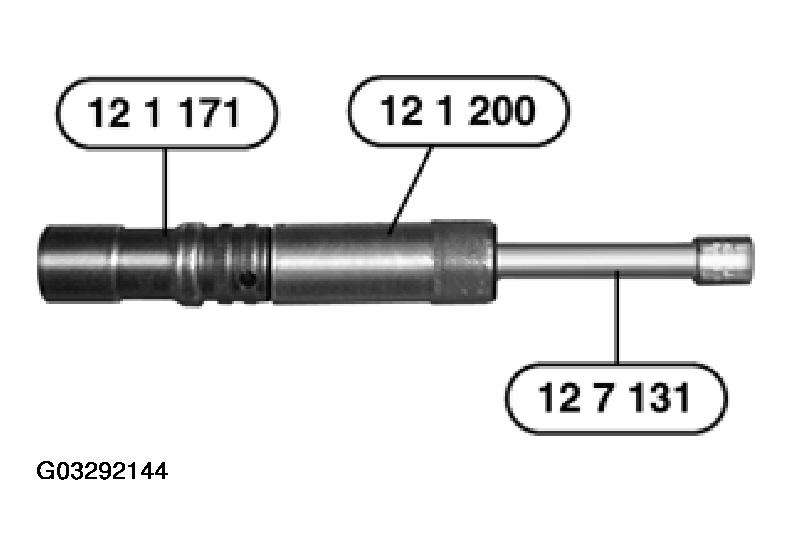

Fig 1: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
