12 13 511 Replacing Ignition Coil (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Remove acoustic cover.
Remove design cover.
Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .

Unlock plug lock (1) for ignition coil.

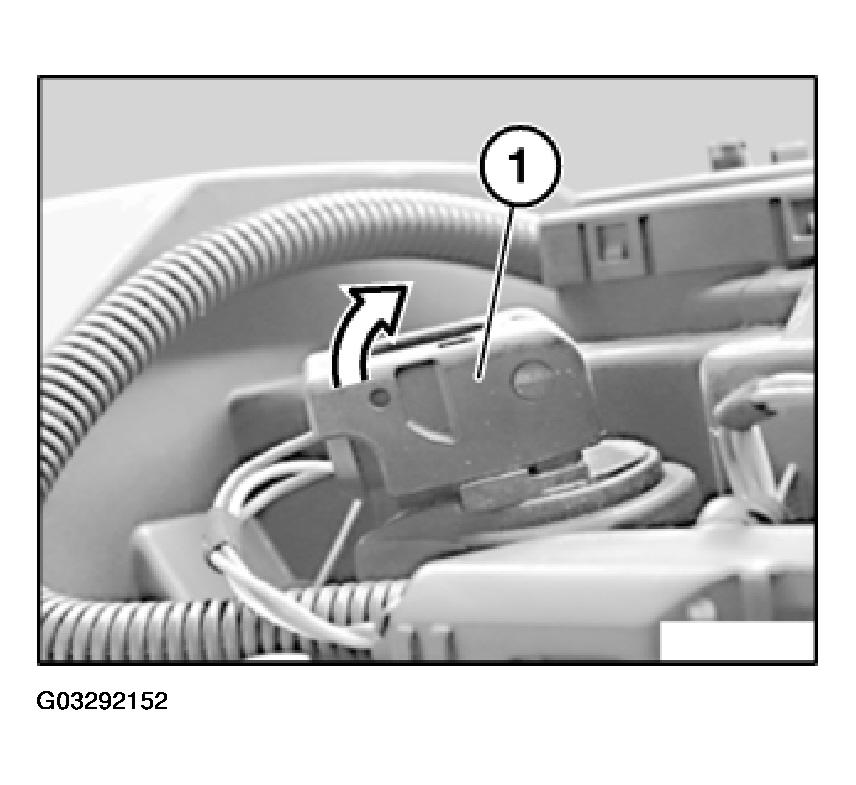

Fig 1: View Of Plug Lock For Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.

Pull out ignition coil (2).

This procedure is applicable to all ignition coils.

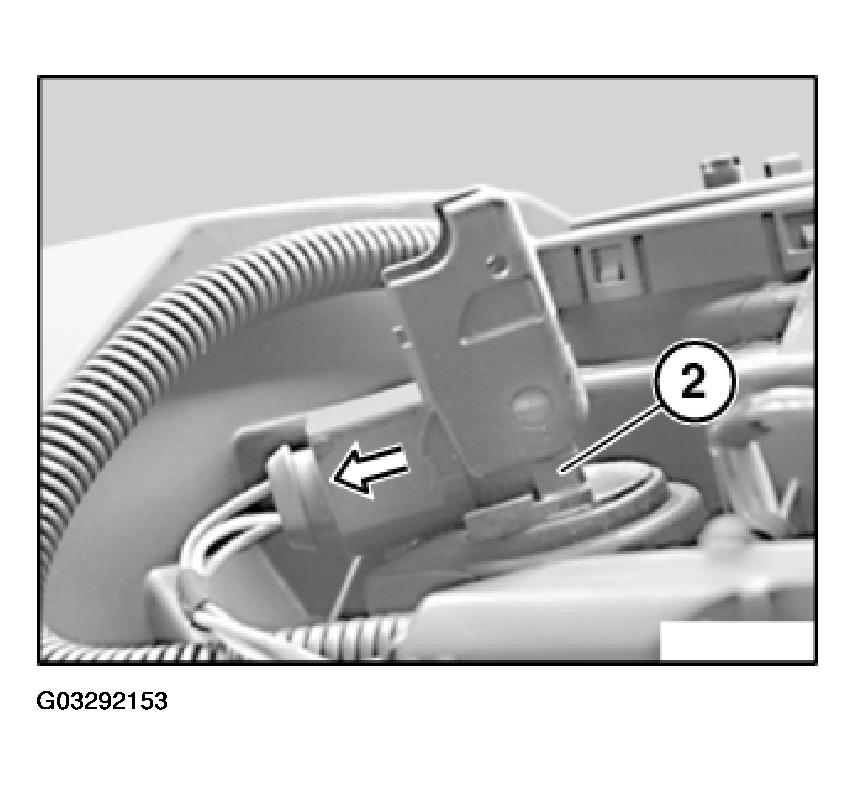

Fig 2: Pulling Out Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rubber seal on ignition coils (2) between guides.

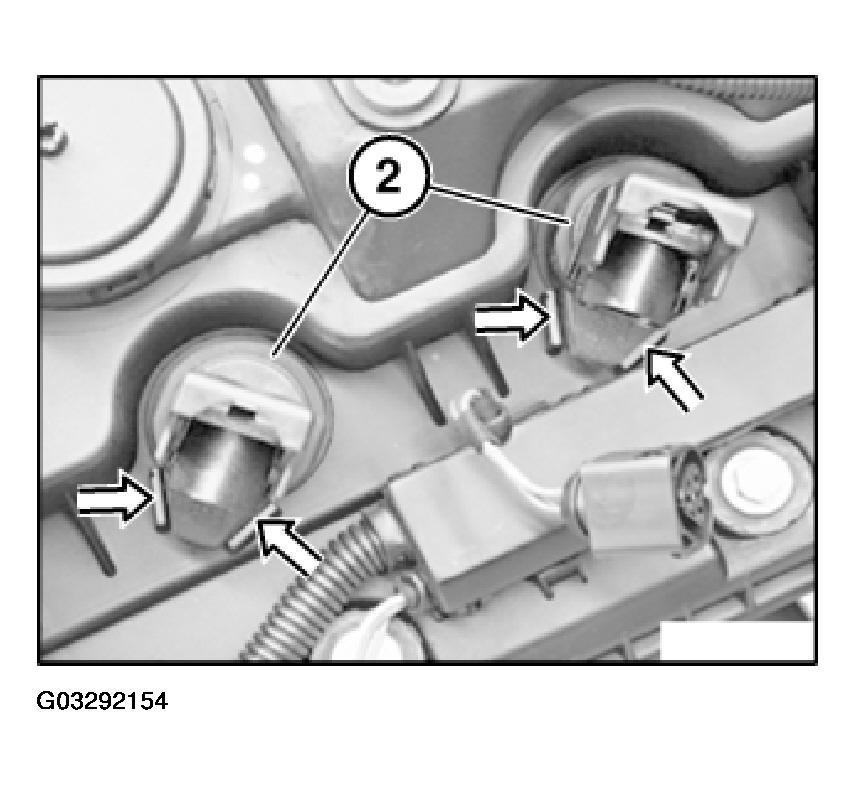

Fig 3: Inserting Rubber Seal On Ignition Coils Between Guides

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check function of DME.
