12 51 150 Removing And Installing/Replacing Wiring Harness Section For Fuel Injectors (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Disconnect battery negative lead from battery and lay to one side. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove acoustic cover.
- Remove right fresh air duct. Refer to 64 31 056 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH-AIR DUCT (AUTOMATIC A/C HIGH) .
- Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .
- Remove manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
- Remove right intake line.
- Remove left intake line.

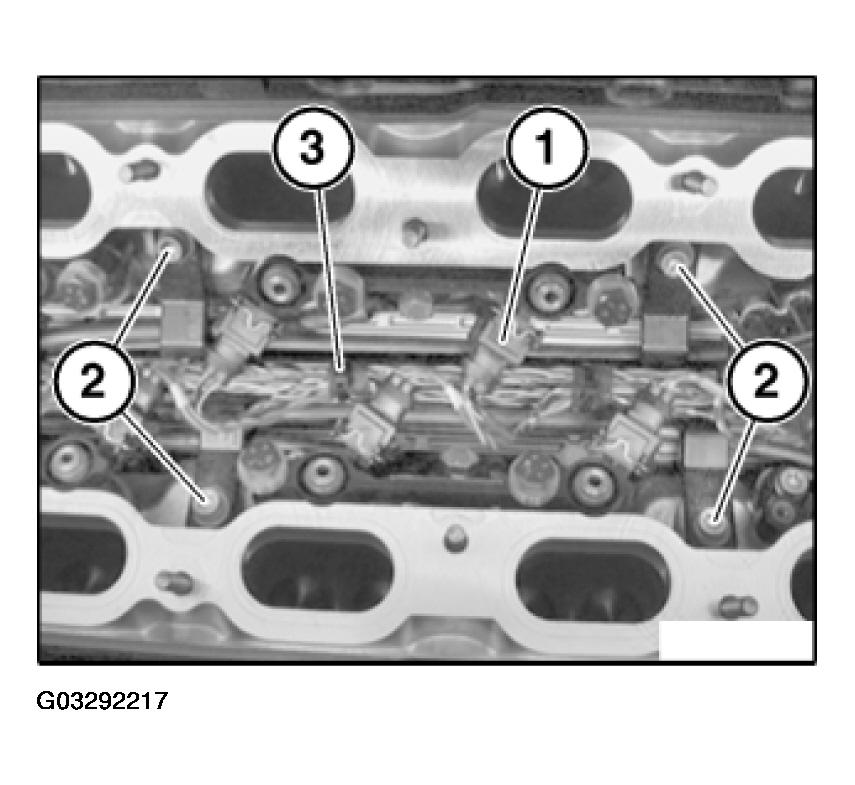

Release screws (2) on cable strip.
Unlock plugs (1) and disconnect from all HDEV valves.
Remove wiring harness section for injectors (3).

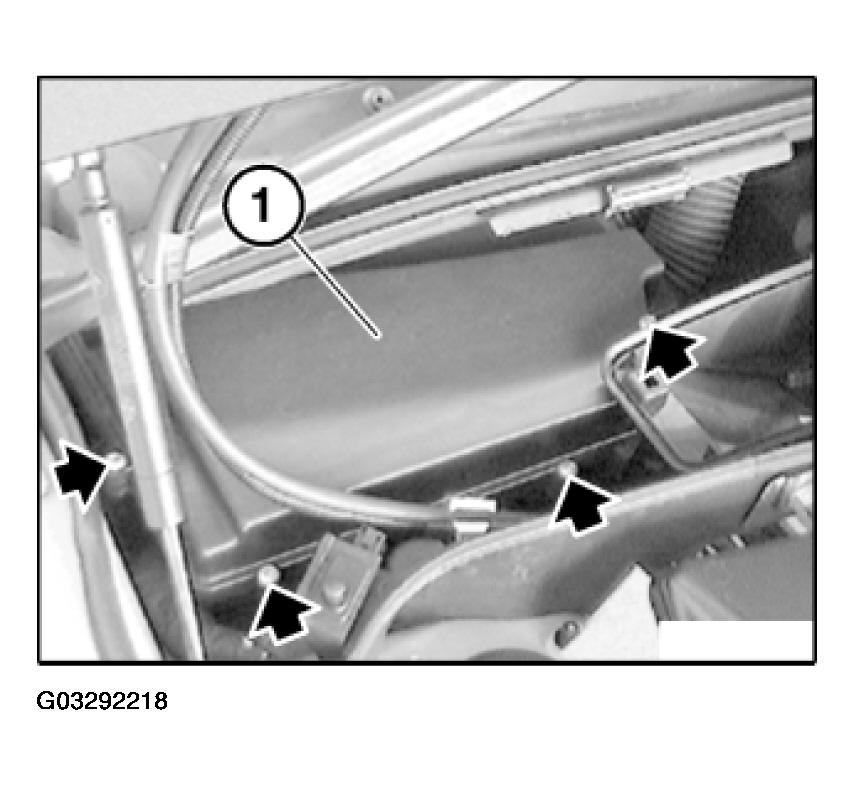

Release screws.
Remove cover from electronics box (1).
Installation:
Tightening torque, refer to 12 90 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:

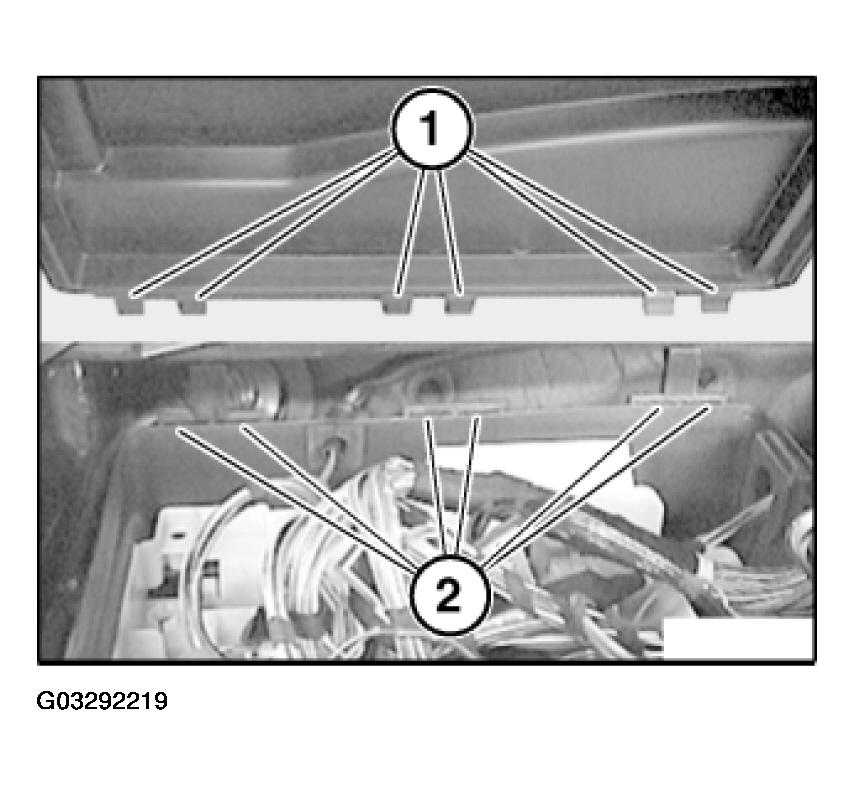

Insert fixtures (1) of cover in openings (2).

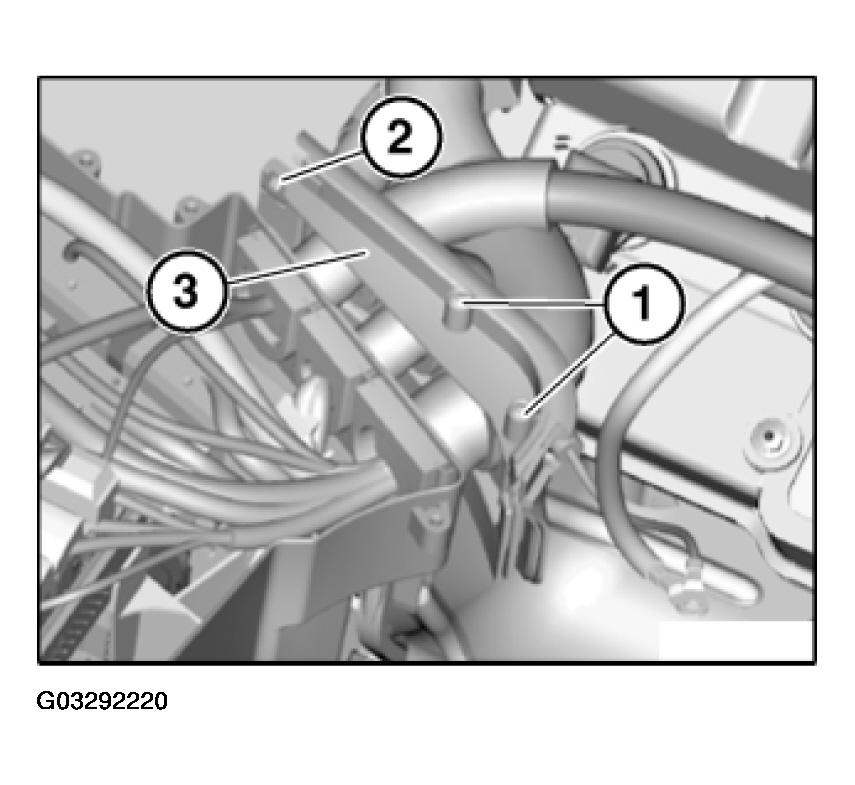

Release screws (1).
Release retaining clip (2).
Remove cover (3).
Installation:
Install profile seals correctly to ensure watertightness.

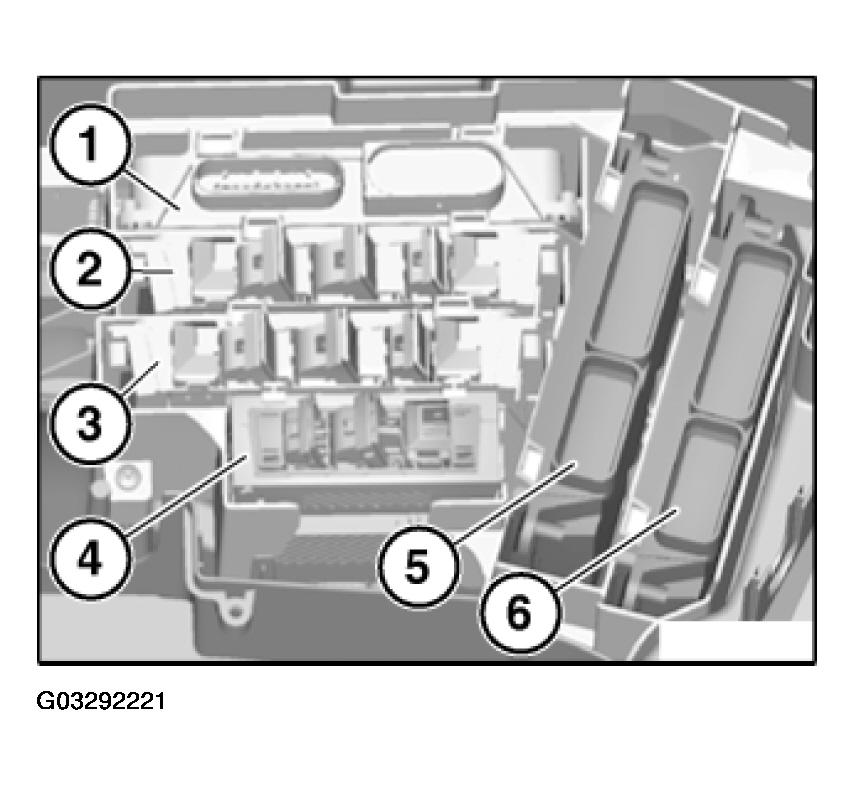

Disconnect plug connection (6) on HDEV control unit (cyl. 1 to 6).
Installation:
Cable colors black.
Disconnect plug connection (5) on HDEV 2 control unit (cyl. 7 to 12).
Installation:
Cable colors red.
Assemble engine.
Check function of DME.
