12 51 001 Replacing Wiring Harness Section For Engine (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Read out DME fault memory.
- Disconnect battery negative lead. Refer to 61 00... BATTERY .
- Engine hood in assembly position. Refer to 51 00... SERVICE POSITION OF ENGINE HOOD .
- Remove right fresh air duct. Refer to 64 31 056 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH-AIR DUCT (AUTOMATIC A/C HIGH) .
- Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .
- Remove electronics box cover.
- Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
- Remove underbody protection at front/rear.
- Remove reinforcement plate.

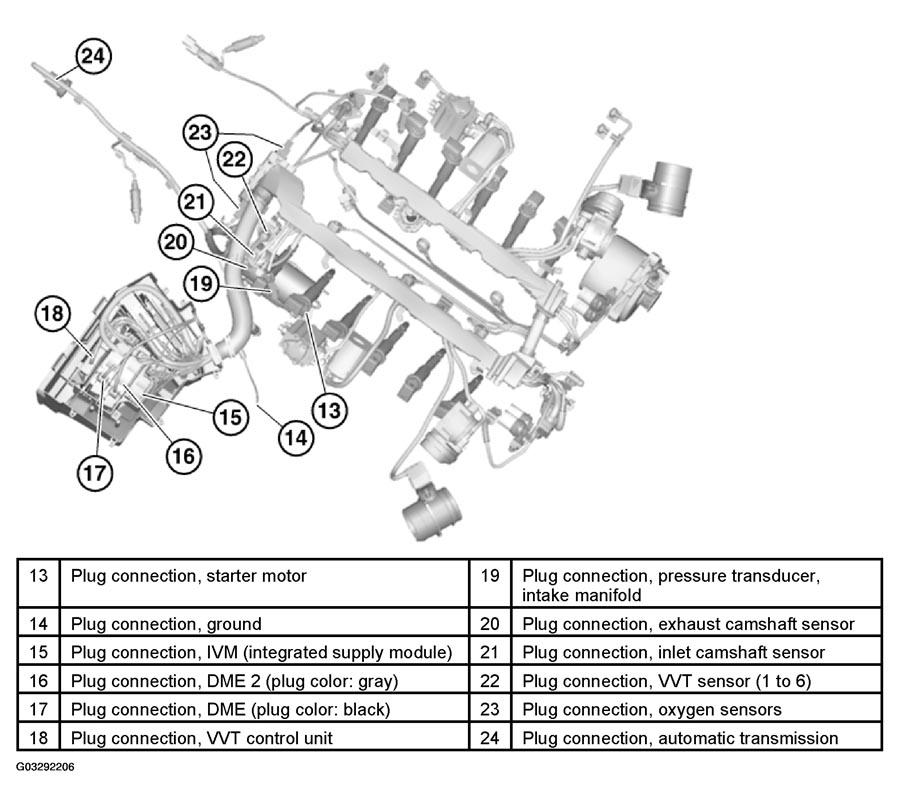

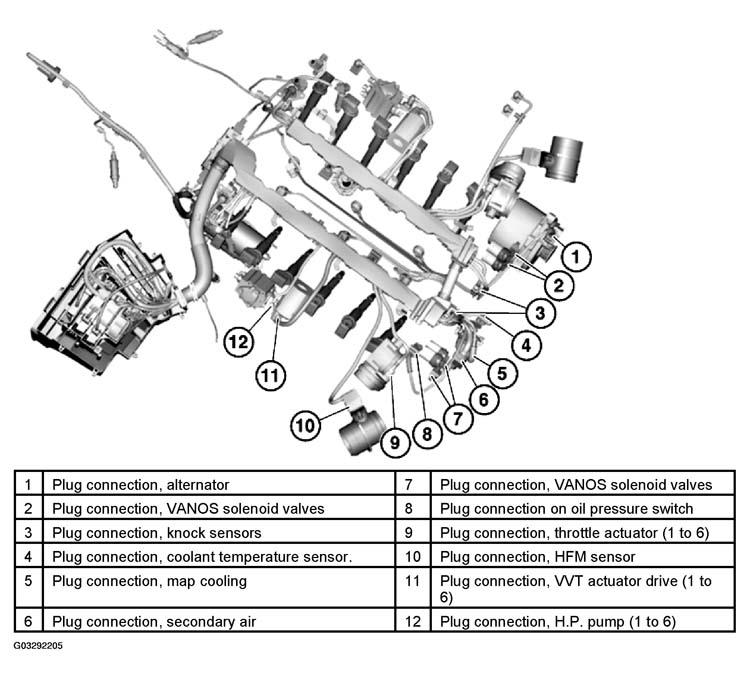

Unfasten Following Plug Connections:

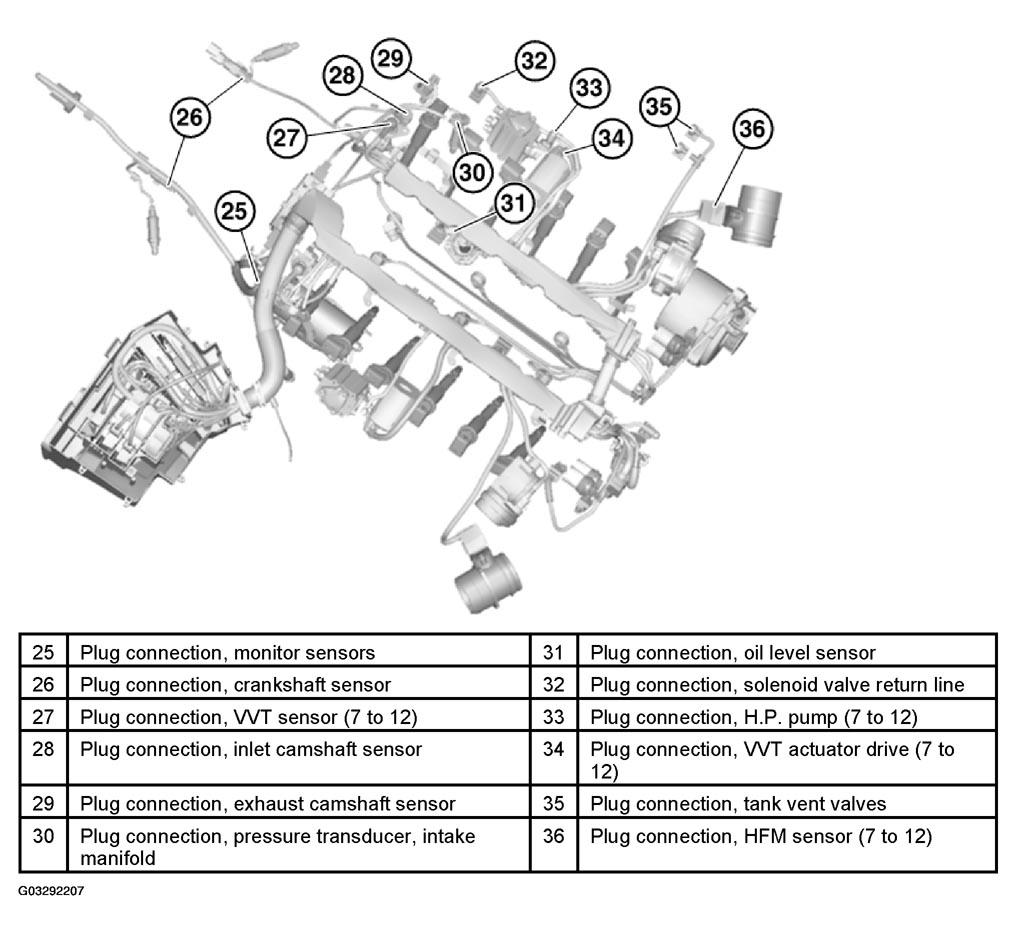

Unfasten Following Plug Connections:
Unfasten Following Plug Connections:

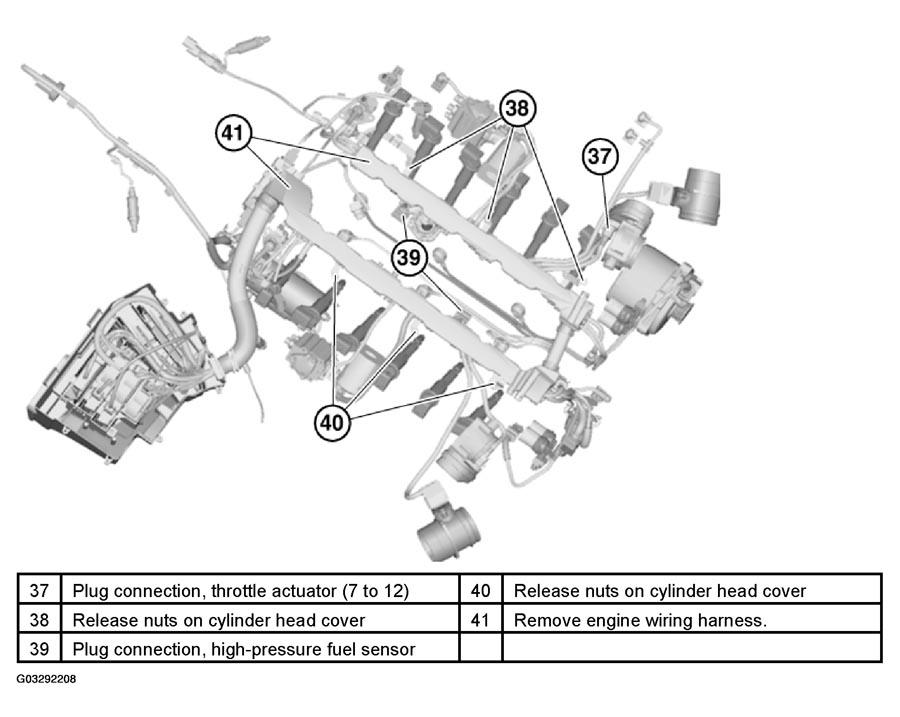

Unfasten Following Plug Connections:

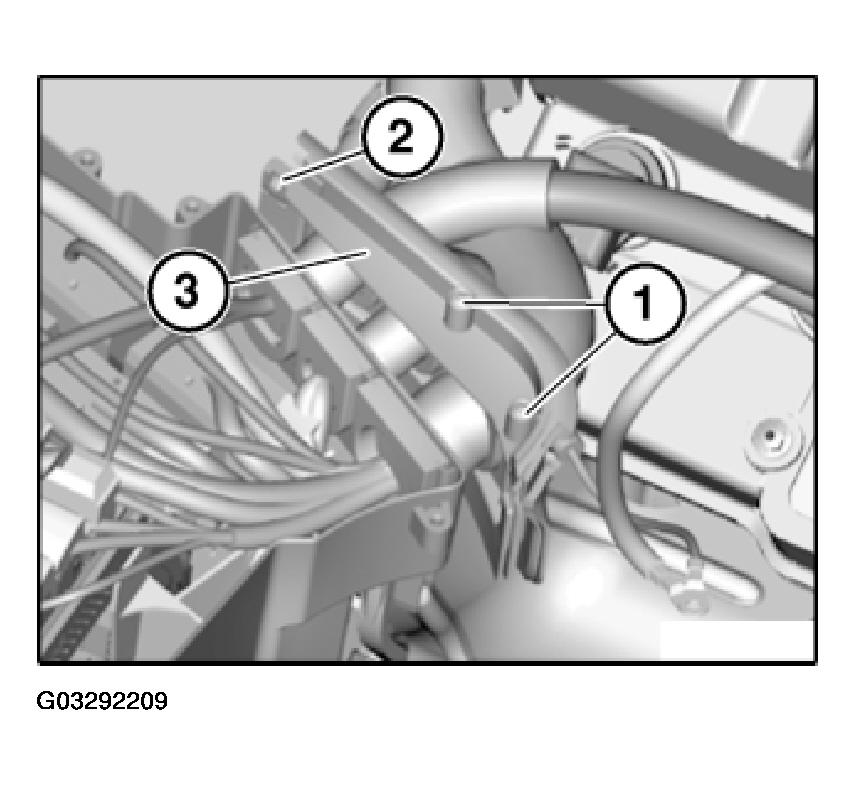

Release screws (1).
Release retaining clip (2).
Remove cover (3).
Installation:
Fit profile seals correctly.
Check for water leaks.
Installation:

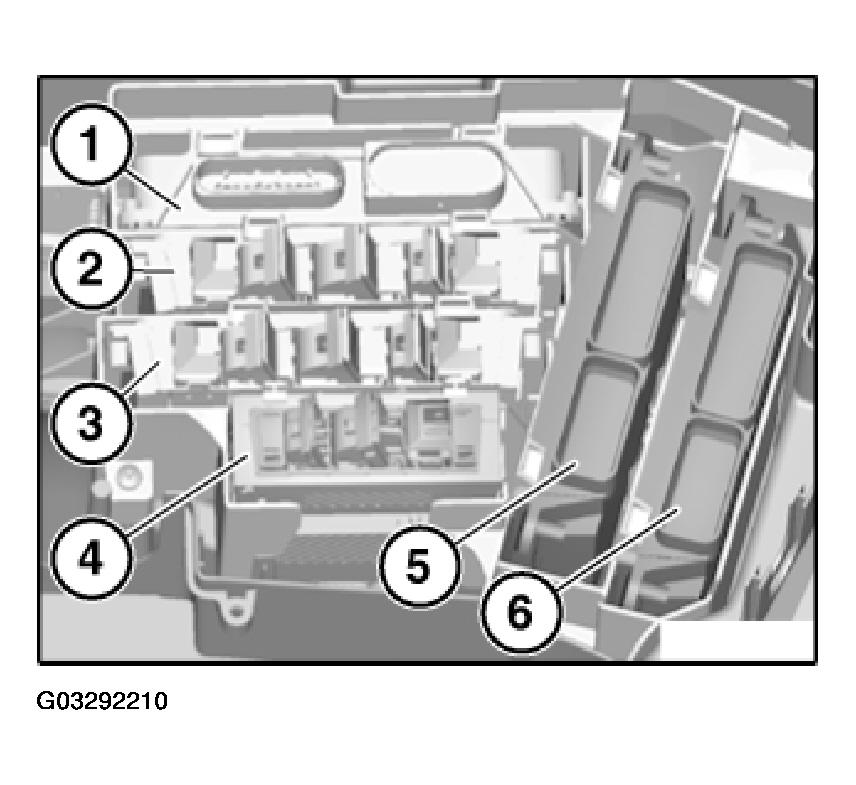

Plug assignment in equipment carrier:
Control unit (1) VVT.
Control unit (2) DME. (plug color black).
Control unit (3) DME 2 (plug color gray).
Control unit (4) IVM (integrated supply module).
Control unit (5) HDEV 2 (high-pressure fuel injection control unit 7 to 12). (cable color red).
Control unit (6) HDEV (high-pressure fuel injection control unit 1 to 6). (cable color black).
Assemble engine.
NOTE:
Check function of DMC.
