12 14 513 Replacing Pulse Generator On Right Exhaust Camshaft (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

(Cylinder bank 1 to 6)
Read out fault memory of DME control unit.
Remove center equipment bulkhead. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .

Unlock and detach plug connection (1).

Unscrew screw.

Remove pulse generator (2).

Installation:

Replace sealing ring and coat with anti-friction rubber coating.

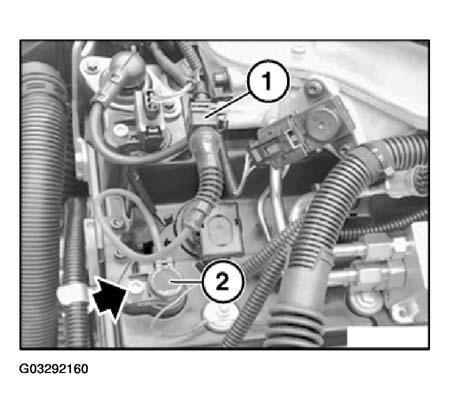

Fig 1: Locating Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check function of DME.
