11 37 700 Replacing Control Unit (Valvetronic)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Read fault memory.
Remove right fresh air duct. Refer to 64 31 056 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH-AIR DUCT (AUTOMATIC A/C HIGH) .

IMPORTANT: Follow instructions for removing and installing electronic control units.

Remove holder (1).

Remove cover (2).

NOTE: Remove holder (3). Only necessary when removing wiring harness.

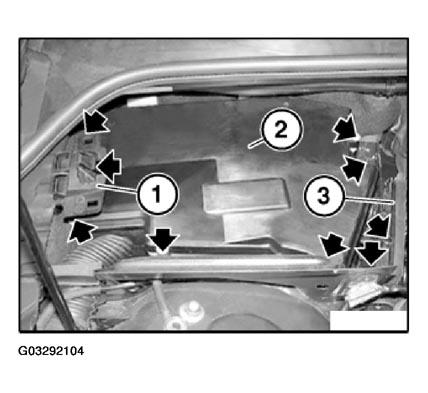

Fig 1: Locating Holder And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection on Valvetronic control unit (1).

Remove Valvetronic control unit (2).

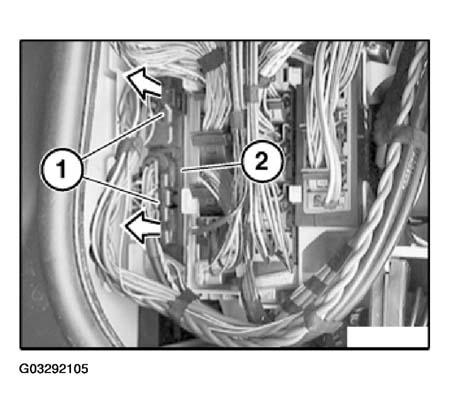

Fig 2: View Of Valvetronic Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
