11 37 022 Removing And Installing/Replacing Servomotor For Left And Right Eccentric Shaft (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Cylinder bank 1 to 6 is identical to 7 to 12.
NOTE:
Illustrations show N62 and N73.
Necessary Preliminary Tasks:
- Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .

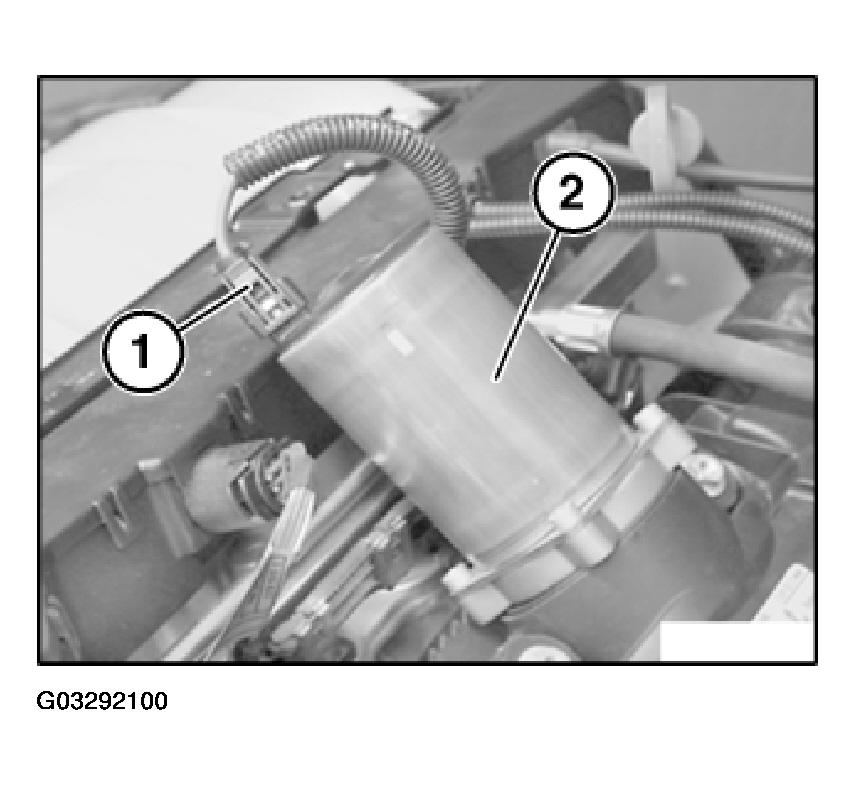

Unlock plug connection (1) on servomotor (2) and disconnect.
NOTE:
Illustrations show N62.

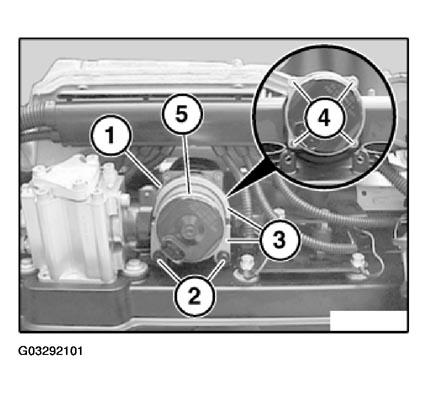

Release hose clip (1).
Loosen screws (2).
Remove split holder (3).
Loosen screws (4).
Remove servomotor (5).
Installation:
Replace sealing ring on spacer.
Ensure correct installation position.
