11 00 045 Checking Absolute Compression Of All Cylinders

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Diagnosis And Information System (DIS)

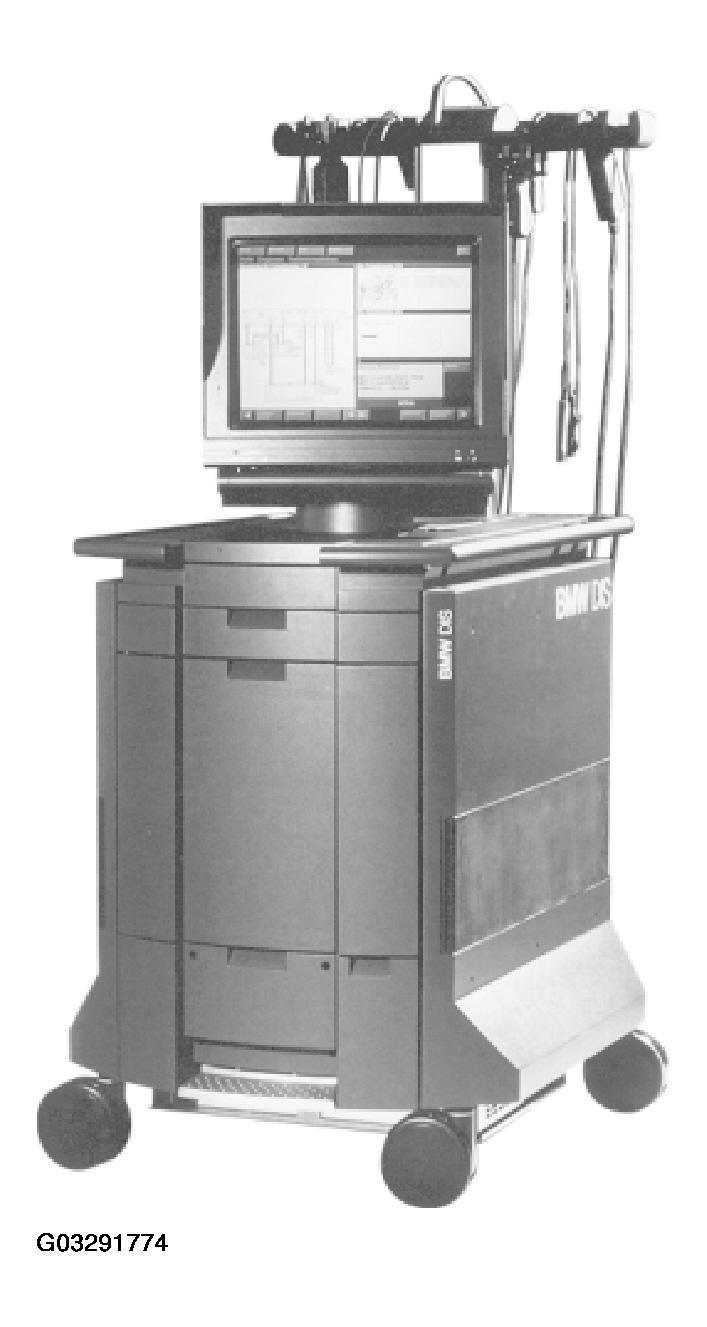

Fig 1: Identifying Diagnosis And Information System Equipment

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

Remove equipment wall.
Remove spark plug from 8th cylinder.
(Without removing manifold).
Connect DIS Tester.
Connect charger.

Test:

Call up Diagnosis.
Select vehicle > right arrow button.
Function selection:
- Complete vehicle.
- Drive.
- Engine management:
  - Valve gear.
  - Valvetronic variable valve gear.
  - Mechanical components/function.
Test schedule > right arrow button.
- Compression pressure check > right arrow button.
Follow DIS Tester instructions.

NOTE: Clear fault memory. A mechanical compression pressure check is not possible.
