11 78 533 Replacing Right Lambda Oxygen Control Sensor (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 7 030
11 9 150

Cylinders 1 to 6.

Necessary Preliminary Tasks:

Read out fault memory of control unit of Digital Motor Electronics (DME).
Remove automatic transmission underbody protection.
Remove right intake filter housing. 13 71 010 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) INTAKE FILTER HOUSING (N73) .

WARNING: Scalding hazard! Only perform these tasks after the exhaust system has cooled down.

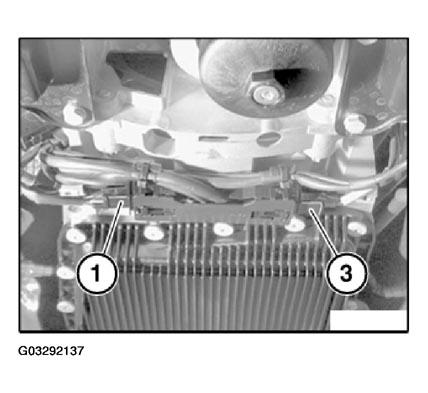

Plug connection (1), cylinders 1 to 6.

Plug connection (3), cylinders 7 to 12.

Unlock and detach plug connection (1).

Unclip oxygen control sensor cable.

Installation:

Pay attention to cable routing of Lambda control sensor.

Fig 1: Detaching Plug Connections (Right)

Courtesy of BMW OF NORTH AMERICA, INC.

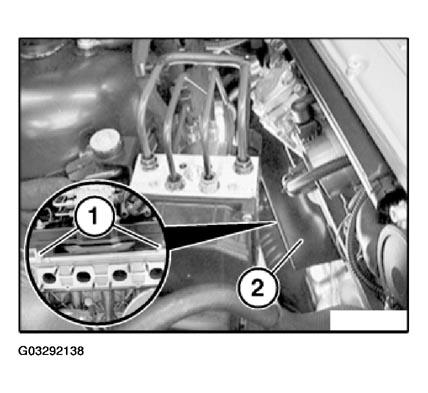

Release screws (1).

Remove shield (2).

Fig 2: Removing Shield And Retaining Screws (Right)

Courtesy of BMW OF NORTH AMERICA, INC.

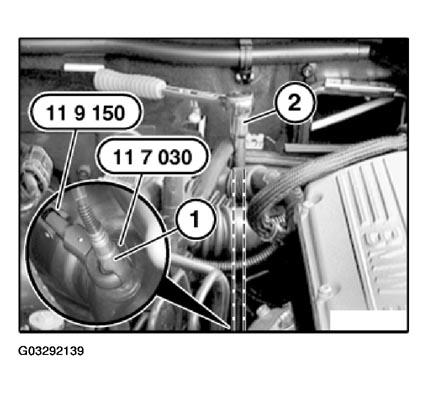

Remove oxygen control sensor (1) with special tools 11 7 030 and 11 9 150.

Oxygen control sensor (1) for cylinders 1 to 6 can only be detached from above and with a suitable extension (2).

Installation:

When using special tools 11 7 030 and 11 9 150, 47 N.m on torque wrench scale corresponds to an actual tightening torque of 50 N.m.

If an oxygen control sensor is reused, apply a thin and even coat of Never Seez compound to the thread only.

The part of the oxygen control sensor which projects into the exhaust system branch (sensor ceramic) must not be cleaned or come into contact with lubricant.

Fig 3: Removing Oxygen Control Sensor With Special Tool (Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.
