11 12 719 Resurfacing Cylinder Head Sealing Face (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .
Remove inlet and exhaust camshafts. Refer to 11 31 032 REMOVING AND INSTALLING/REPLACING LEFT INLET CAMSHAFT (N73) .

Check evenness of cylinder head sealing face with a standard straight-edge (1).

NOTE: Max. deviation from level (longitudinal) 0.10 mm.

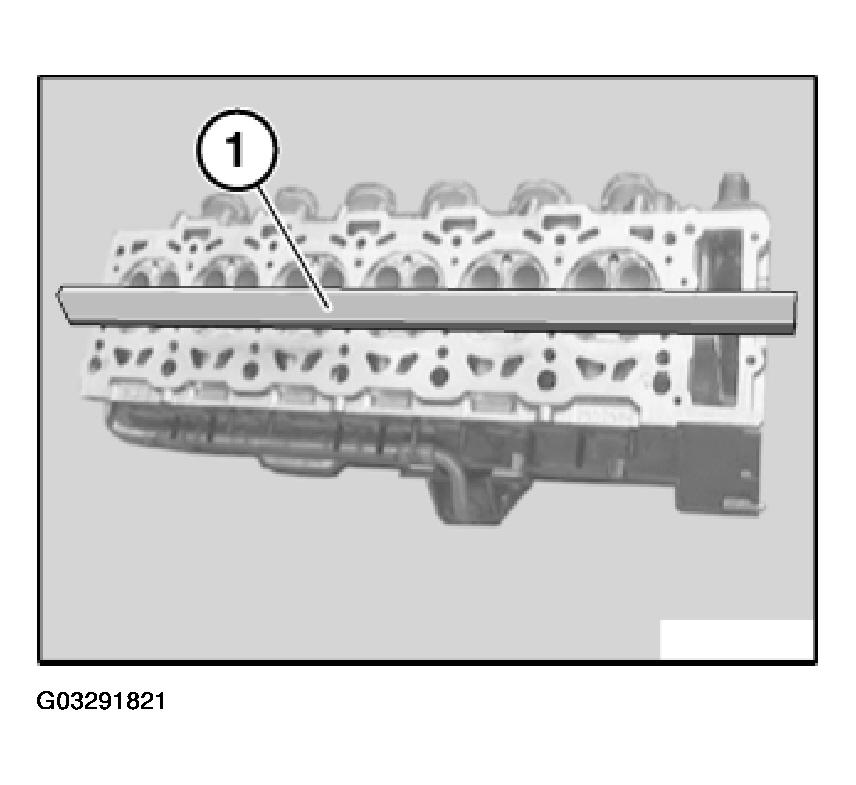

Fig 1: Checking Cylinder Head Sealing Face (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

Check evenness of cylinder head sealing face with a standard straight-edge (1).

NOTE: Max. deviation from level (transversal) 0.05 mm.

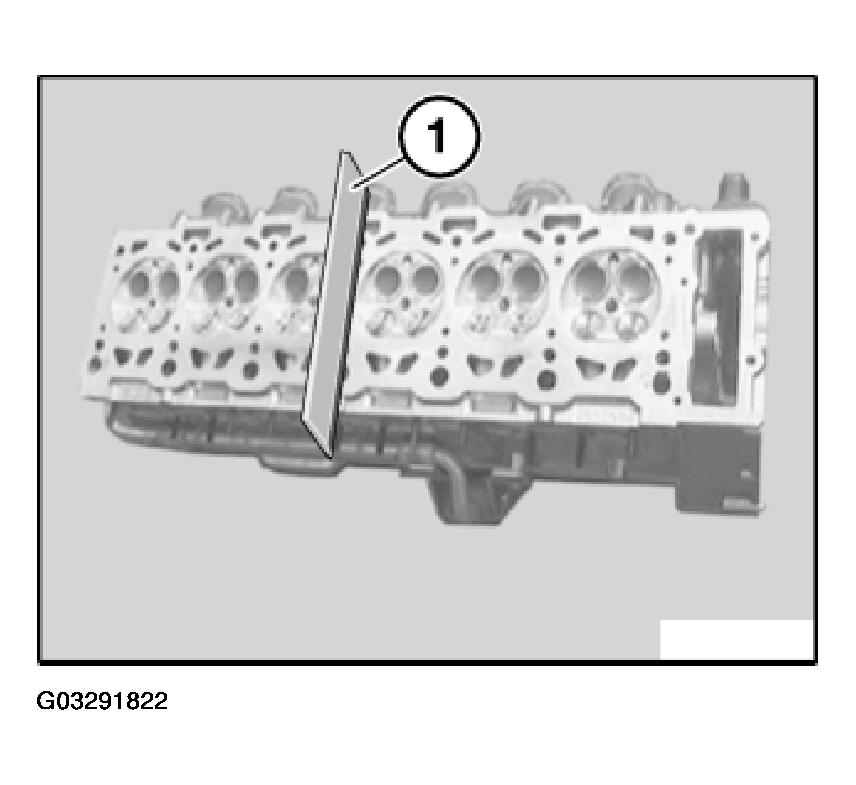

Fig 2: Checking Cylinder Head Sealing Face (Transversal)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A 0.3 mm thick cylinder head gasket is available for machined (milled) cylinder heads.

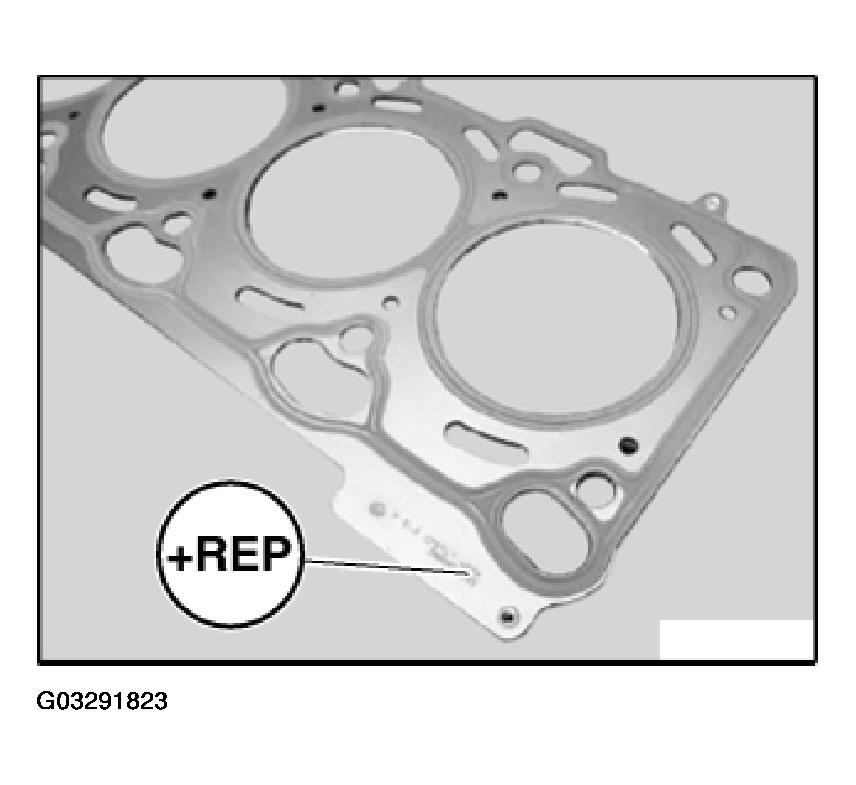

Fig 3: Identifying Special Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
