11 12 110 Replacing Left Cylinder Head Gasket (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Cylinders 7 to 12.

Necessary Preliminary Tasks:

Remove left cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .

IMPORTANT: Replace cylinder head gasket each time cylinder head is removed.

Check rubber coating (1) of cylinder head gasket for damage.

Installation:

Do not damage rubber coating (1) when fitting cylinder head.

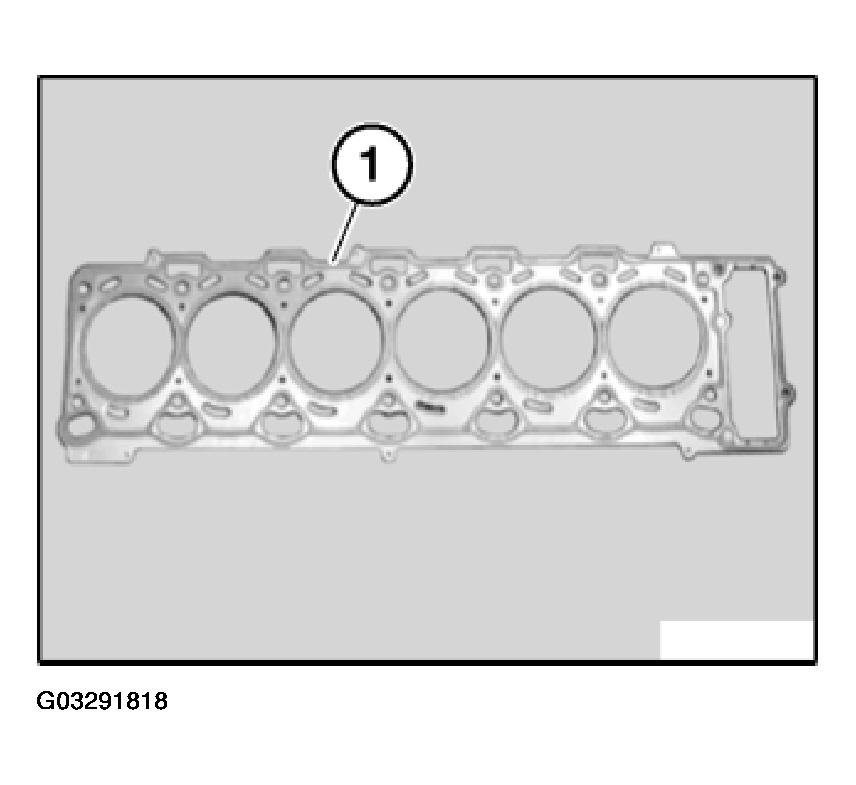

Fig 1: Locating Cylinder Head Gasket Rubber Coating (Left)

Courtesy of BMW OF NORTH AMERICA, INC.
