11 72 192 Removing And Installing/Replacing Right Secondary Pipe (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Engine hood in assembly position. Refer to 51 00... SERVICE POSITION OF ENGINE HOOD .
- Disconnect battery ground terminal.
- Release engine wiring harness from electronics box.
- Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF AASSEMBLY COMPARTMENT BULKHEAD .
- Release terminal 30 at battery connection point.

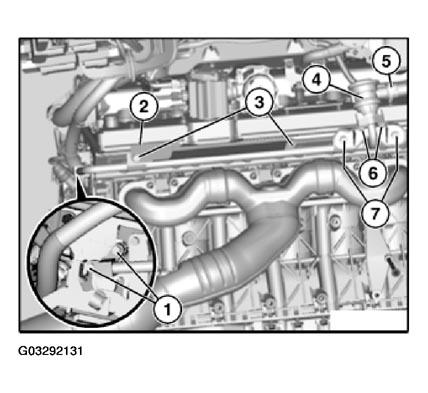

Release screws (3) and remove heat shield (2).
Disconnect air hose (5).
Loosen screws (6).
Remove secondary valve (4).
Loosen screws (7).
Release screws (1) and remove secondary pipe.
Installation:
Fit secondary valve and secondary pipe without gaps.
Assemble engine.
