11 72 000 Removing And Installing/Replacing Air Pump (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove suction filter housing. Refer to 13 71 010 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) INTAKE FILTER HOUSING (N73) .
Remove raw air housing.
Remove underbody protection.
Remove right underbody protection.

Loosen screw (1).

Unlock and detach pressure hose (2).

Remove screw (3).

Unlock and detach air hose (4).

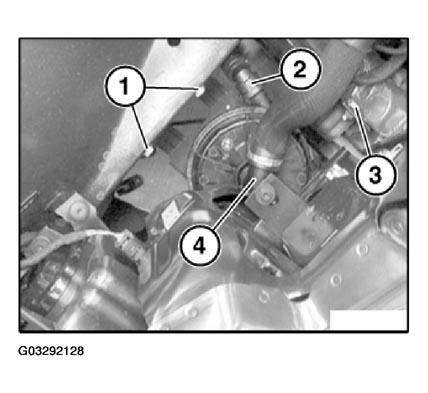

Fig 1: Identifying Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1).

Loosen screws (2).

Remove air pump (3).

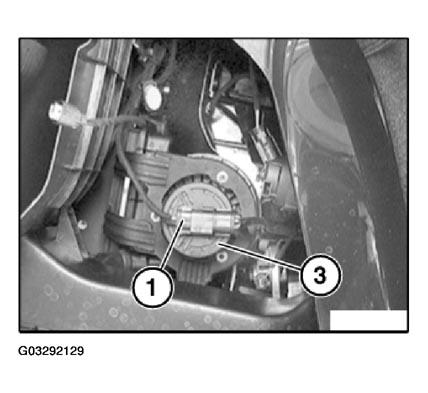

Fig 2: View Of Air Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug (1).

Release nuts and remove holder from air pump.

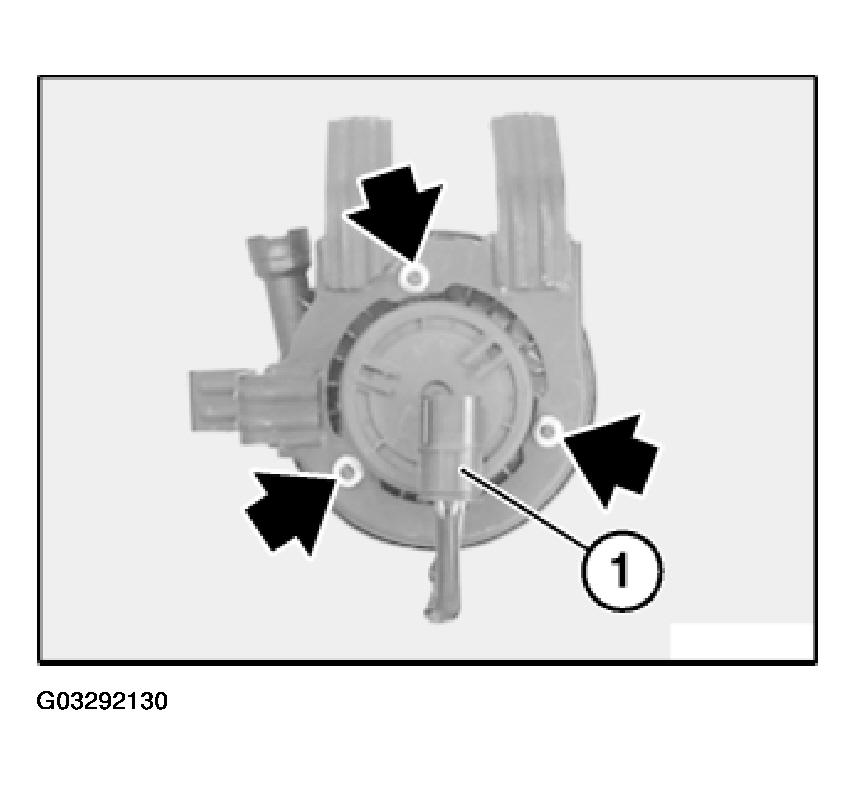

Fig 3: Locating Air Pump Holder Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.
