00 11 500 Checking/Topping Up Fluid Level In Automatic Transmission (GA6HP26Z/6HP32Z)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Use only the approved transmission fluid.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Installation:

Tighten down filler plug using

Hexagon wrench 8 A/F.
Torque wrench.
Socket 8 A/F.

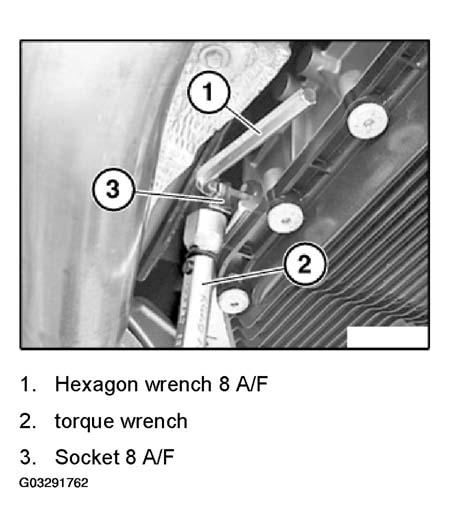

Fig 1: Tightening Filler Plug With Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Topping Up Transmission Fluid After A Repair:

Stand vehicle on a level surface and secure against rolling off.

Undo filler plug (1).

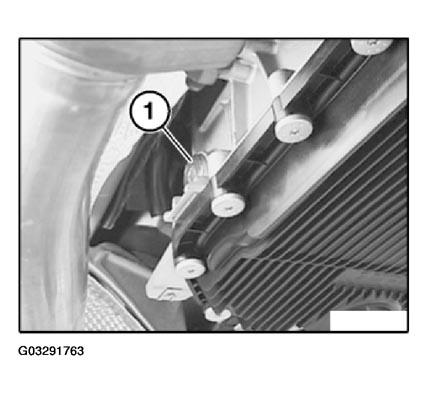

Fig 2: Locating Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Top up transmission fluid until it emerges from filling orifice.

Start engine.

Replenish transmission fluid until it emerges from filling orifice.

Screw in filler plug (1).

Tightening torque: 24 11 7AZ in TORQUE SPECIFICATIONS .

Press brake pedal to floor and shift through gears 1 to 6 several times at idle speed. Then shift to "P" position (Park).

Then check fluid level.

Checking Fluid Level :

Connect BMW Diagnosis and Information System (DIS) or BMW MoDiC to vehicle.
Call up Service functions (drive).
Carry out fluid level check in accordance with instructions.
