00 00 ... Steering Fluid Reservoir: Check Oil Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Visual Inspection And Leak Test:

Check connections, hoses and steering gear for traces of fluid.

Checking Fluid Level:

Check fluid level with engine switched off at expansion tank of power steering/ride-height control system.

If necessary, add hydraulic fluid (refer to OPERATING FLUIDS - STEERING ) up to Max. marking (1).

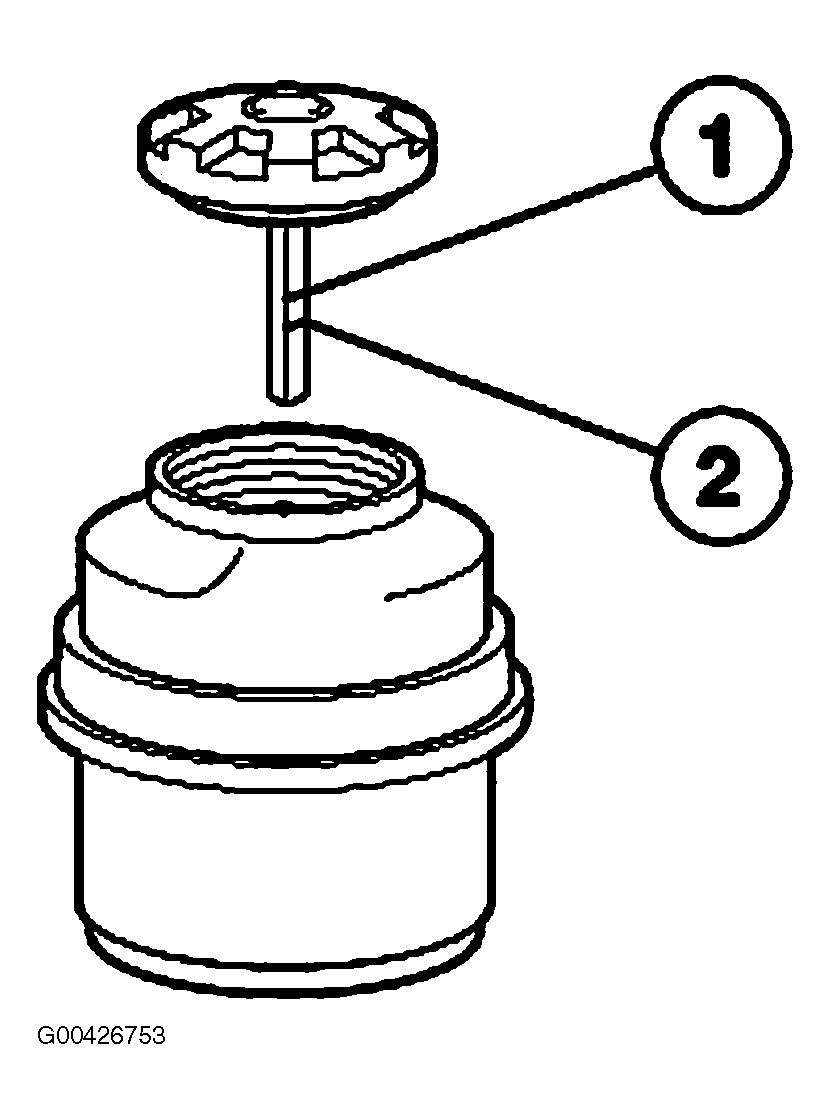

Fig 1: Identifying Min/Max Markings In Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If the fluid level has dropped to the Min. marking (2), you must check the power steering and ride-height control for leaks and issue a separate invoice for this work. It Is Not Enough Merely To Top Up The Fluid .
