61 61 250 Replacing windshield wiper motor (Z3 Roadster, Z3 Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to removal, allow wiper motor to run into rest position (if still possible).

Necessary Preliminary Tasks:

Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove complete bracket for windshield wiper system, refer to 61 61 270 REMOVING AND INSTALLING MOUNTING BRACKET FOR WINDSHIELD WIPER SYSTEM COMPLETE WITH MOTOR (Z3 ROADSTER, Z3 COUPE, M ROADSTER, M COUPE) .

Unfasten nut on motor crank and pry off crank from motor.

NOTE: Drive rods remain fitted, illustrated without drive rods for sake of clarity.

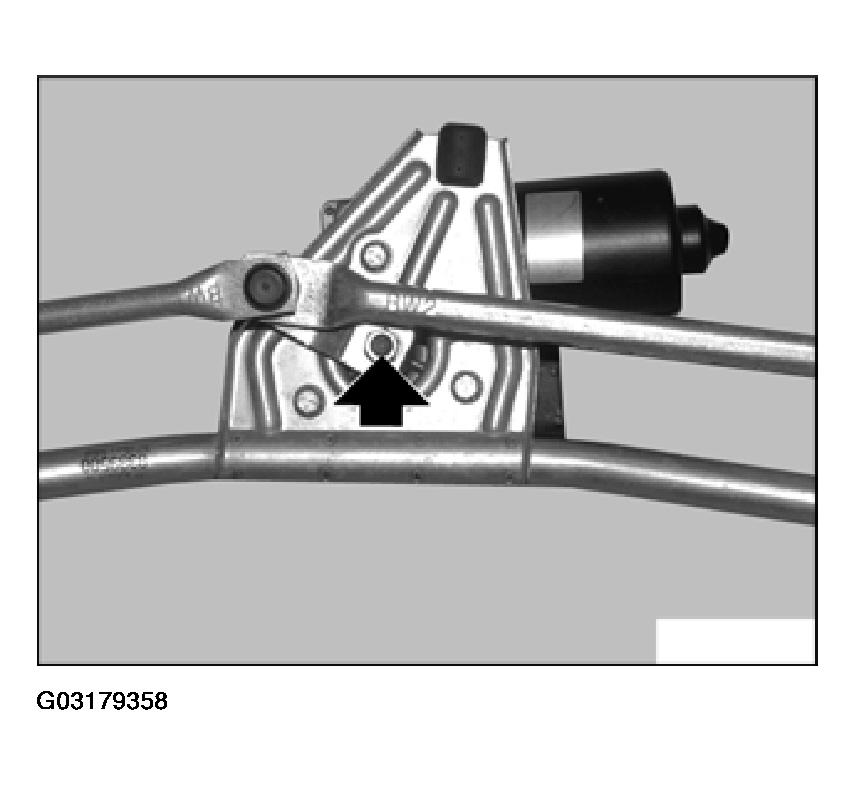

Fig 1: Prying Off Crank From Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove wiper motor from console.

Tightening torque, 61 61 1AZ. Refer to 61 61 WINDSHIELD WIPERS.

Installation:

Replace screws.

Screw new wiper motor onto wiper bracket, connect to vehicle wiring harness and run into rest position.

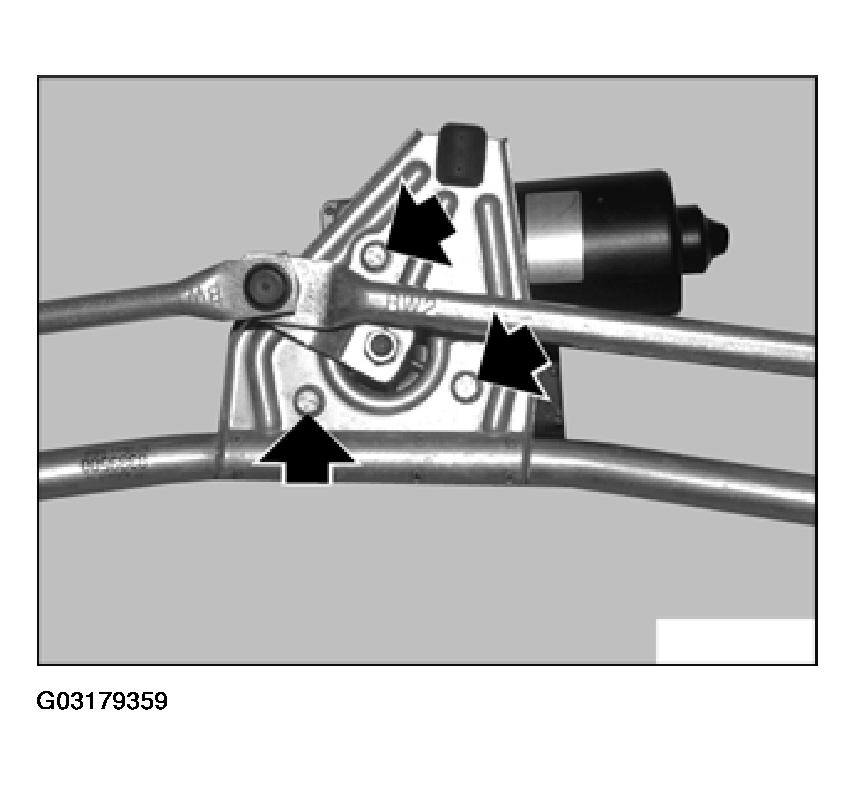

Fig 2: Removing Wiper Motor From Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position motor crank on shaft so that it forms a line with drive rod on passenger side.

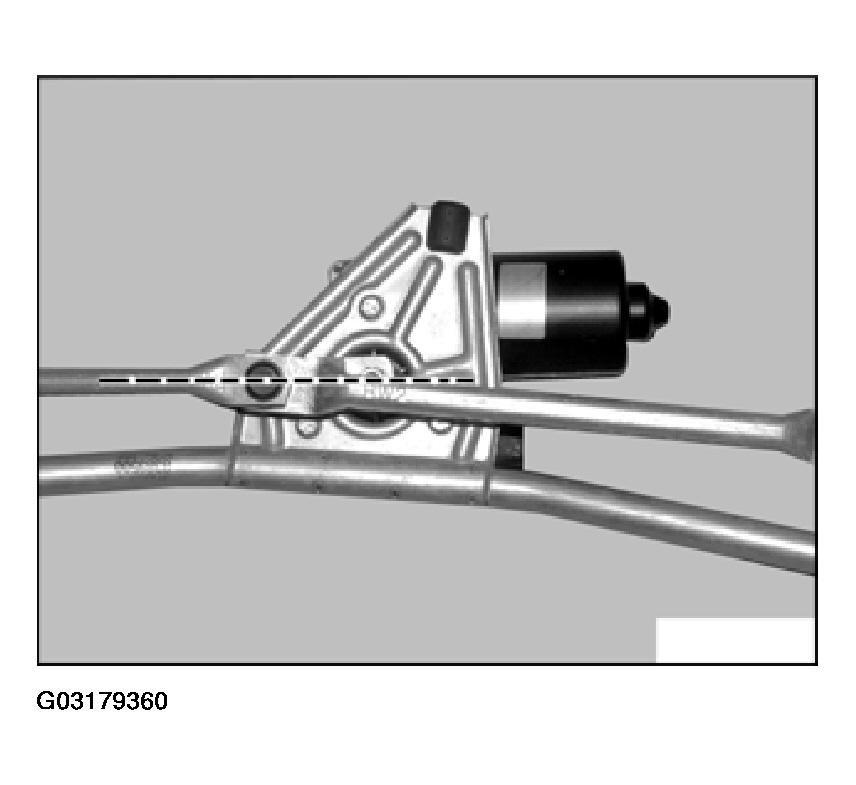

Fig 3: Positioning Motor Crank On Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Turn motor crank at nut out of rest position slightly, then grip firmly and screw down.

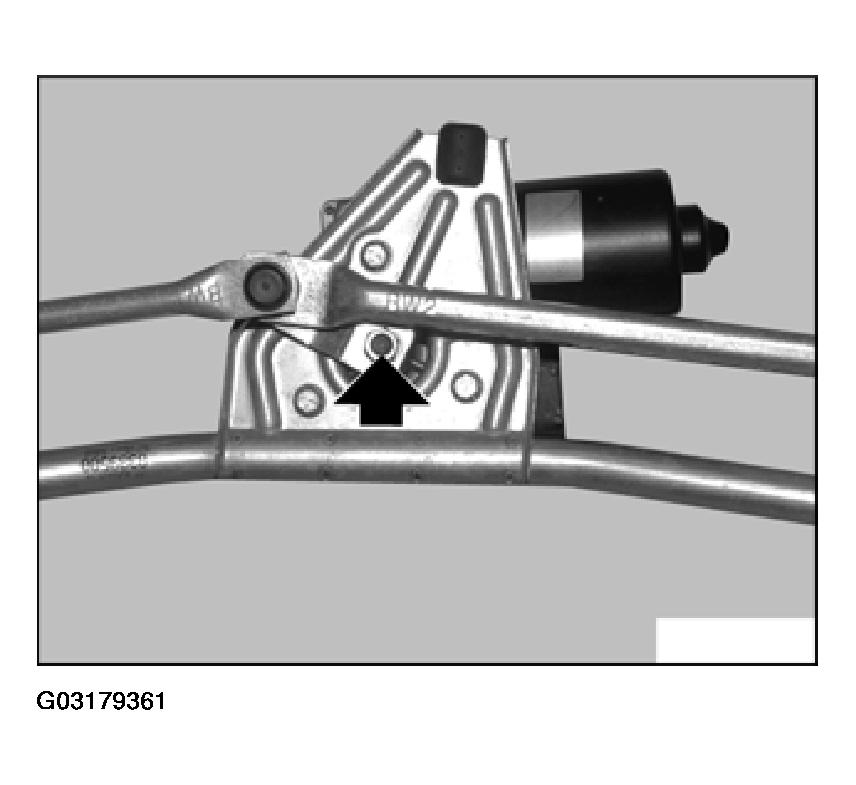

Fig 4: Turning Motor Crank At Nut Out Of Rest Position

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 61 61 4AZ. Refer to 61 61 WINDSHIELD WIPERS .
