61 61 100 Removing and installing/replacing both windshield wiper arms

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Detach caps.

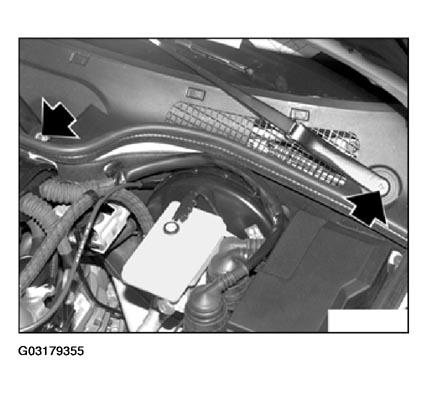

Unscrew left and right nuts.

Installation:

Tightening torque, 61 61 10AZ. Refer to 61 61 WINDSHIELD WIPERS .

Fig 1: Unscrewing Left And Right Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

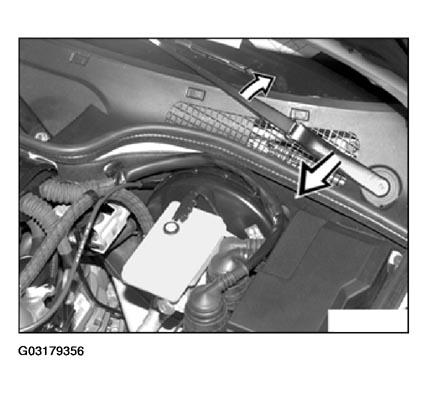

Fold up wiper arms up to end position and detach from drive shaft.

Fig 2: Detaching Wiper Arms From Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

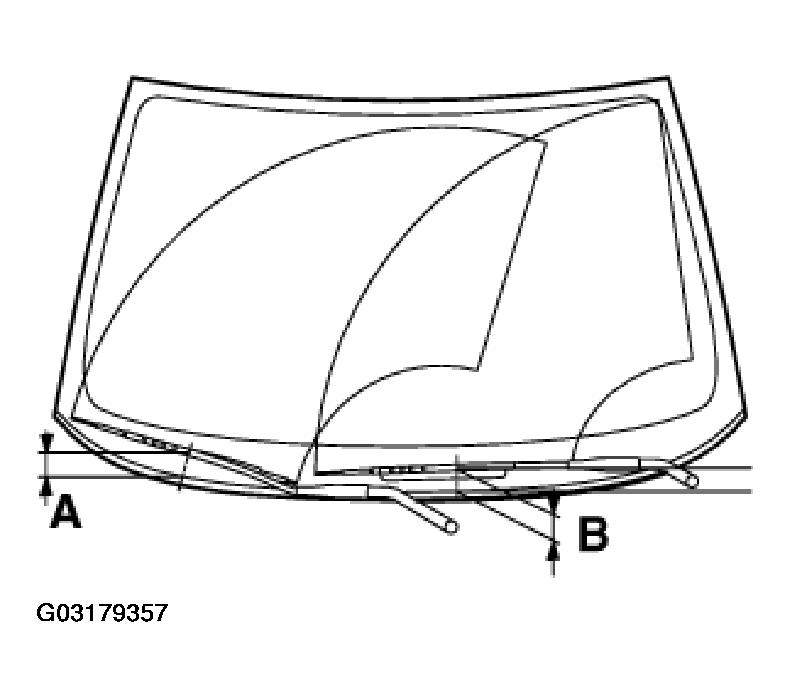

Adjusting dimensions of wiper arms:

Reference points are the mountings of the wiper blades on the wiper arms to the sealing lip of the cowl panel.

A = 45 mm.

B = 25 mm.

Fig 3: Adjusting Dimensions Of Wiper Arms

Courtesy of BMW OF NORTH AMERICA, INC.
