61 13 .. Unlocking and disconnecting different plug connections

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

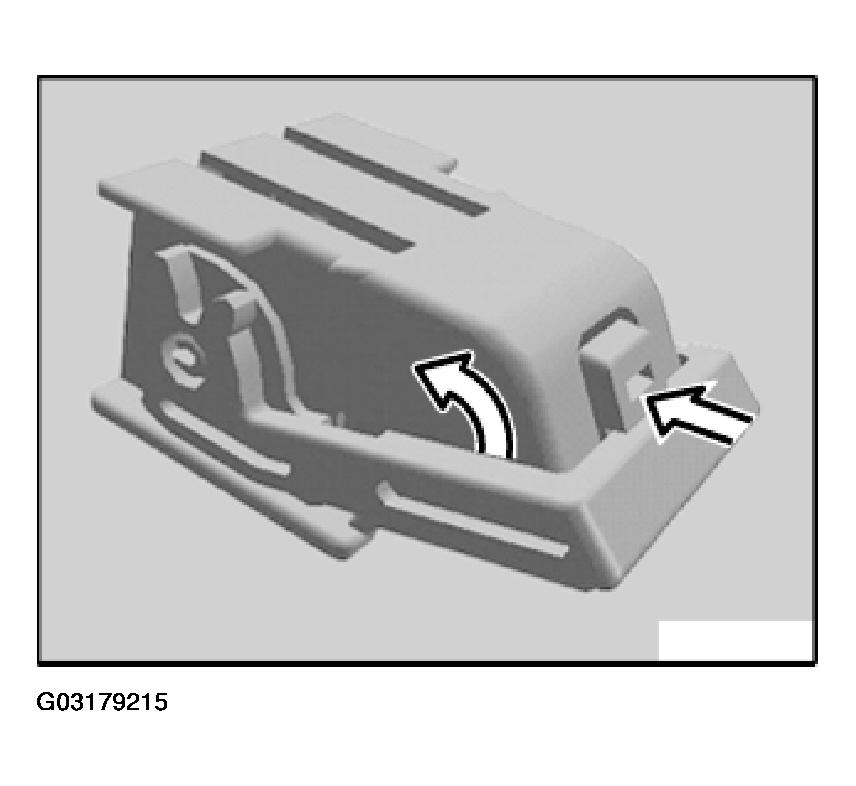

Press lock and open clip in direction of arrow.

Fig 1: Pressing Lock And Open Clip

G03179215

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

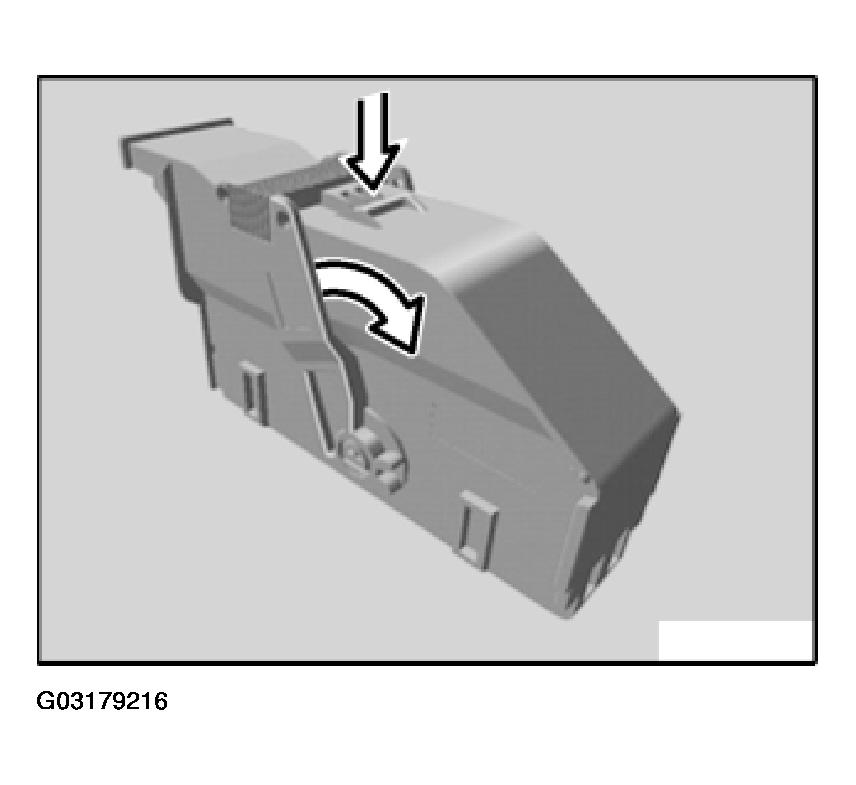

Press lock and open clip in direction of arrow.

Fig 2: Pressing Lock And Open Clip

G03179216

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

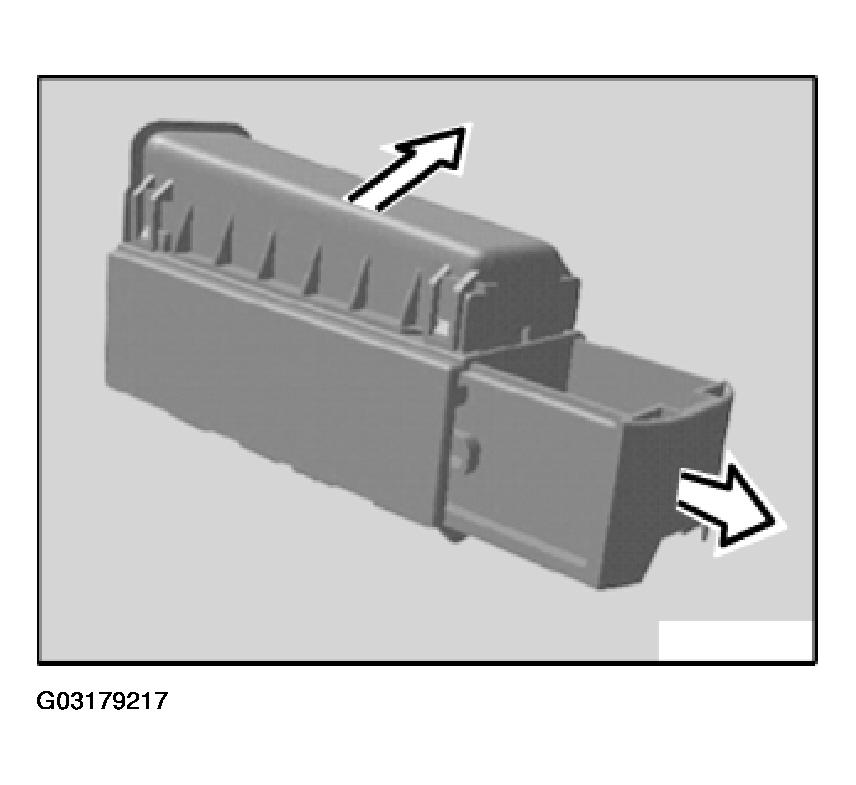

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Opening Clip And Disconnecting Plug Connection

G03179217

Courtesy of BMW OF NORTH AMERICA, INC.

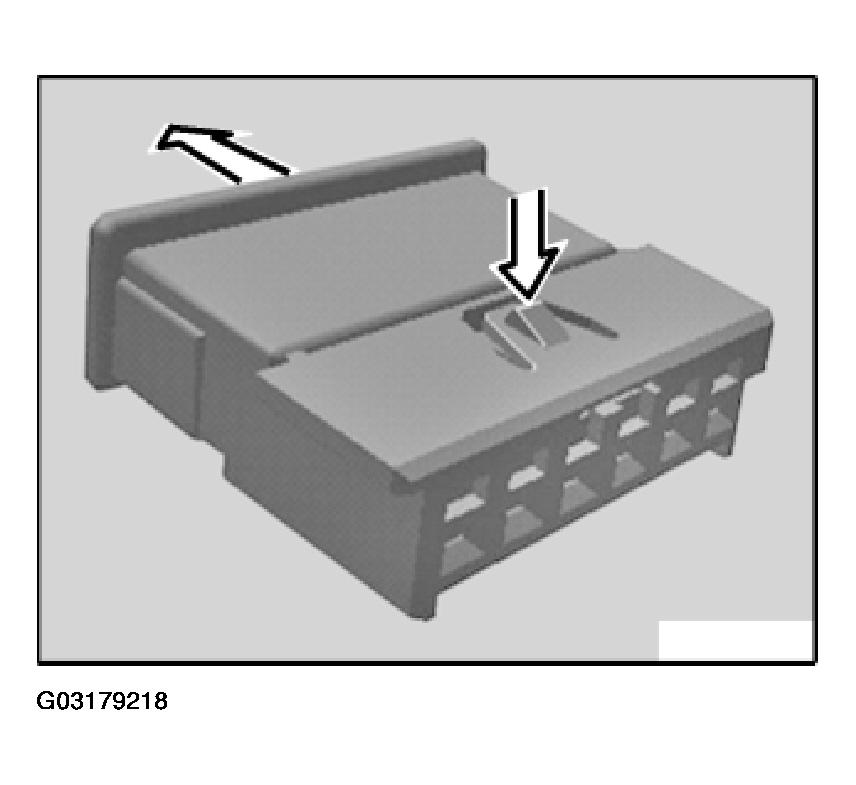

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock And Disconnecting Plug Connection

G03179218

Courtesy of BMW OF NORTH AMERICA, INC.

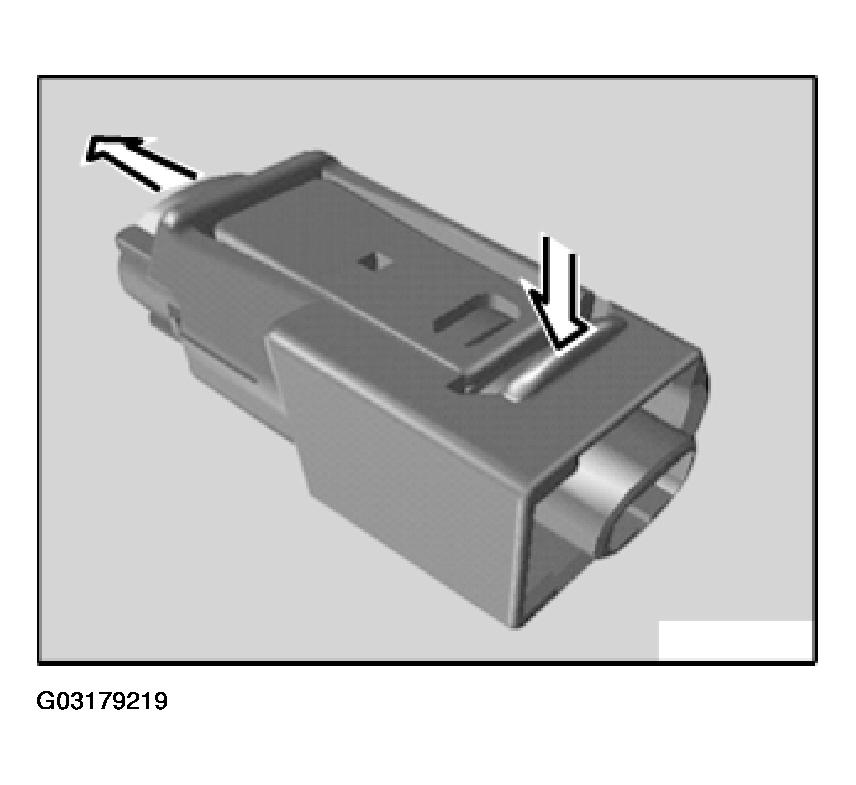

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnecting Plug Connection

G03179219

Courtesy of BMW OF NORTH AMERICA, INC.

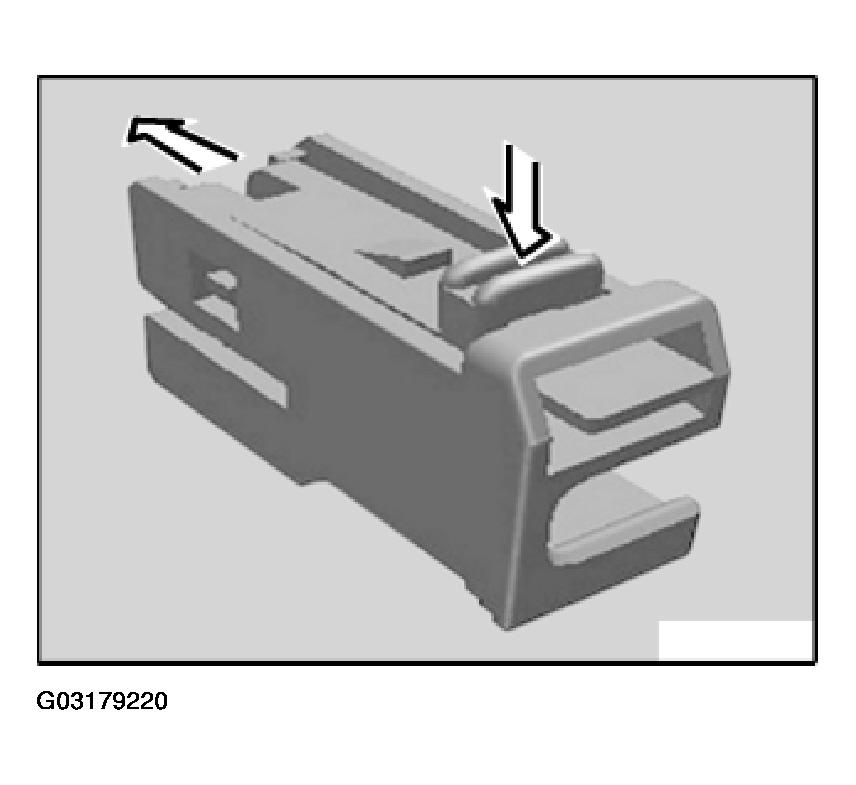

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock And Disconnecting Plug Connection

G03179220

Courtesy of BMW OF NORTH AMERICA, INC.

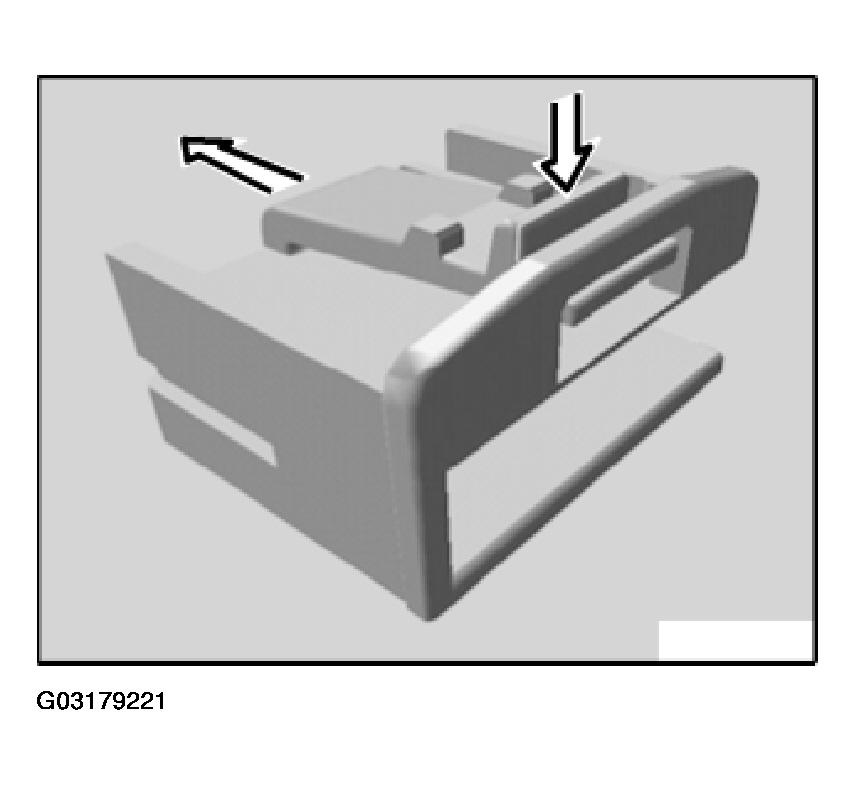

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnecting Plug Connection

G03179221

Courtesy of BMW OF NORTH AMERICA, INC.

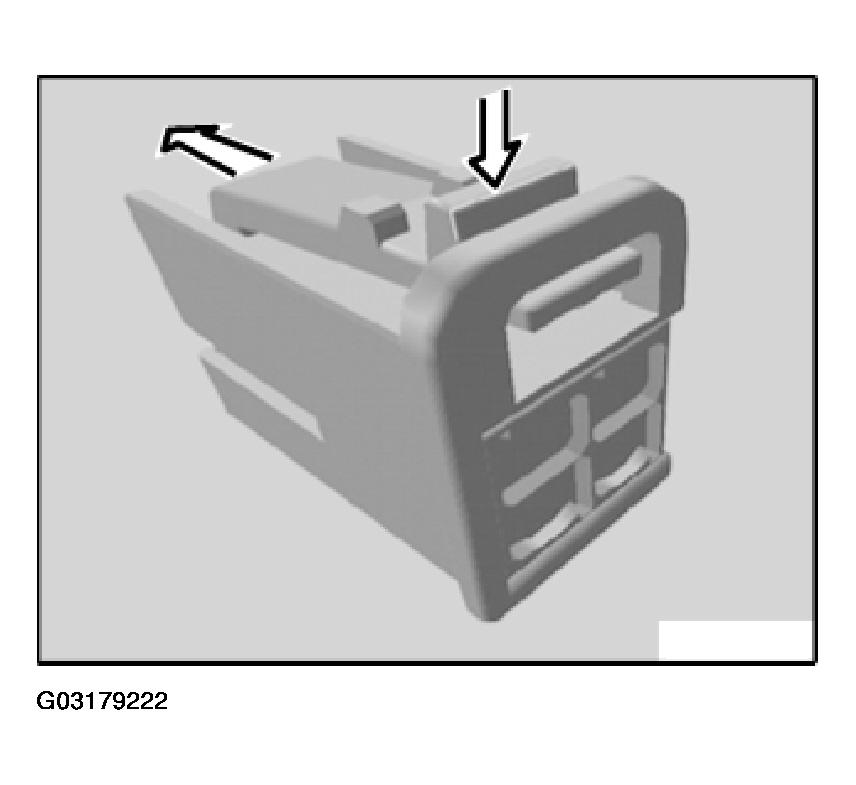

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock And Disconnecting Plug Connection

G03179222

Courtesy of BMW OF NORTH AMERICA, INC.

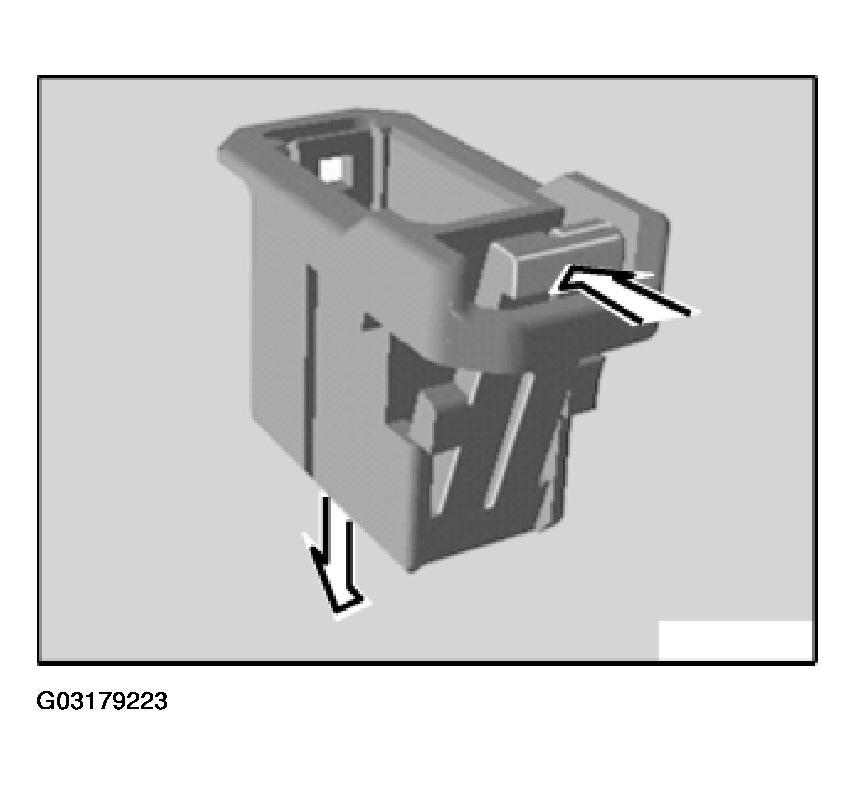

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock And Disconnecting Plug Connection

G03179223

Courtesy of BMW OF NORTH AMERICA, INC.
