61 31 300 Replacing brake-light-test switch

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Brake-light-test switch is in same housing as brake-light switch.

For removal and adjustment, refer to 61 31 310 REPLACING BRAKE-LIGHT SWITCH  .

Can be recognized on 4-pin connector.

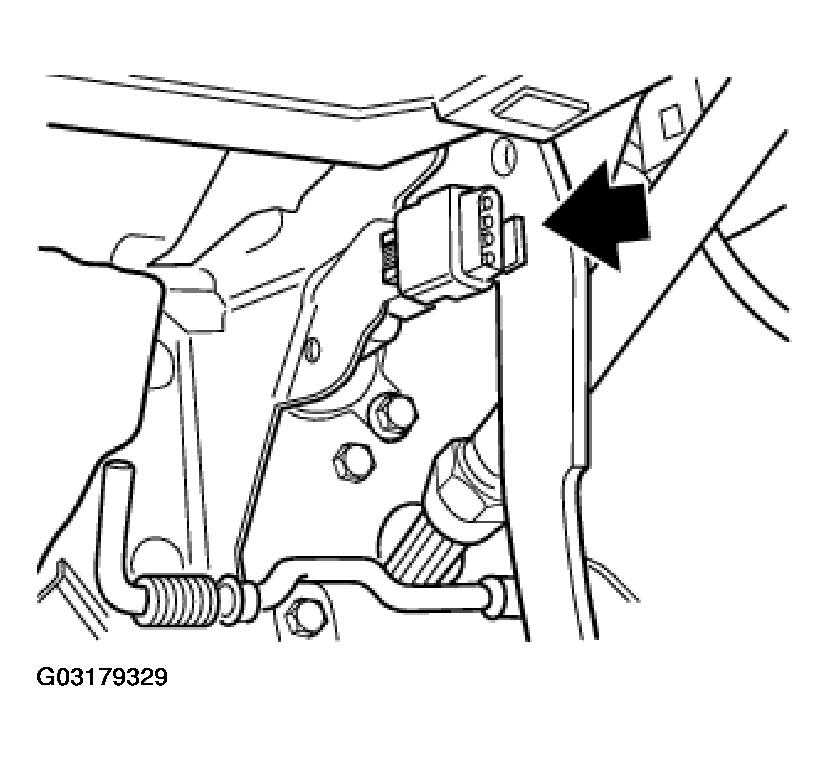

Fig 1: Replacing Brake-Light-Test Switch
G03179329Courtesy of BMW OF NORTH AMERICA, INC.
