61 31 040 Replacing windshield wiper switch

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel to straight-ahead position.

Remove steering wheel, refer to STEERING WHEEL .

Remove instrument panelling at bottom left.

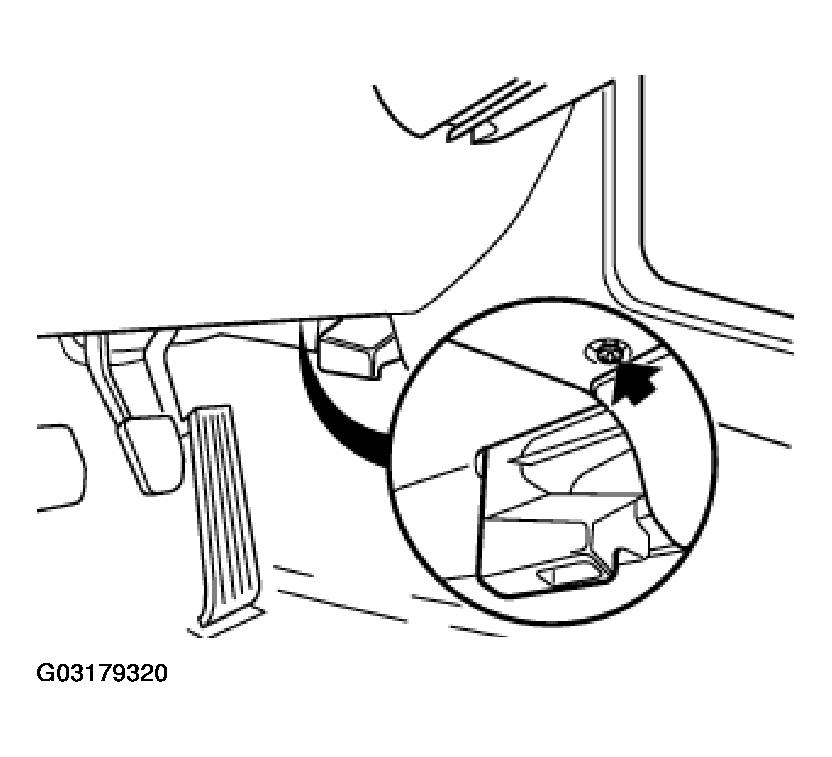

Fig 1: Removing Instrument Panelling At Bottom Left

G03179320

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts.

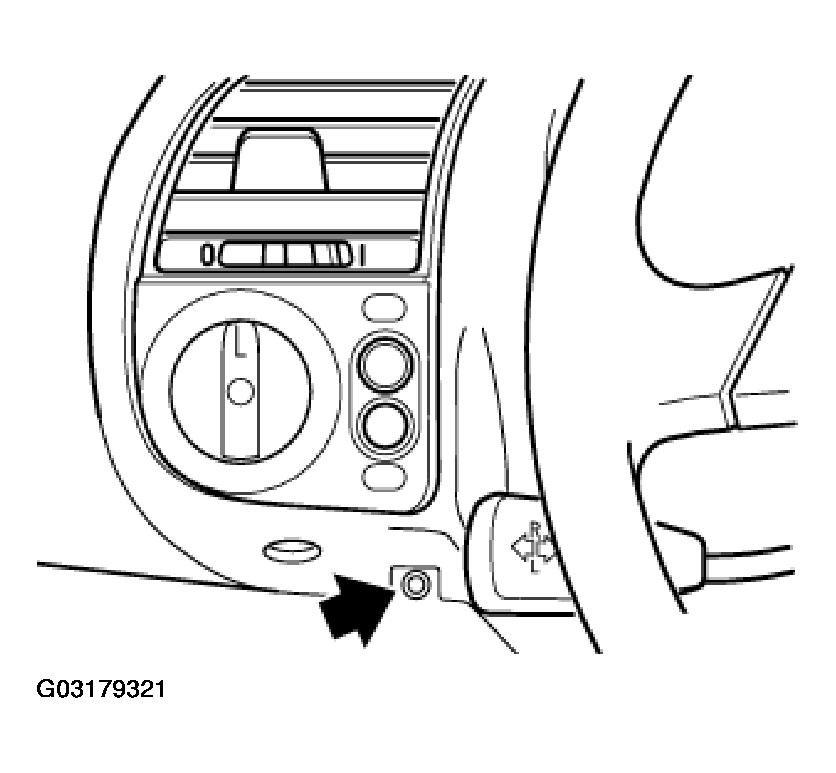

Fig 2: Unscrewing Bolts

G03179321

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bottom trim panel to the side out of the clips.

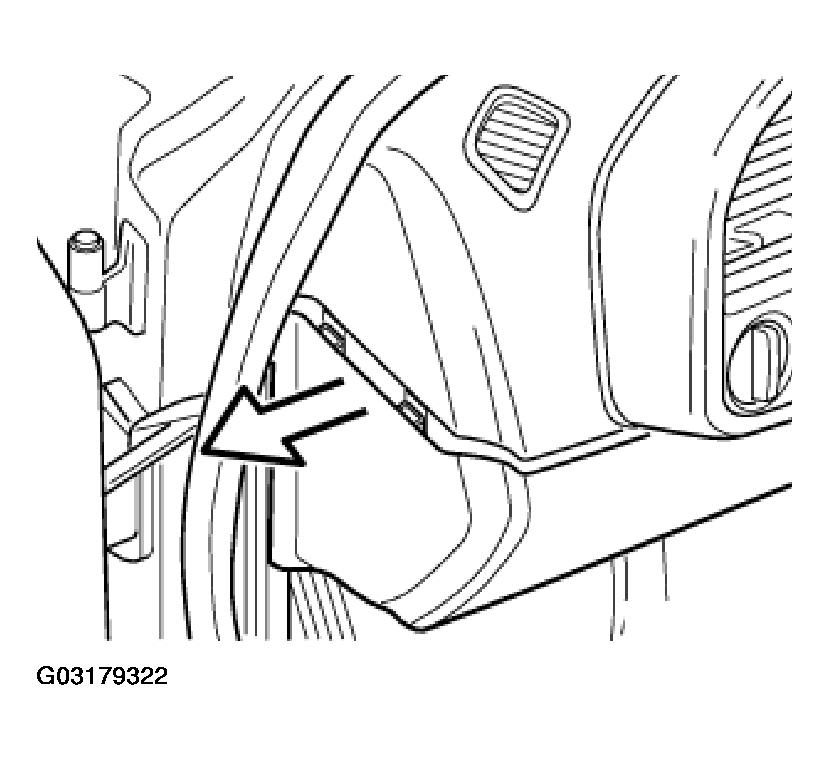

Fig 3: Pulling Bottom Trim Panel To Side Out Of Clips

G03179322

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and take off lower section of steering-column panelling.

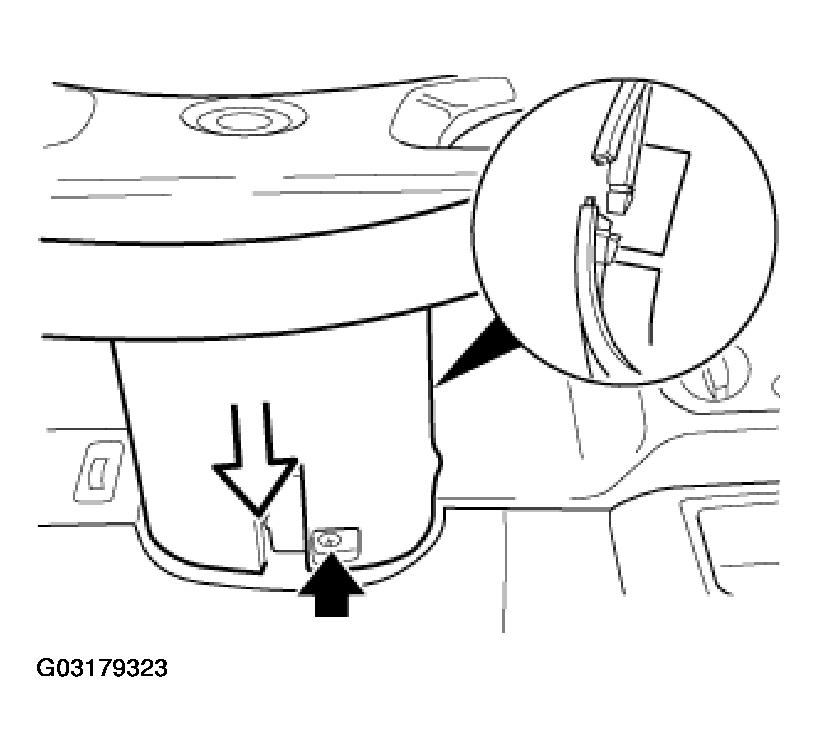

Fig 4: Removing Screw And Taking Off Lower Section Of Steering-Column Panelling

G03179323

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw for holder of steering-column stalk.

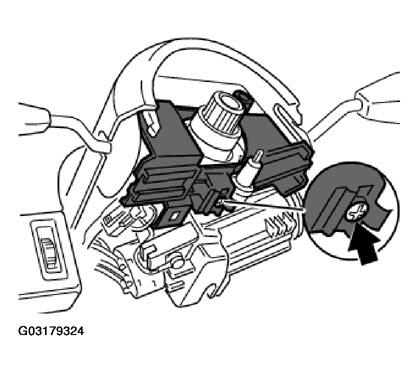

Fig 5: Remove Screw For Holder Of Steering-Column Stalk

G03179324

Courtesy of BMW OF NORTH AMERICA, INC.

Lever off holder in downwards direction using a screwdriver.

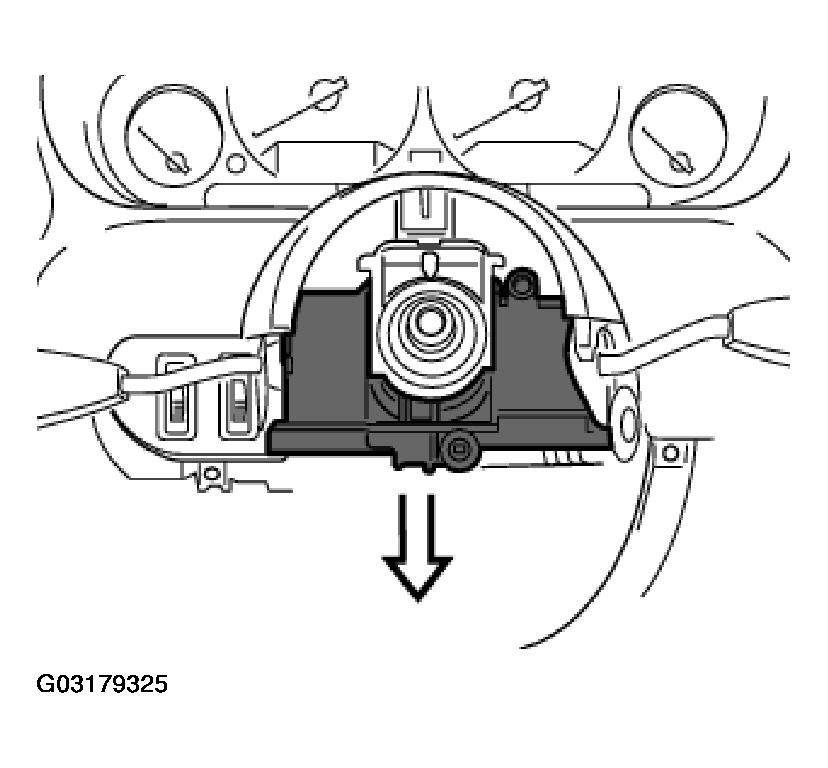

Fig 6: Levering Off Holder In Downwards Direction Using Screwdriver

G03179325

Courtesy of BMW OF NORTH AMERICA, INC.

Compress retainers on both sides and pull out lever.

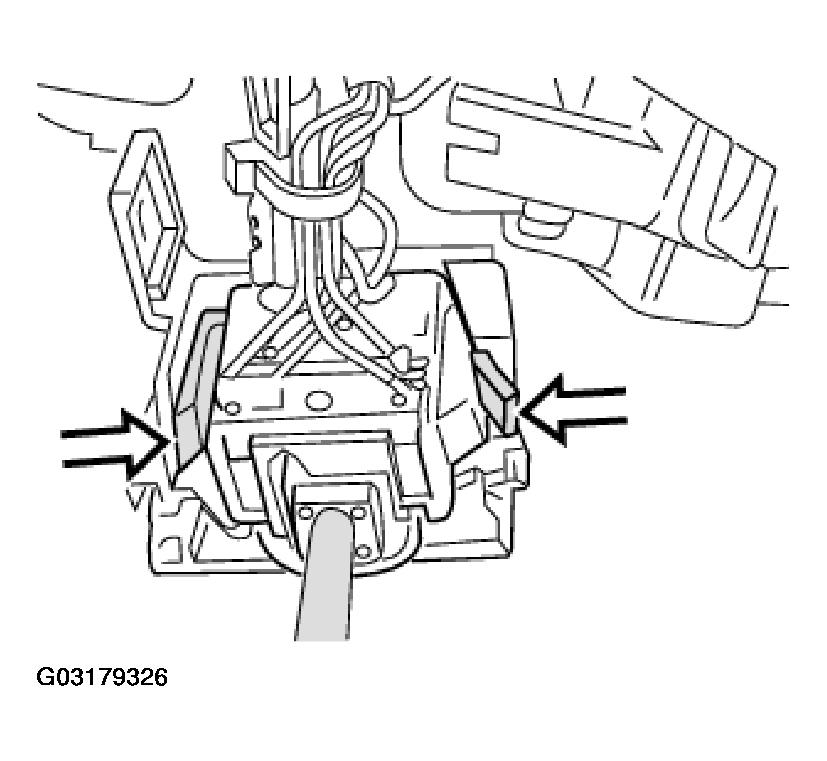

Fig 7: Compressing Retainers On Both Sides And Pulling Out Lever

G03179326

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cable straps on steering column.

Disconnect connector.

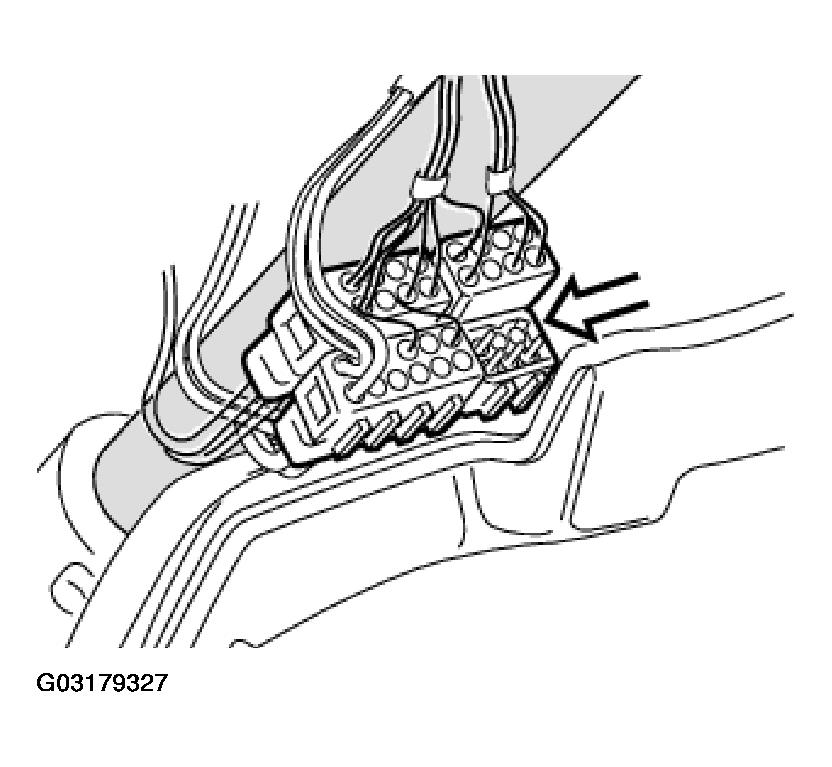

Fig 8: Disconnecting Connector

G03179327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Be careful not to damage self-cancelling cams of turn-indicator lever. Turn turn-indicator lever to middle position before mounting.
