61 31 028 Replacing light switch (Z3 roadster, Z3 coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip button cover.

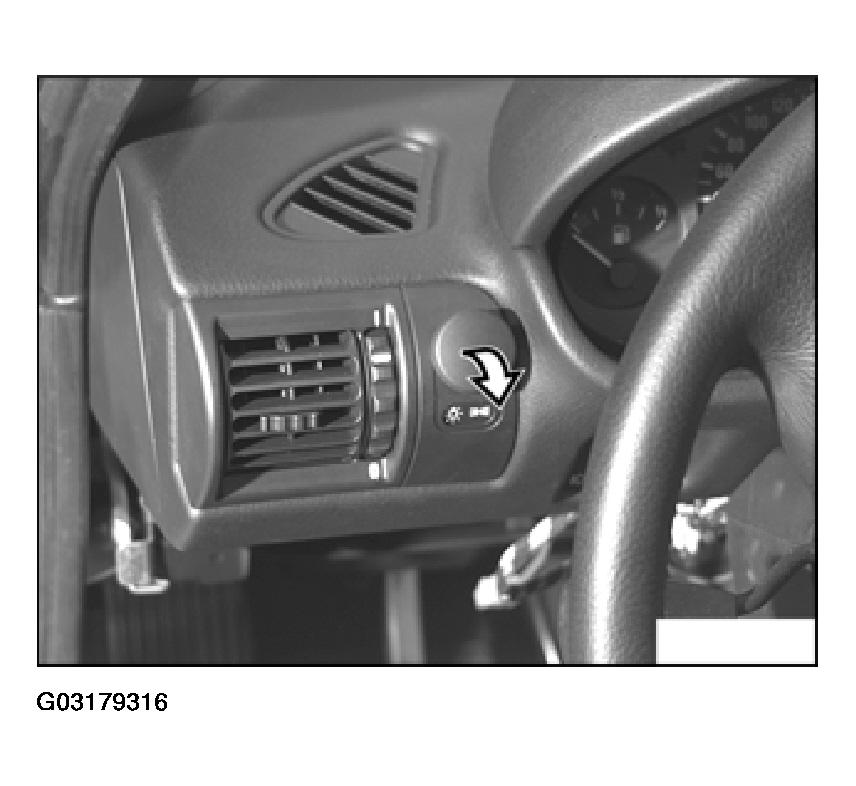

Fig 1: Unclipping Button Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten lock nut and twist button to remove.

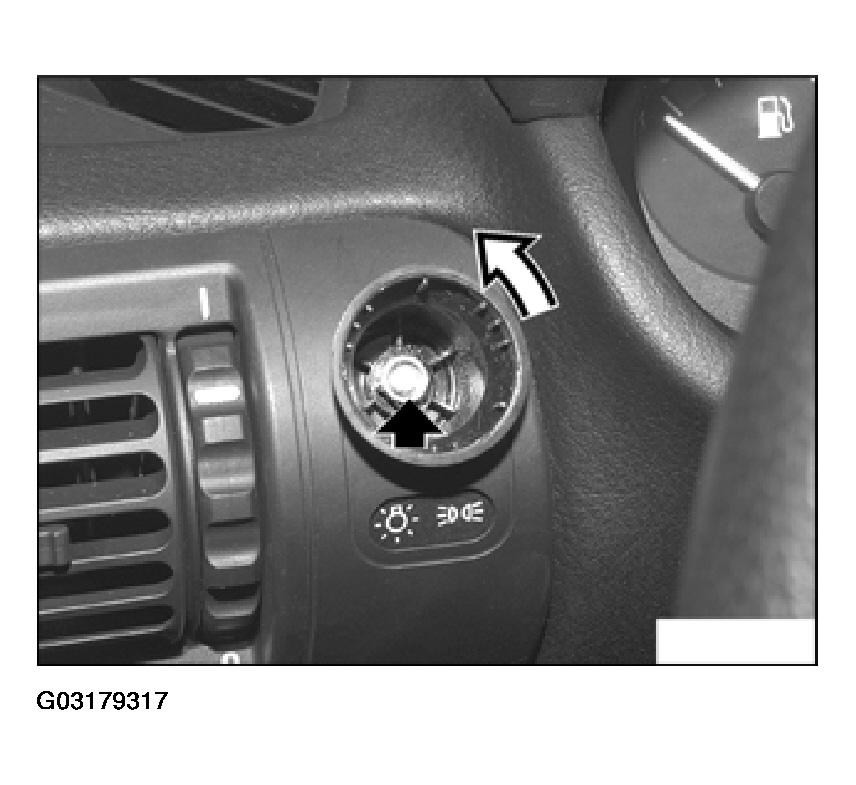

Fig 2: Unfastening Lock Nut And Twisting Button To Remove

Courtesy of BMW OF NORTH AMERICA, INC.

Press together retaining clips with special tool 61 3 100 and slide backwards to remove.

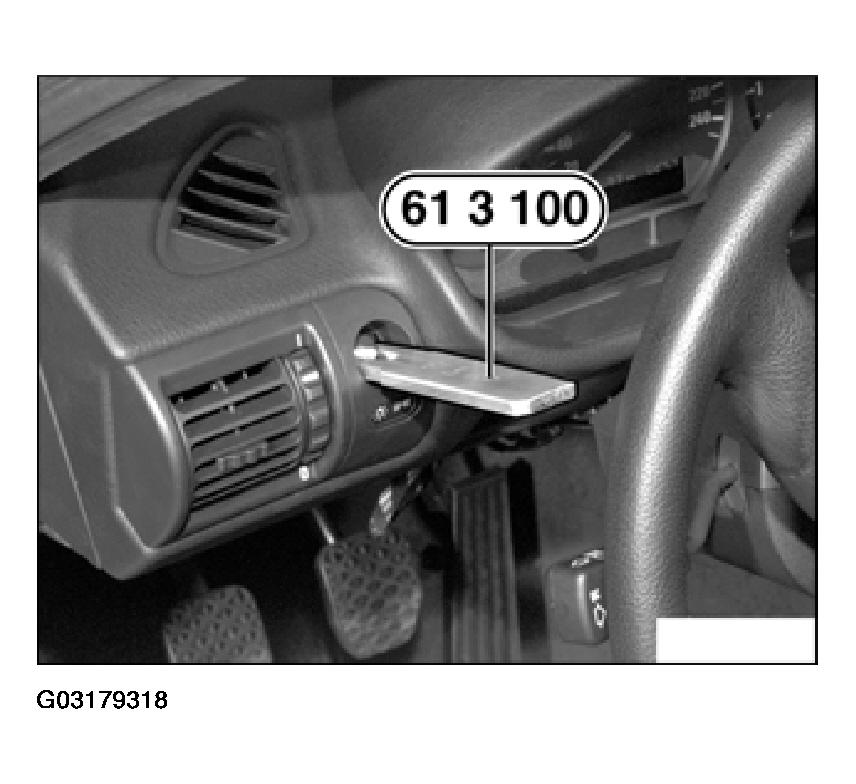

Fig 3: Pressing Together Retaining Clips With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

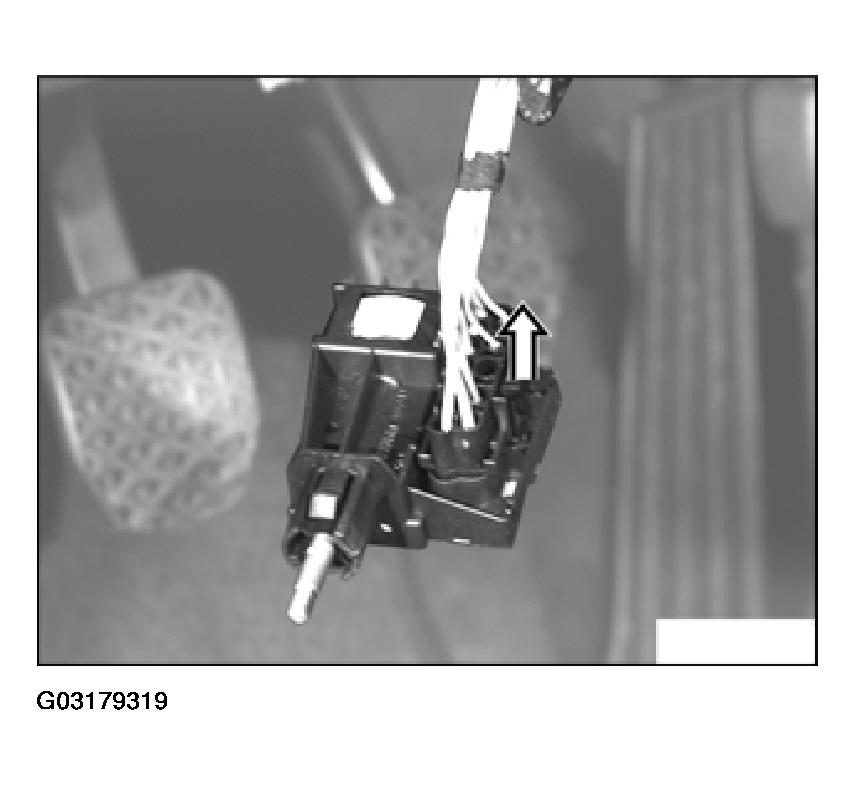

Fig 4: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
