61 31 020 Removing and installing/replacing ignition starter switch

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew screw.

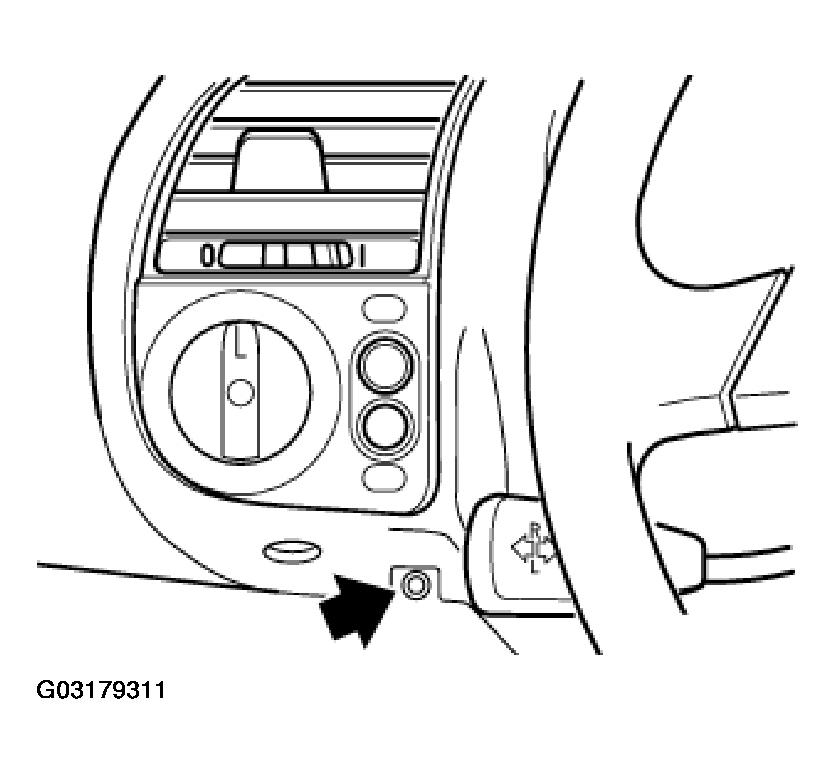

Fig 1: Unscrewing Bottom Trim Panel Screw (Front)

G03179311

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

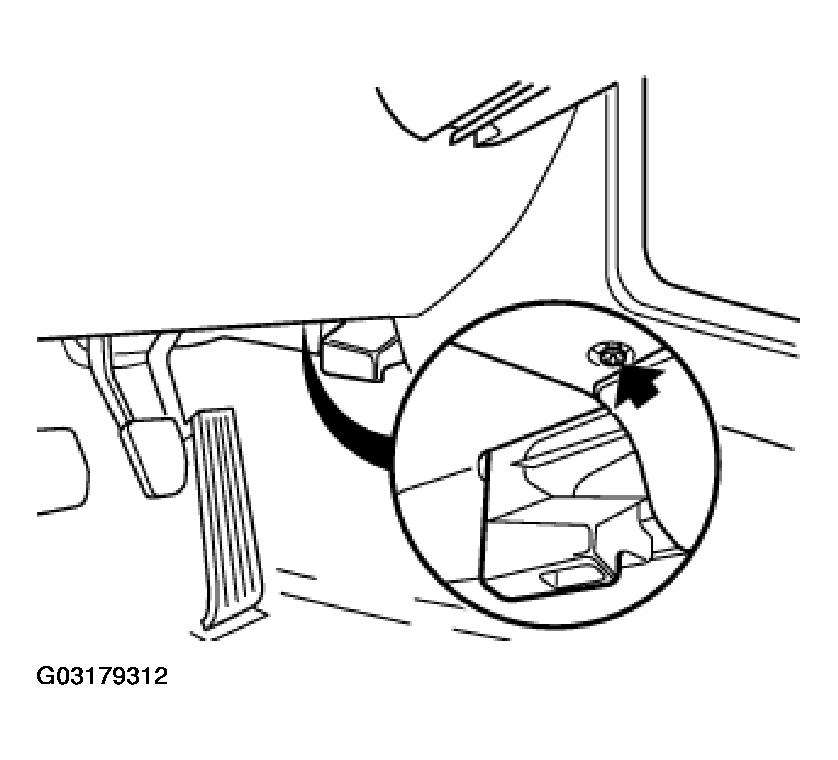

Fig 2: Unscrewing Bottom Trim Panel Screw (Bottom)

G03179312

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bottom trim panel to the side out of the clips.

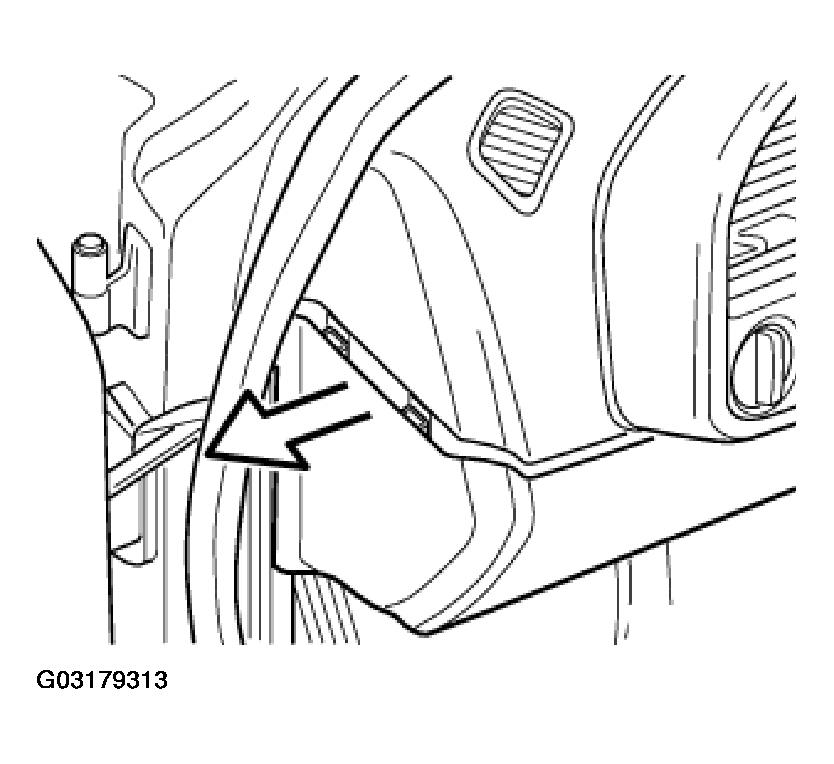

Fig 3: Pulling Bottom Trim Panel To Side Out Of Clips

G03179313

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and take off lower section of steering-column panelling.

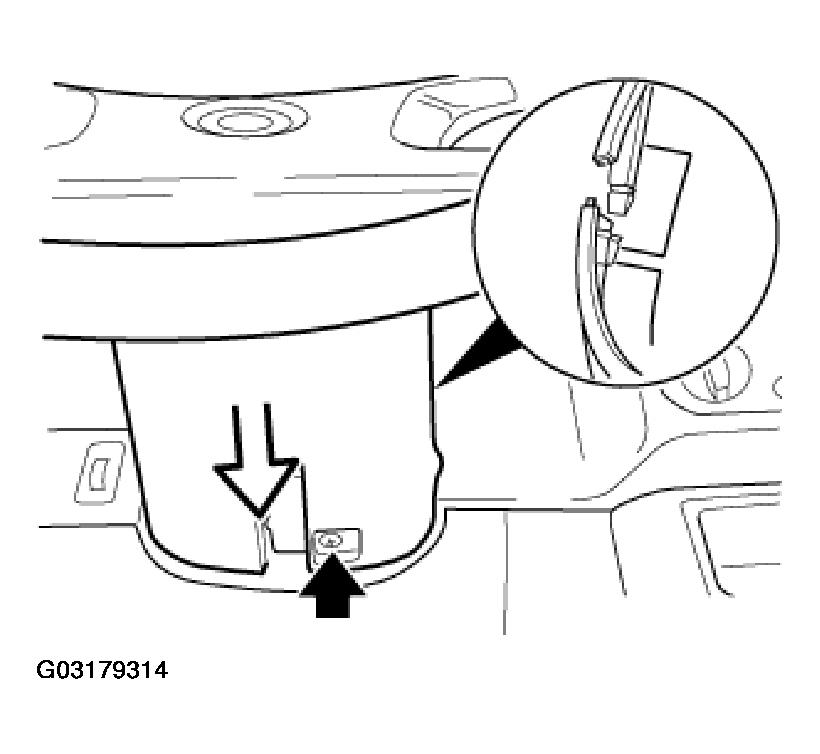

Fig 4: Removing Screw And Taking Off Lower Section Of Steering-Column Panelling

G03179314

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew headless screws on both sides, pull out switch.

Disconnect plug connection.

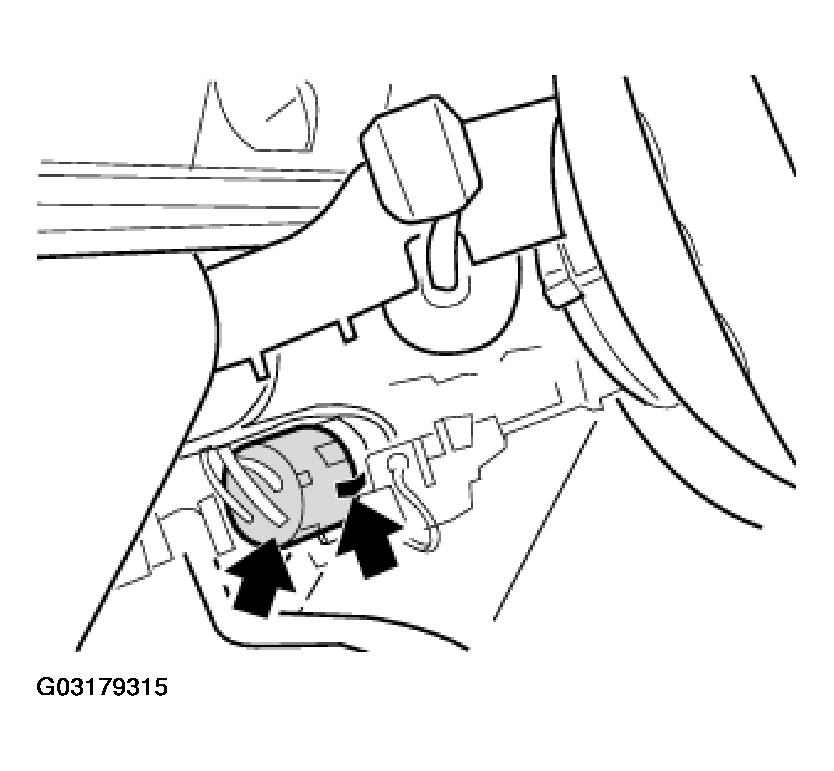

Fig 5: Disconnecting Plug Connection

G03179315

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check position of ignition-start switch in relation to steering-wheel lock.

Check position of turn-indicator lever in relation to steering wheel.

Secure headless screws with varnish.

CAUTION: After installation, carry out mechanical test (lock cylinder) and electric operational check (e.g ignition, radio, etc.)
