61 31 016 Removing and installing / replacing dip switch for direction of travel

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel to straight-ahead position.

Remove steering wheel, refer to STEERING WHEEL .

Remove instrument paneling at bottom left.

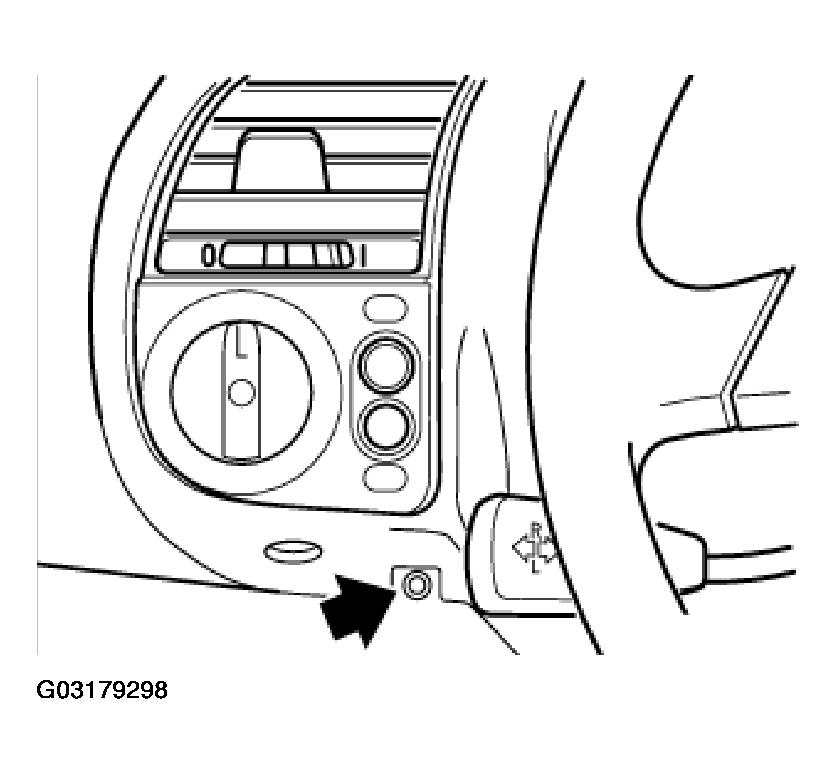

Fig 1: Removing Instrument Paneling At Bottom Left

G03179298

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

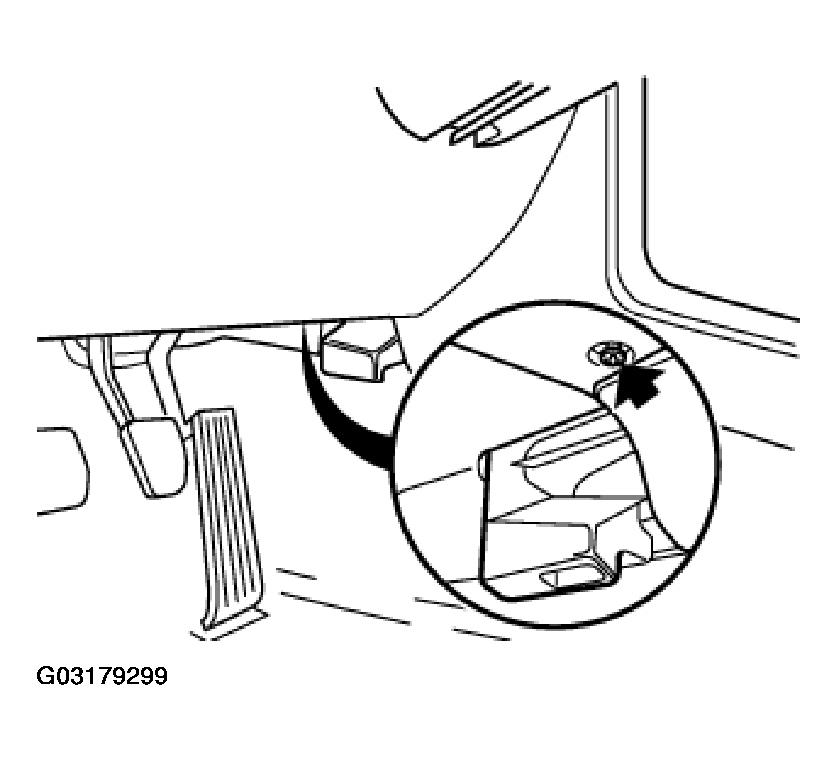

Fig 2: Unscrewing Bottom Trim Panel Screw (Bottom)

G03179299

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bottom trim panel to the side out of the clips.

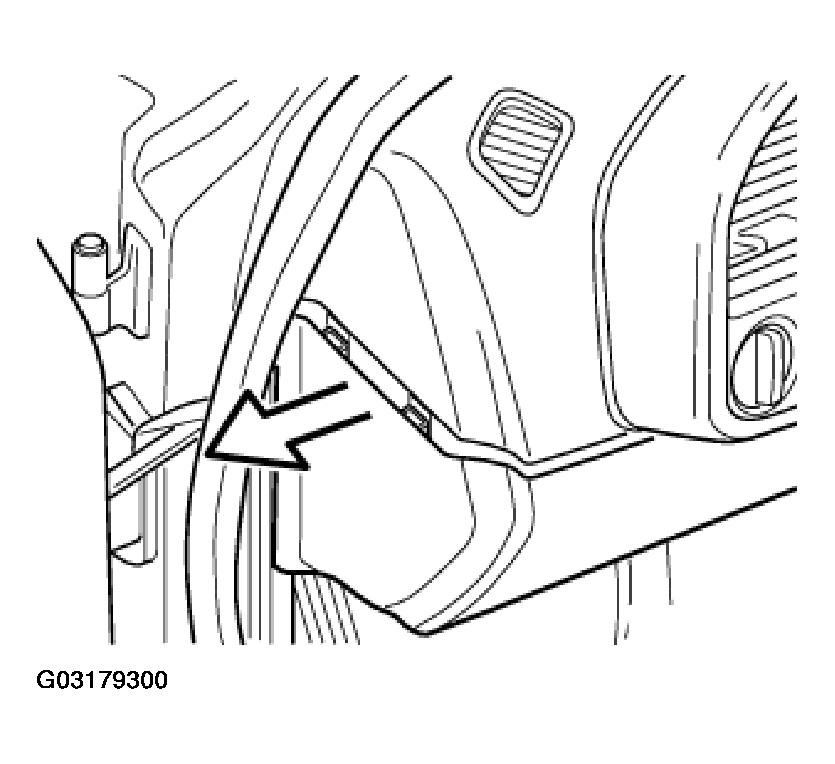

Fig 3: Pulling Bottom Trim Panel To Side Out Of Clips

G03179300

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and take off lower section of steering-column paneling.

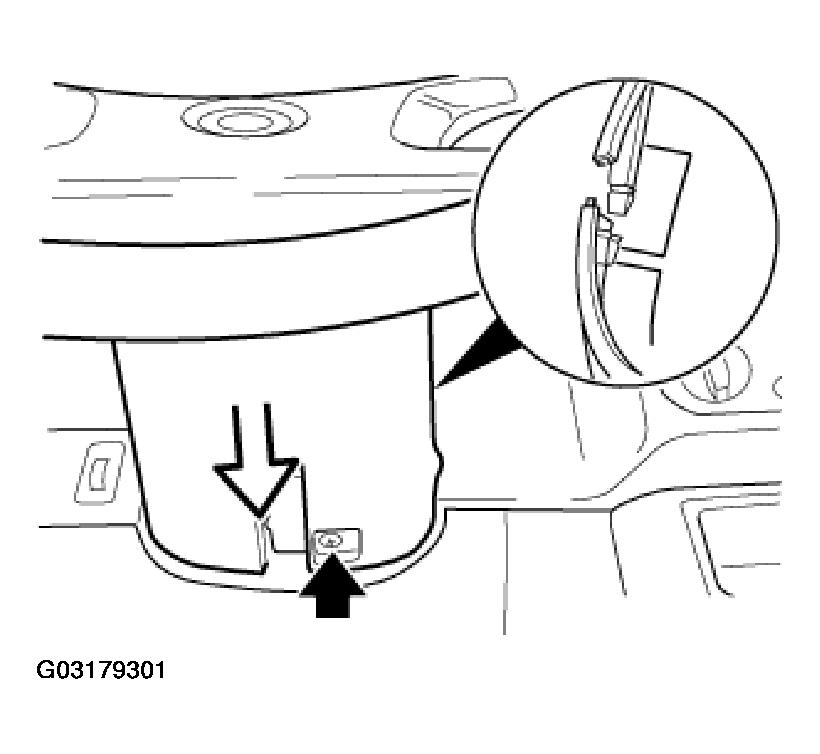

Fig 4: Removing Screw And Taking Off Lower Section Of Steering-Column Panelling

G03179301

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw for holder of steering-column stalk.

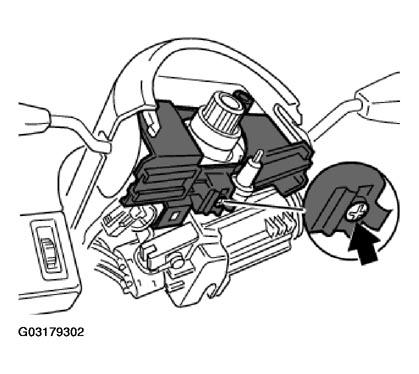

Fig 5: Removing Screw For Holder Of Steering-Column Stalk

G03179302

Courtesy of BMW OF NORTH AMERICA, INC.

Lever off holder in downwards direction using a screwdriver.

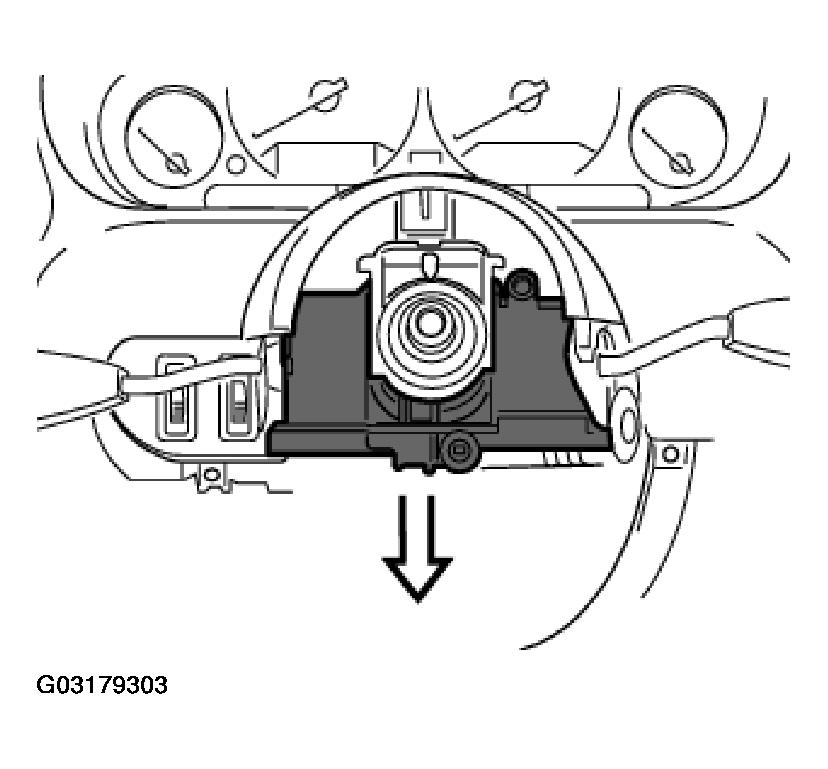

Fig 6: Levering Off Holder In Downwards Direction Using Screwdriver

G03179303

Courtesy of BMW OF NORTH AMERICA, INC.

Compress retainers on both sides and pull out lever.

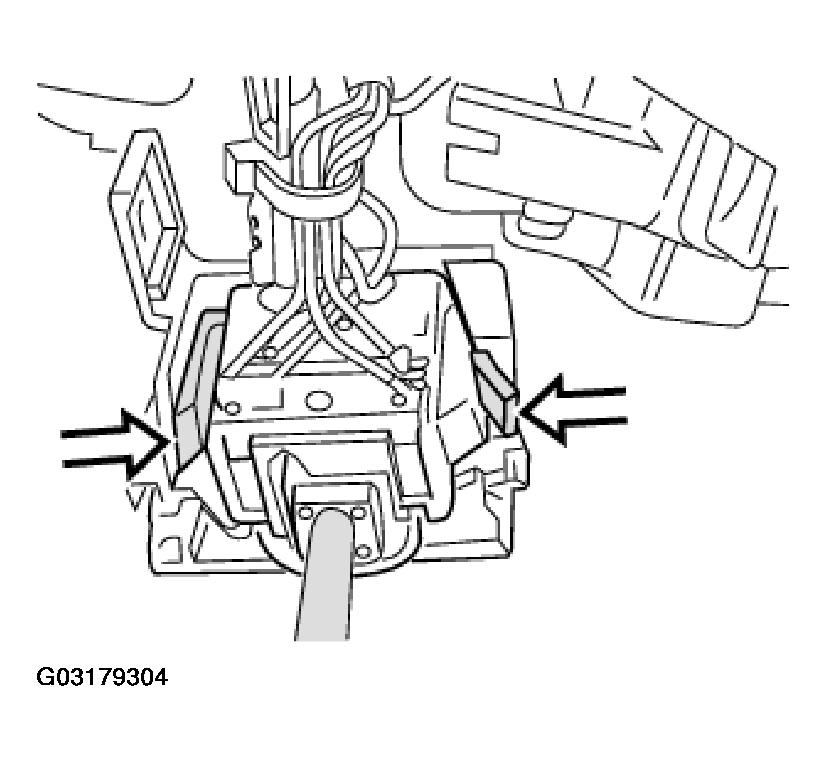

Fig 7: Compressing Retainers On Both Sides And Pulling Out Lever

G03179304

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cable straps on steering column.

Disconnect plug connection.

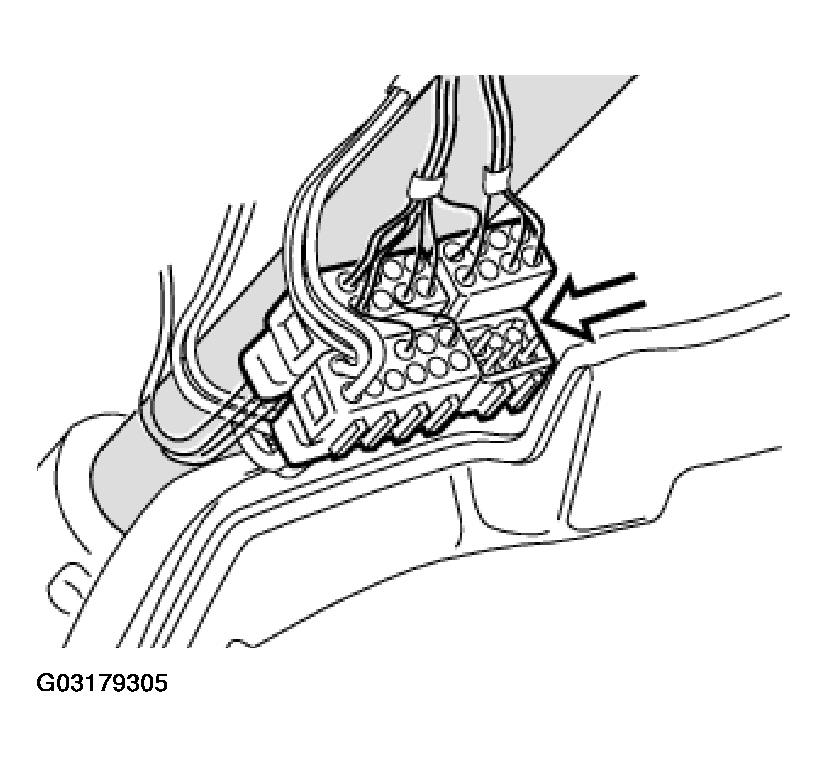

Fig 8: Disconnecting Plug Connection

G03179305

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage self-cancelling cam of turn-indicator lever.

Move turn-indicator lever to middle position, then install.
