61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument panelling at bottom left.

Release screws.

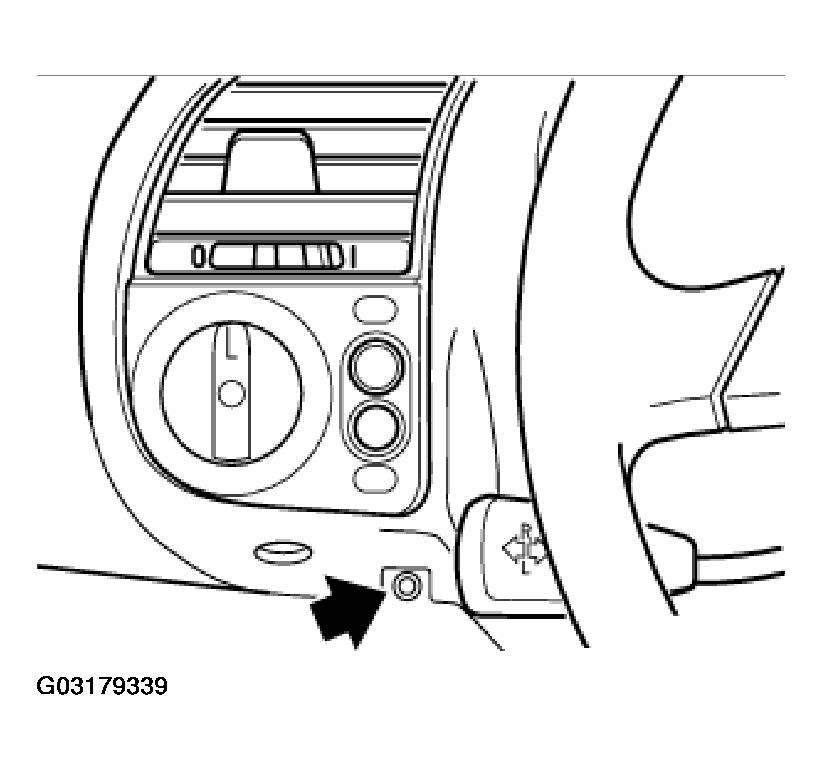

Fig 1: Removing Instrument Panelling At Bottom Left

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

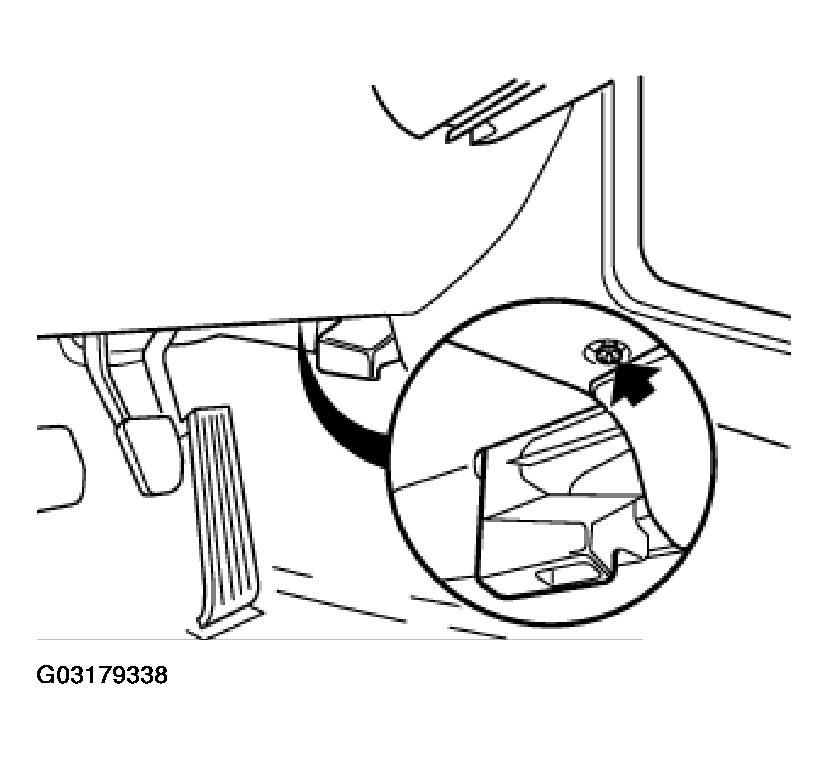

Fig 2: Unscrewing Bottom Trim Panel Screw (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull panelling to side out of clips.

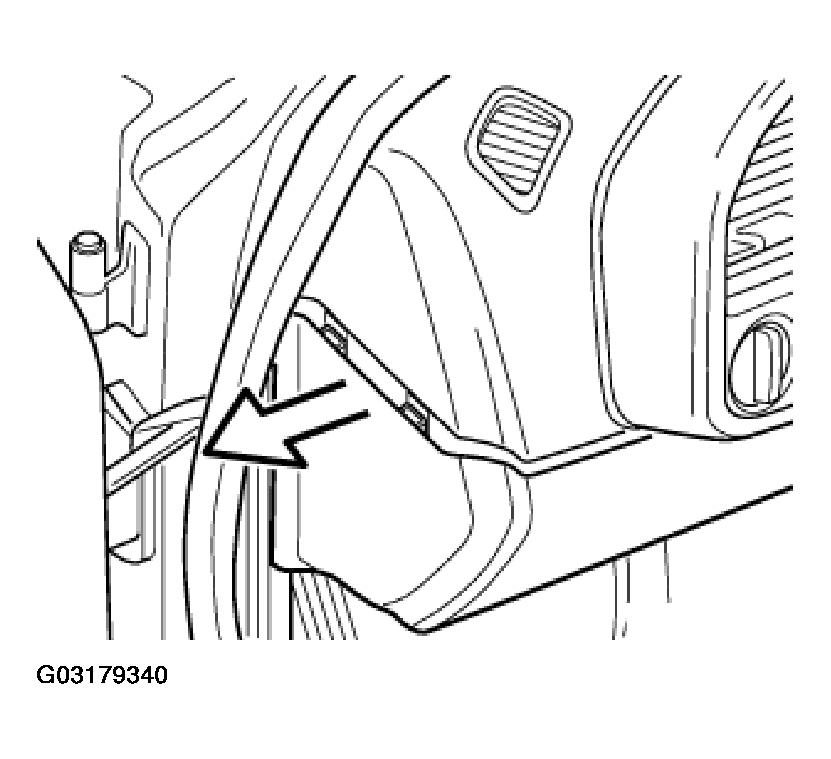

Fig 3: Pulling Panelling To Side Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Pull front end of panelling in downward direction and remove.

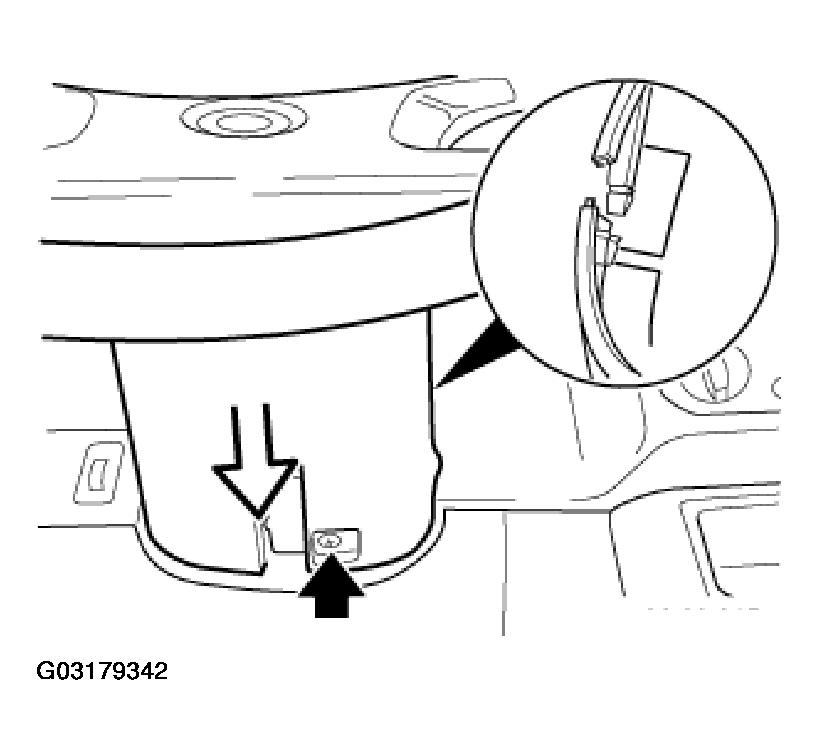

Fig 4: Pulling Front End Of Panelling In Downward Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

Pull lower section of steering-column casing off upper section.

Installation:

Check for correct position of lock.

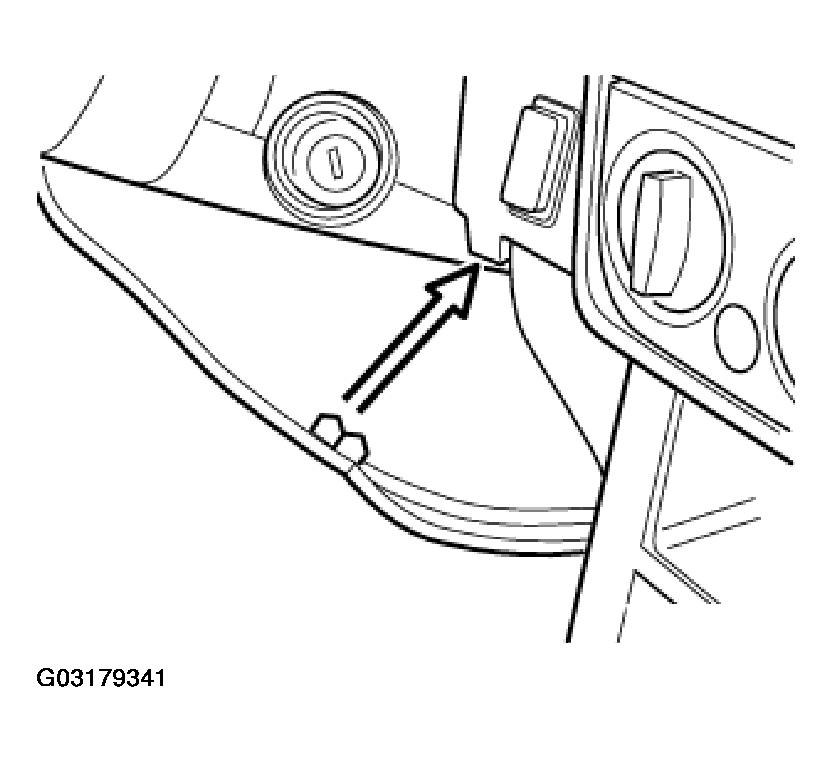

Fig 5: Pulling Lower Section Of Steering-Column Casing Off Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

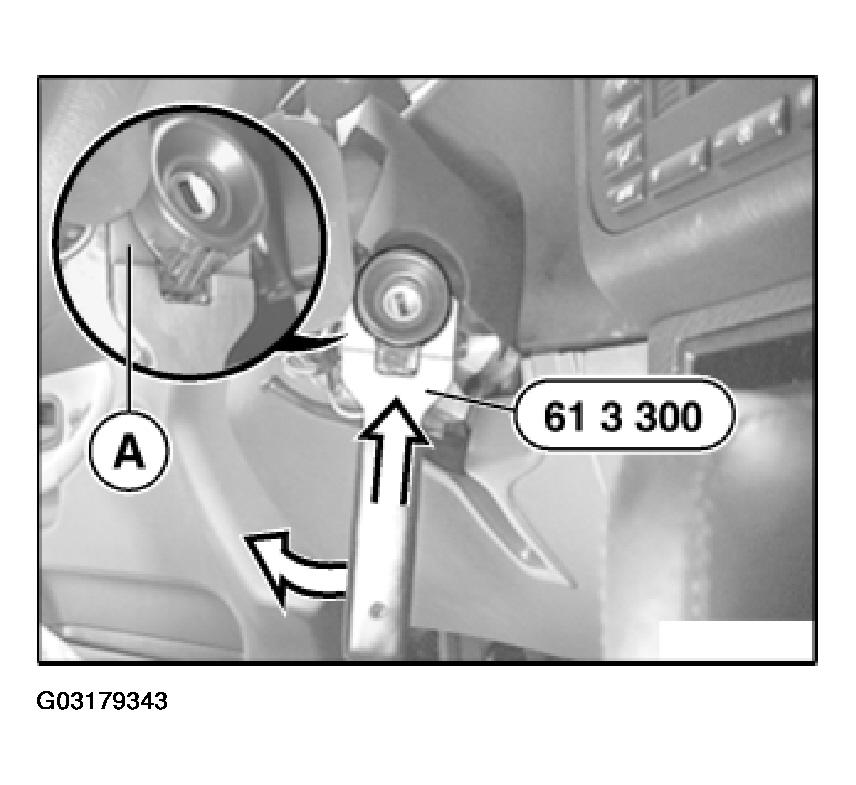

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

Fig 6: Levering Out Ring Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open cable connector and remove ring antenna.

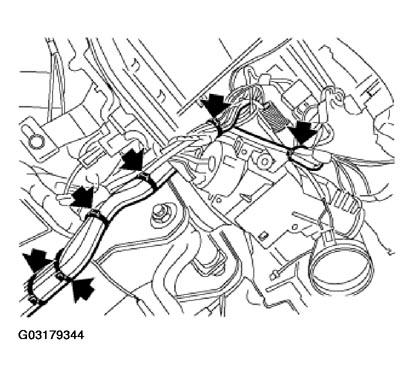

Fig 7: Cutting Open Cable Connector And Removing Ring Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
