61 12 525 Replacing both rear impulse sensors for ABS

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove rear wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Open protective box for ABS sensor.

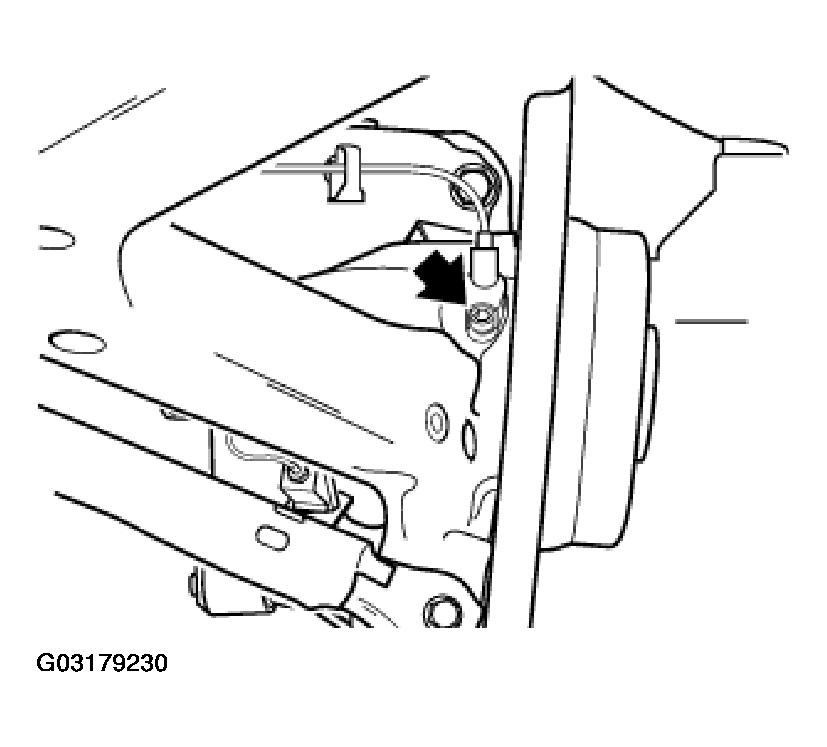

Fig 1: Opening Protective Box For ABS Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Procedures for rear-left sensor are analogous to those for rear-right sensor.

Lift out plug-in connection.

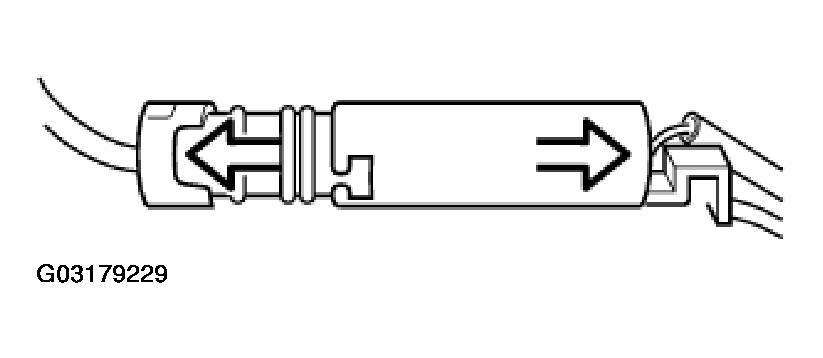

Fig 2: Lifting Out Plug-In Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

Unscrew hexagon screw.

Lift out sensor.

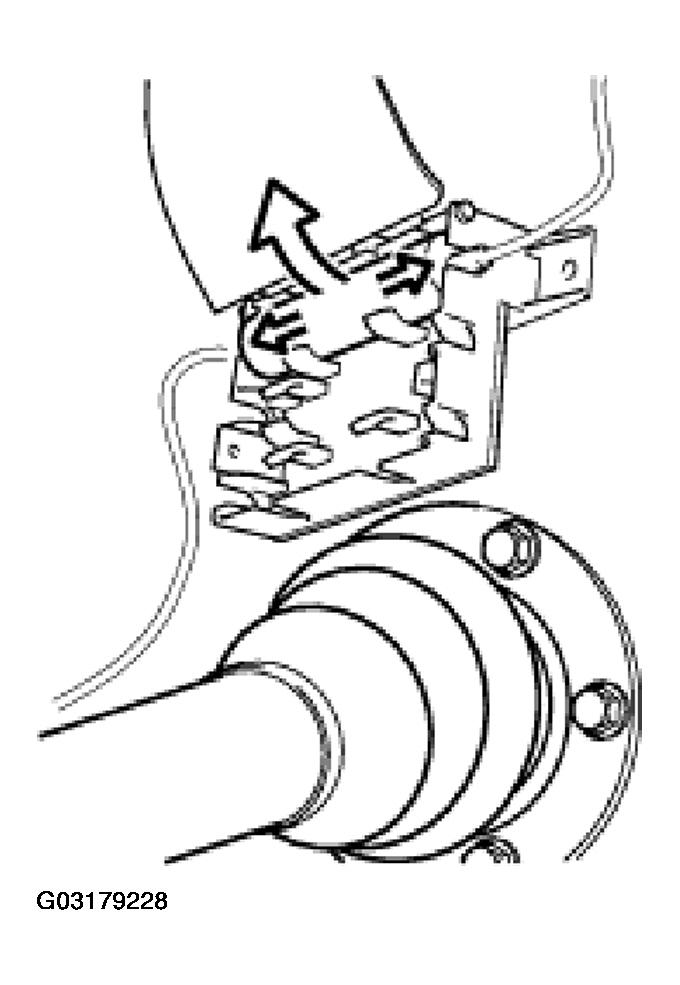

Fig 3: Lifting Out Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean and lubricate dowel-pin bore with Staborax NBU 12/k, refer to BMW Parts Service.
