36 13 Subsequent installation of wheel-bolt lock

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Loosen wheel bolts.

Lift car until wheel can be turned.

Loosen wheel bolts enough for it to be easy to move wheel on wheel hub.

Turn wheel so that valve is face down.

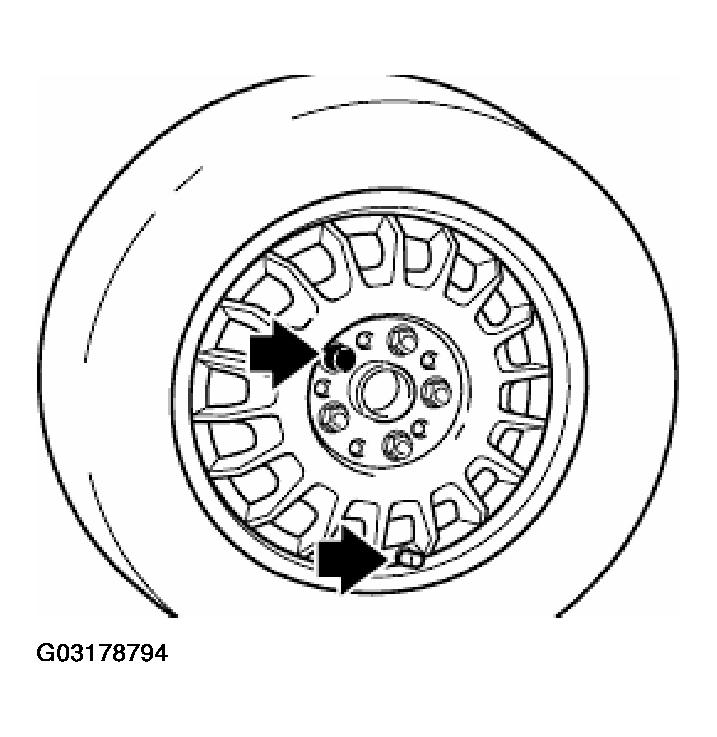

Fig 1: Aligning Wheel With Valve Facing Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper wheel bolt and insert wheel-bolt lock.

Possible play in wheel center and wheel weight could cause imbalance.

This imbalance is reduced to a minimum by installing the somewhat heavier wheel-bolt lock in the top wheel-bolt position.

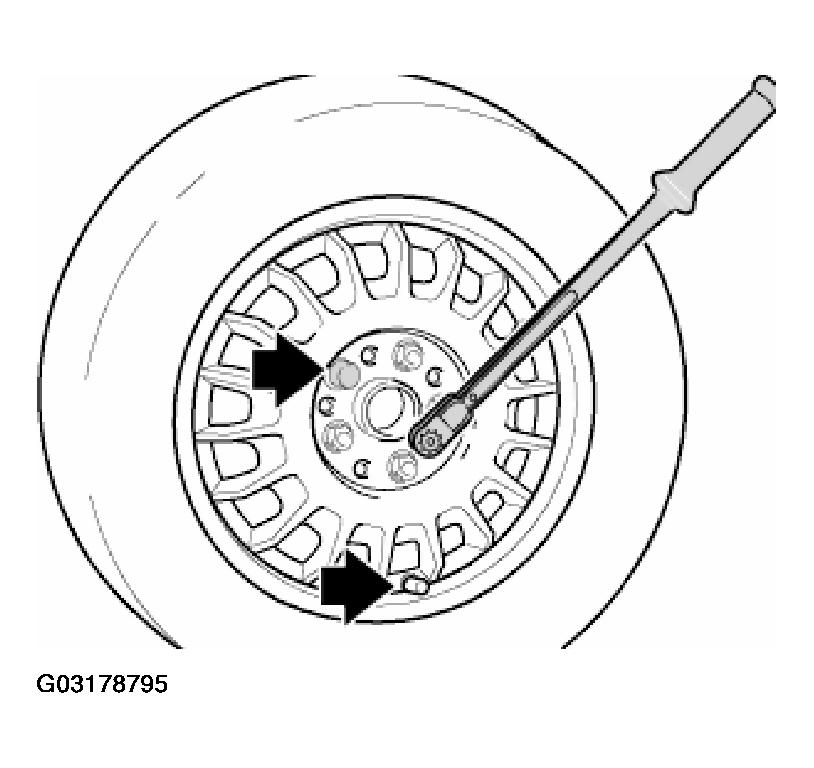

Fig 2: Identifying Top Wheel-Bolt Position

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten wheel bolts crosswise and by hand in this position (wheel-bolt lock at top, valve at bottom).

Lower car and tighten wheel bolts crosswise.

For tightening torque, refer to WHEELS .

Should a customer complain about wheel imbalance after installation of wheel-bolt lock, wheels will have to be finish-balanced.
