13 54 251 Replacing intake hose (between connecting piece and throttle assembly) (M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Z3, E39 And E53:

Release clips (1).

Pull intake hose (2) out of connecting piece.

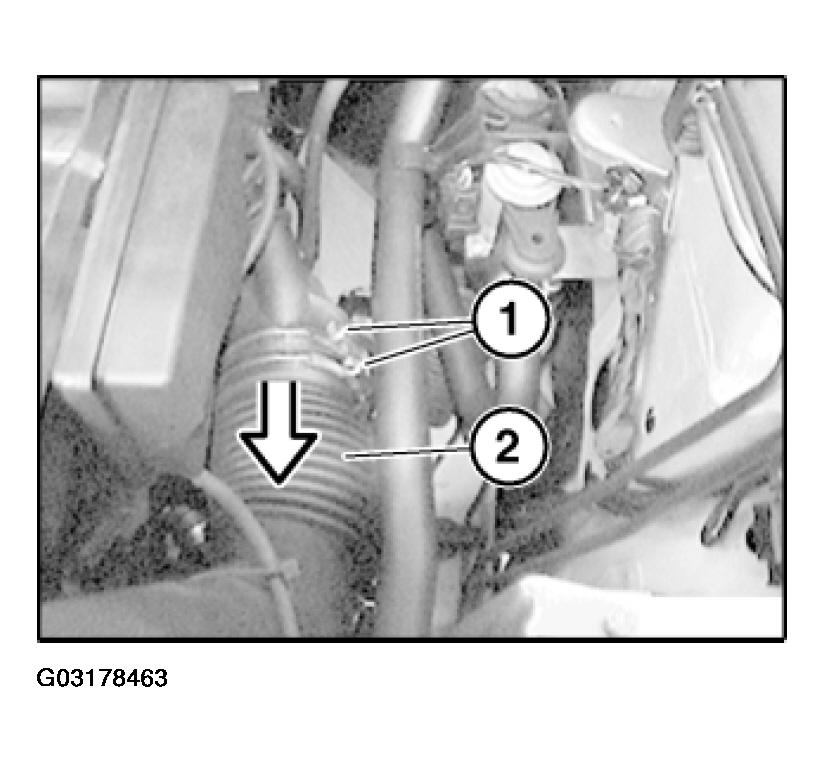

Fig 1: Pulling Intake Hose Out Of Connecting Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove suction jet pump (1) from intake air manifold.

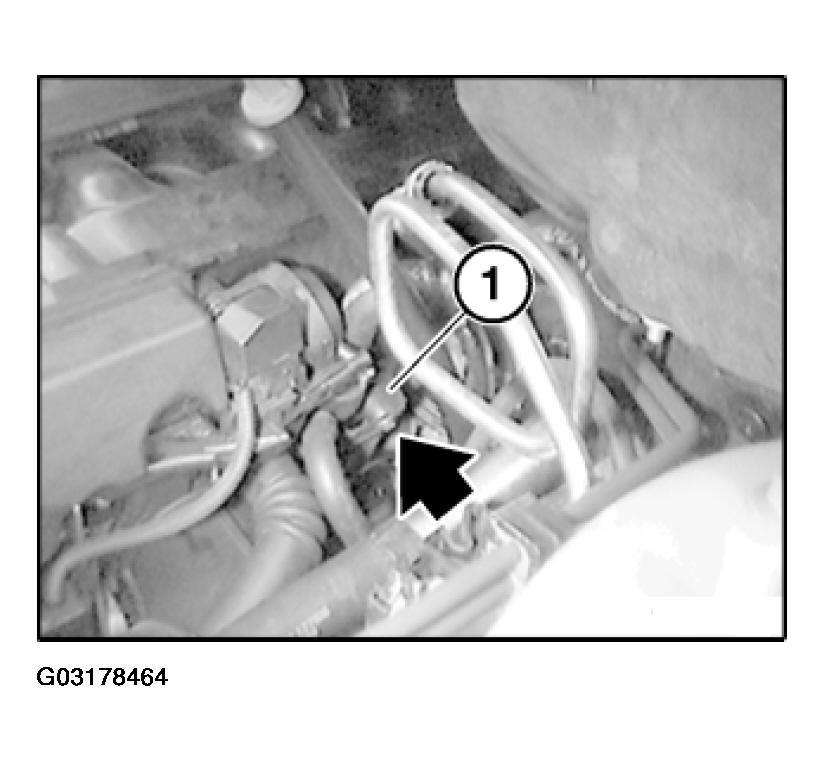

Fig 2: Locating Suction Jet Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (1).

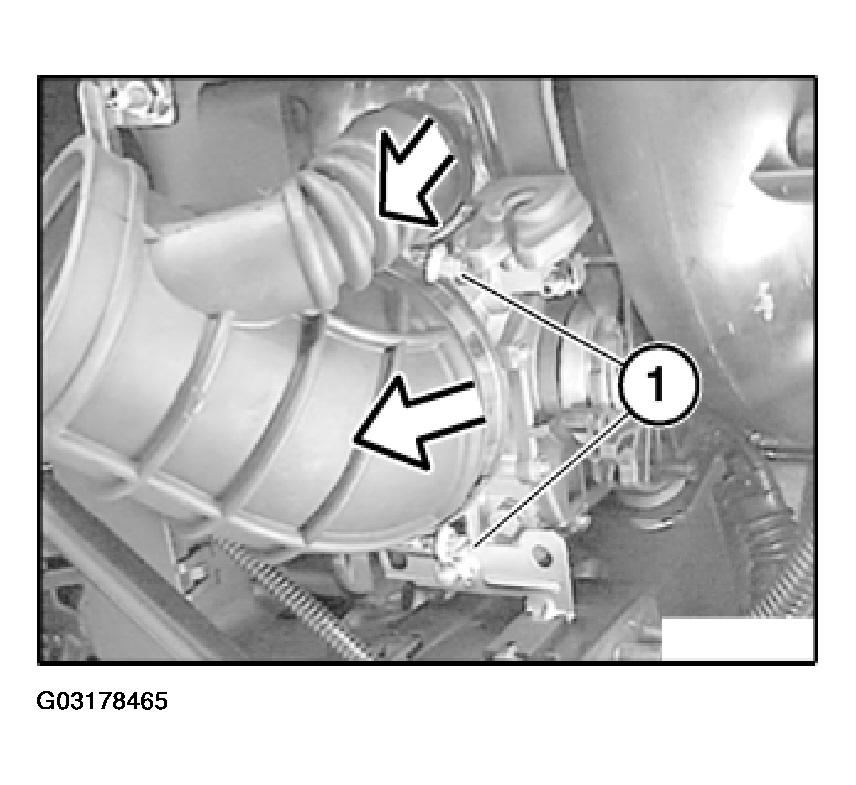

Fig 3: Identifying Hose Clamps On Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Detach intake hose from throttle assembly and idle speed control valve.
