13 62 531 Replacing coolant temperature sensor (M52TU, M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Installation Location:

Coolant temperature sensor (1) is fitted below intake air manifold in cylinder head of cylinder 6.

Fig 1: Identifying Coolant Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

Disconnect plug connection (1).

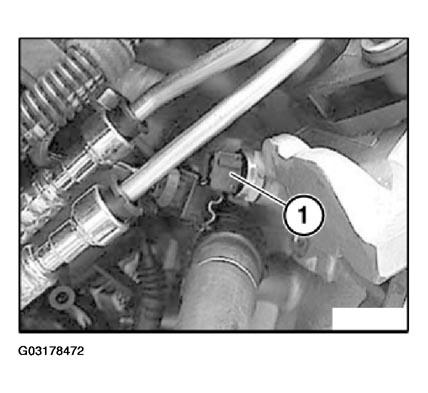

Fig 2: Locating Plug Connection Of Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew temperature sensor.

Installation:

Tightening torque, refer to 13 62 2AZ in13 62 SENDERS FOR CONTROL UNIT .

Check coolant level, top up coolant if necessary.

NOTE: Read out fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
