12 41 041 Replacing solenoid switch

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove starter motor.

Release nut (1).

Remove cable lug (2).

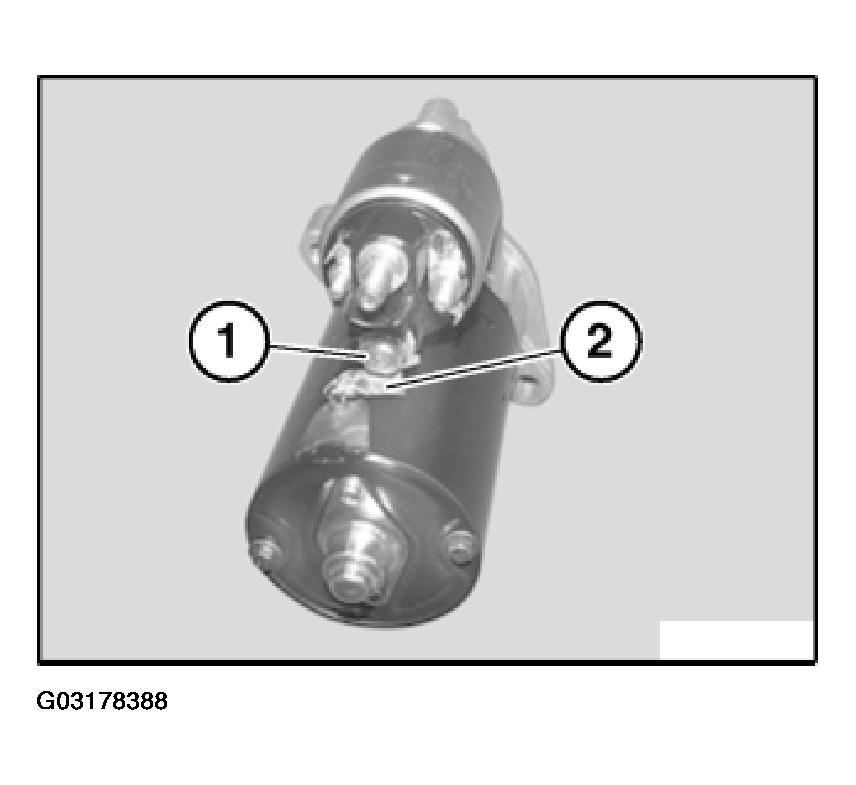

Fig 1: Removing Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing.Tightening torque, 12 41 4AZ. Refer to 12 41 STARTER AND MOUNTING PARTS .

Release screws (1).

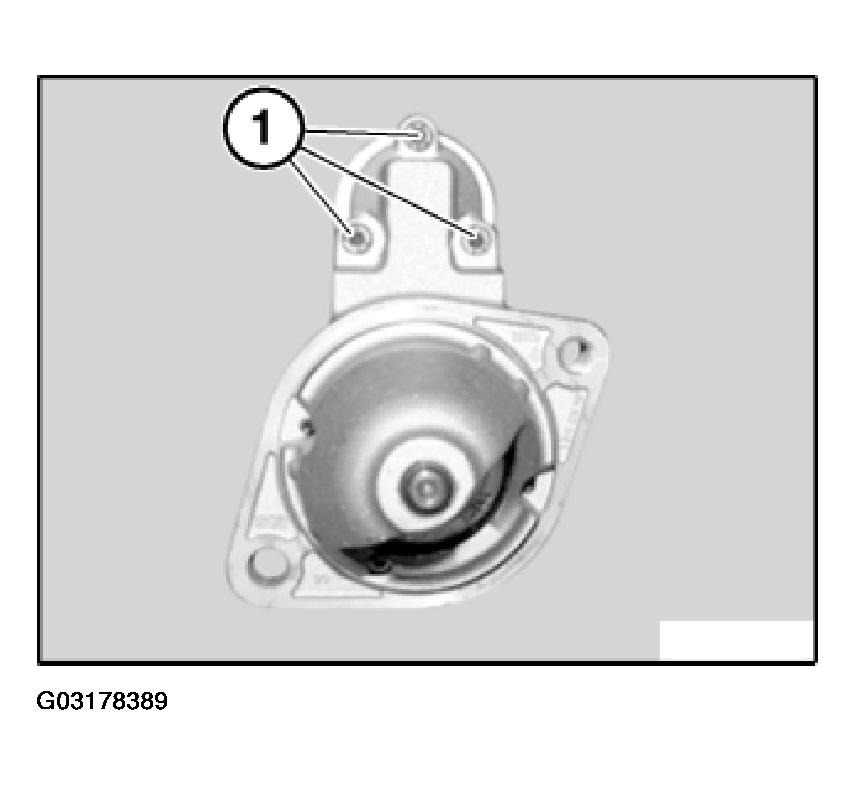

Fig 2: Releasing Screws On Solenoid Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove solenoid switch (1) and spring (2).

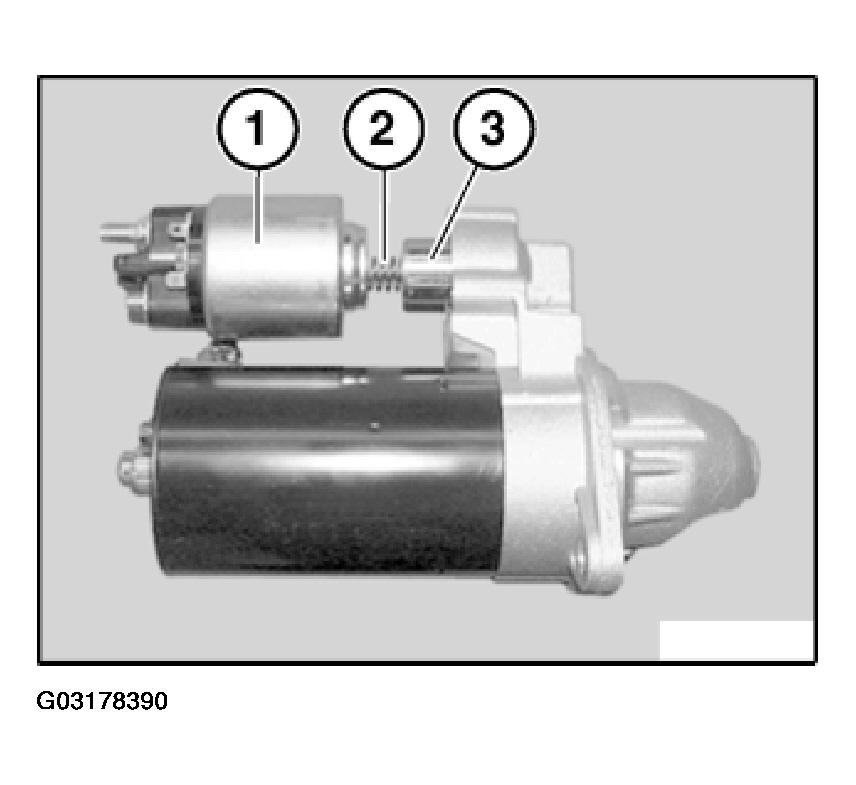

Fig 3: Removing Solenoid Switch And Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.
