12 14 600 Replacing knock sensor (M52TU, M54, M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Check stored fault messages.
Switch off ignition.
Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR .

Unclip plug connection (1) from holder of cable duct (2) and disconnect.

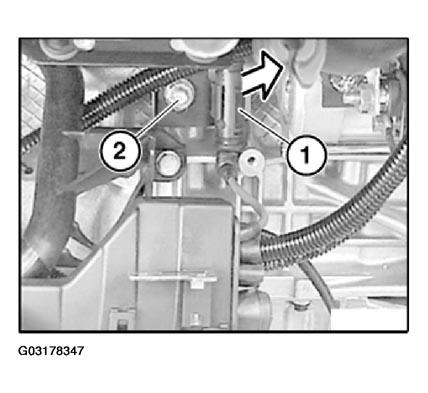

Fig 1: Unclipping Plug Connection From Holder Of Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove knock sensor for cylinder bank 1-3.

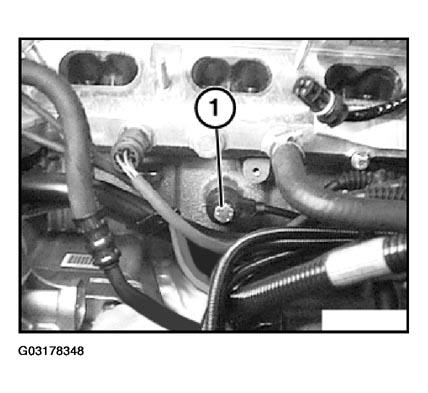

Fig 2: Removing Knock Sensor Screw On Cylinder Bank 1-3

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) and remove knock sensor for cylinder bank 4-6.

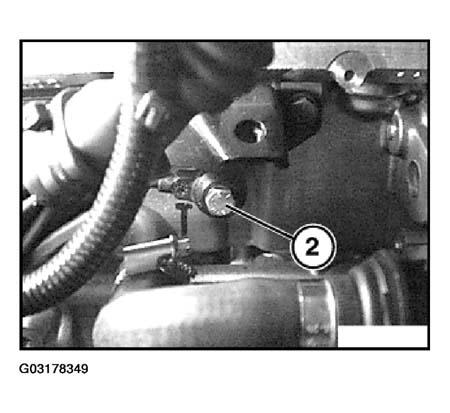

Fig 3: Removing Knock Sensor Screw On Cylinder Bank 4-6

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean support face of knock sensors on engine block.

Tightening torque, 12 14 IAZ. Refer to 12 14 ELECTRONIC SHIFT UNITS OR CONTROL UNITS .

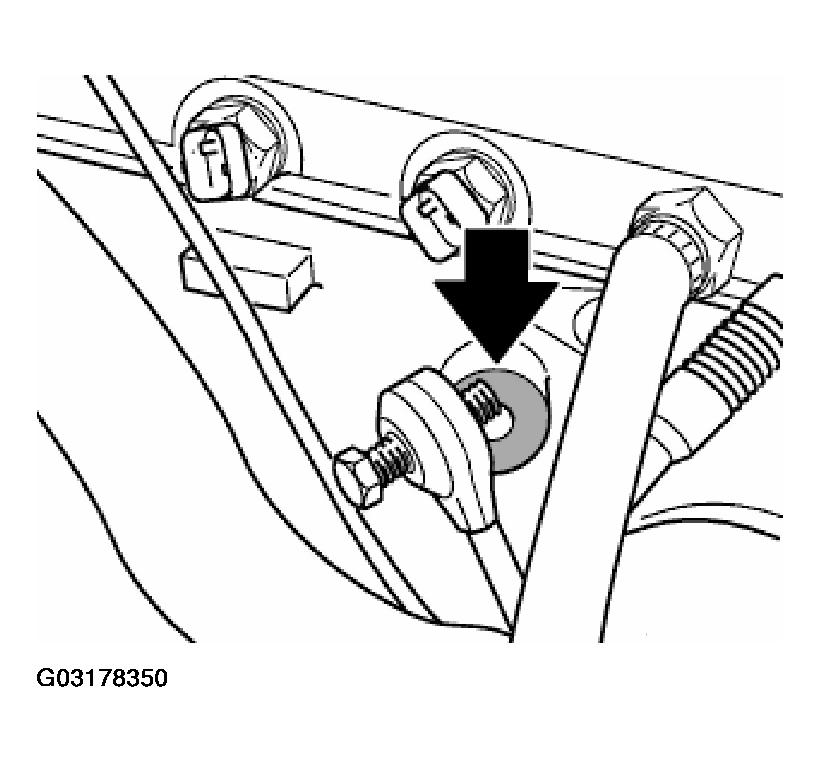

Fig 4: Identifying Support Face Of Knock Sensors On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Now clear the fault memory.
