12 31 009 Checking alternator and regulator switch

Test Requirements:

• Correct connections on charged battery.
• Correct connections on alternator and starter motor.
• Good ground connection between engine and body.
• Tightened drive belt.

Connect DIS Tester.

• Measurement.
• Checking alternator.

If charge indicator lamp is permanently lit:

Remove voltage regulator and check carbon brushes, replace if necessary.

Replace alternator regulator switch. Refer to 12 32 501 REPLACING VOLTAGE REGULATOR  .

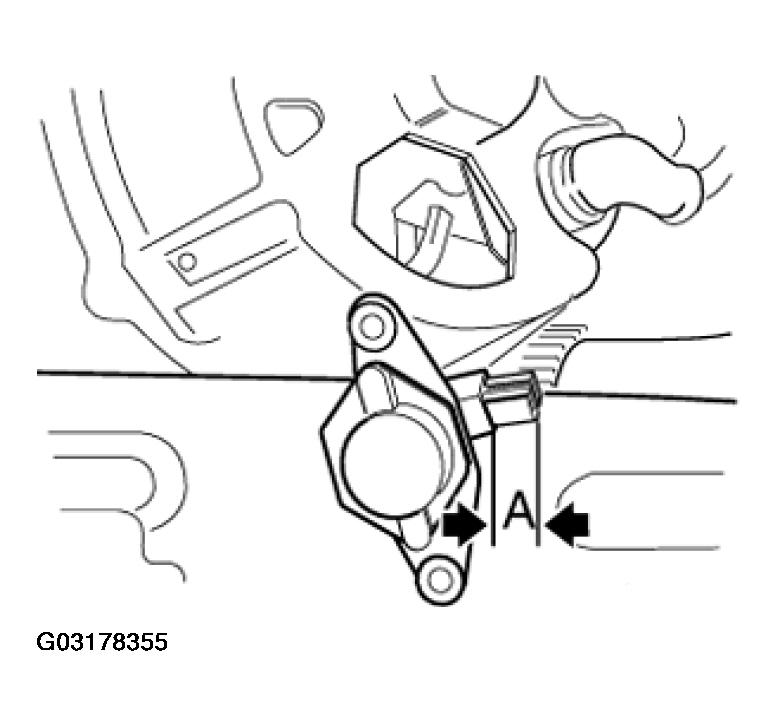

Fig 1: Identifying Checking Carbon Brush Length

Courtesy of BMW OF NORTH AMERICA, INC.

If charge indicator lamp goes out while engine is running:

Check control voltage. Refer to 12 32 REGULATOR E36 .

Regulator switch must be replaced if control voltage is not achieved.

Replace alternator regulator switch. Refer to 12 32 501 REPLACING VOLTAGE REGULATOR  .

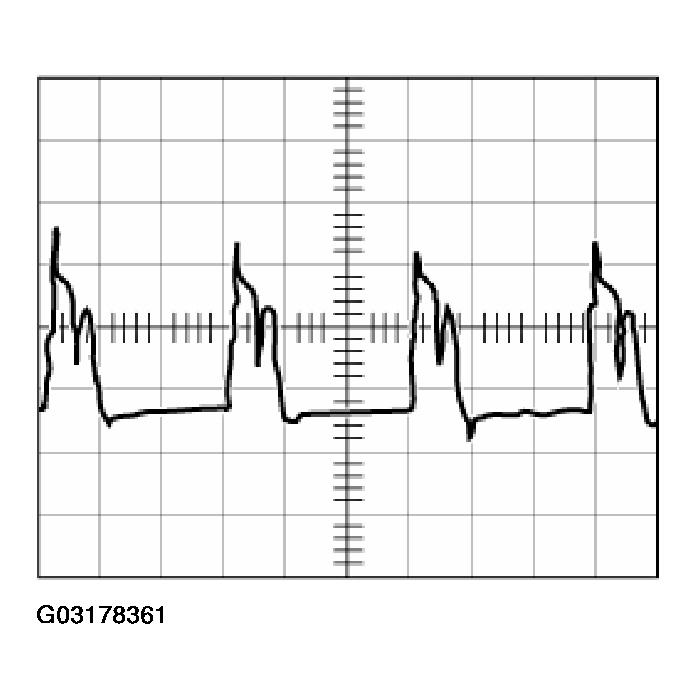

Oscillogram For A Fault-Free Alternator:

Fig 2: Identifying Fault-Free Alternator Oscillogram

Courtesy of BMW OF NORTH AMERICA, INC.

Oscillogram For A Faulty Alternator:

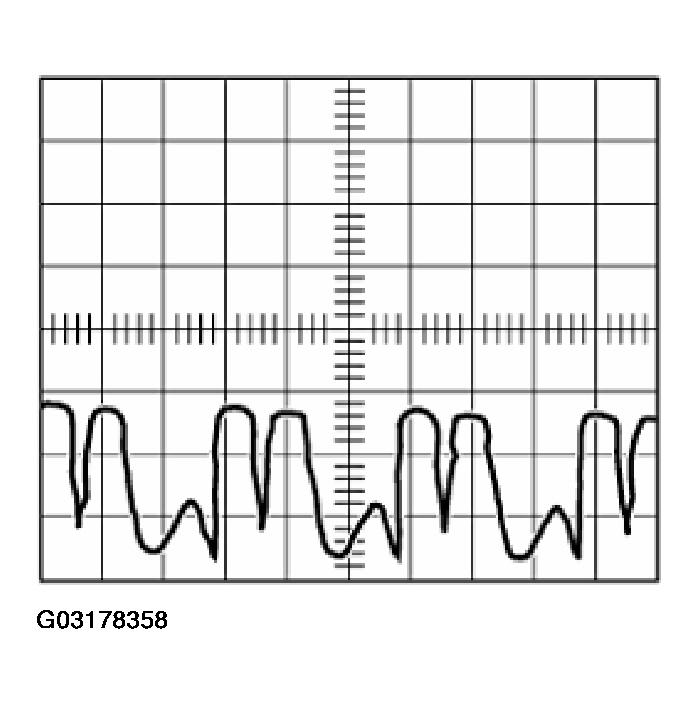

One phase interrupted.

Repair/exchange alternator.

Fig 3: Identifying Oscillogram One Phase Interrupted

Courtesy of BMW OF NORTH AMERICA, INC.

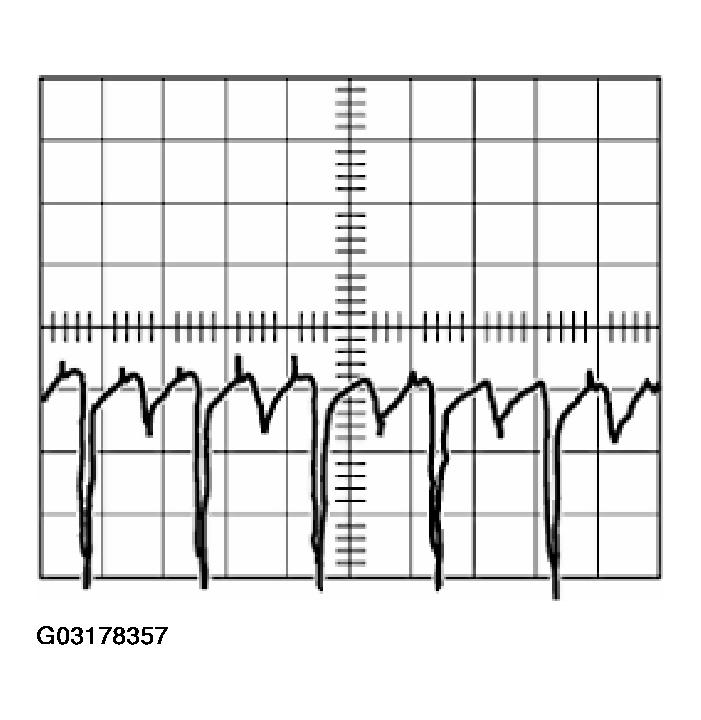

Interturn fault.

Fig 4: Identifying Interturn Fault

Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

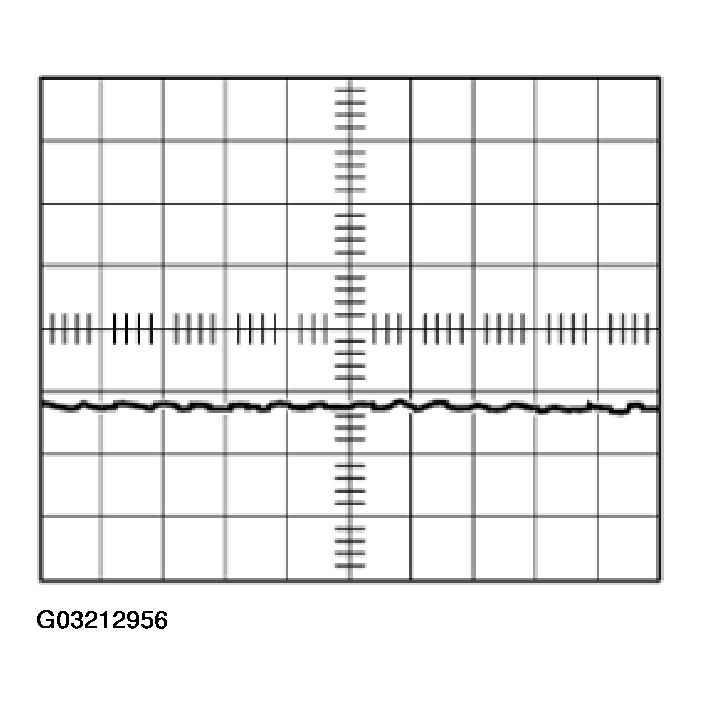

Open circuit in negative diode.

Repair/exchange alternator.

Fig 5: Identifying Open Circuit In Negative Diode

Courtesy of BMW OF NORTH AMERICA, INC.

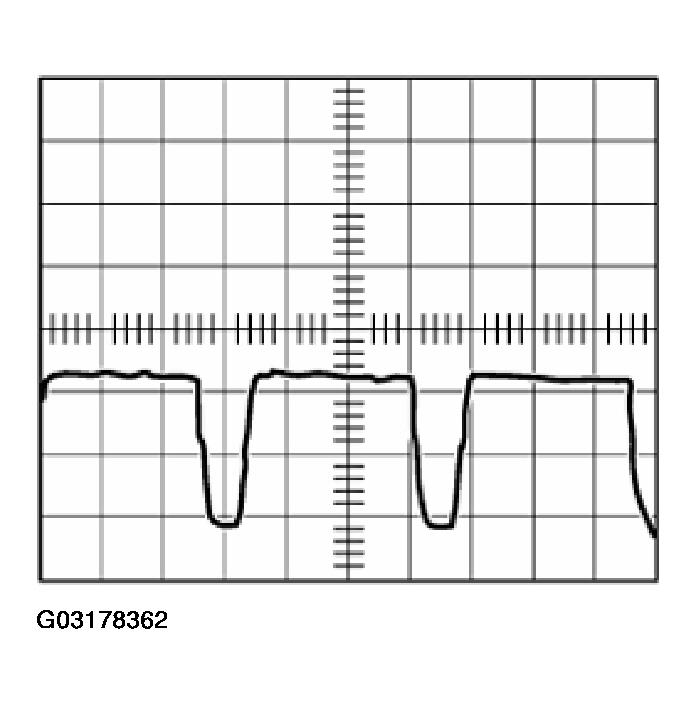

Short circuit in positive diode.

Repair/exchange alternator.

Fig 6: Identifying Short Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

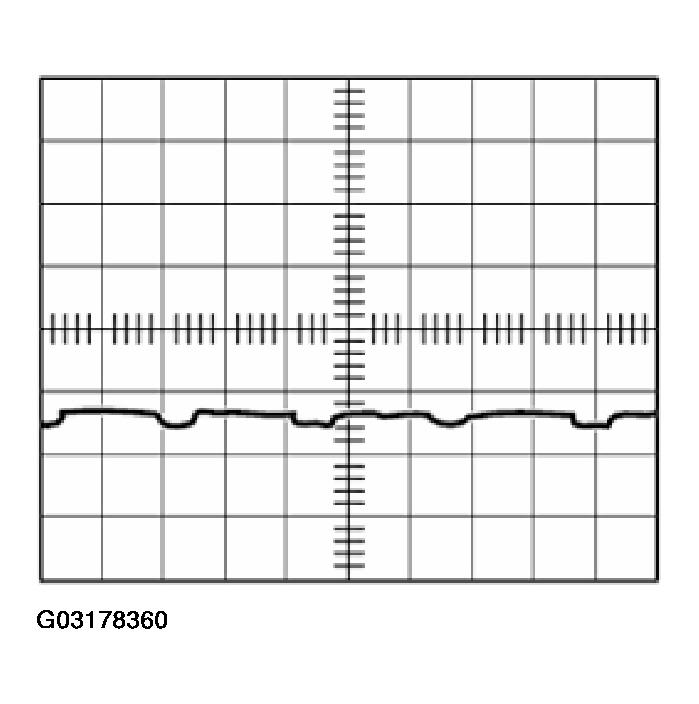

Open circuit in positive diode.

Repair/exchange alternator.

Fig 7: Identifying Open Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

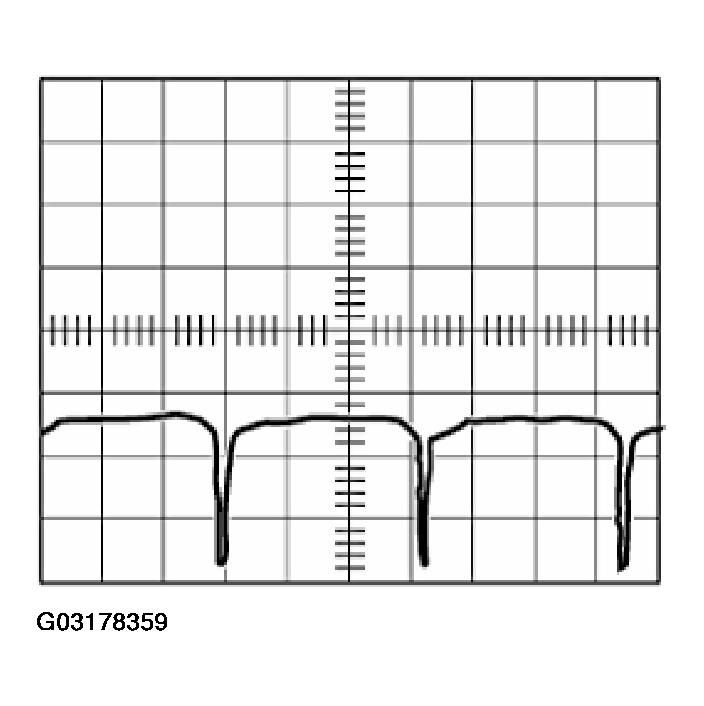

Open circuit in exciter diode.

Repair/exchange alternator.

Fig 8: Identifying Open Circuit In Exciter Diode

Courtesy of BMW OF NORTH AMERICA, INC.
