11 22 500 Removing and installing or replacing flywheel (M52 / S52 / M52TU / M54 / S54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

11 2 170

(Clutch removed)

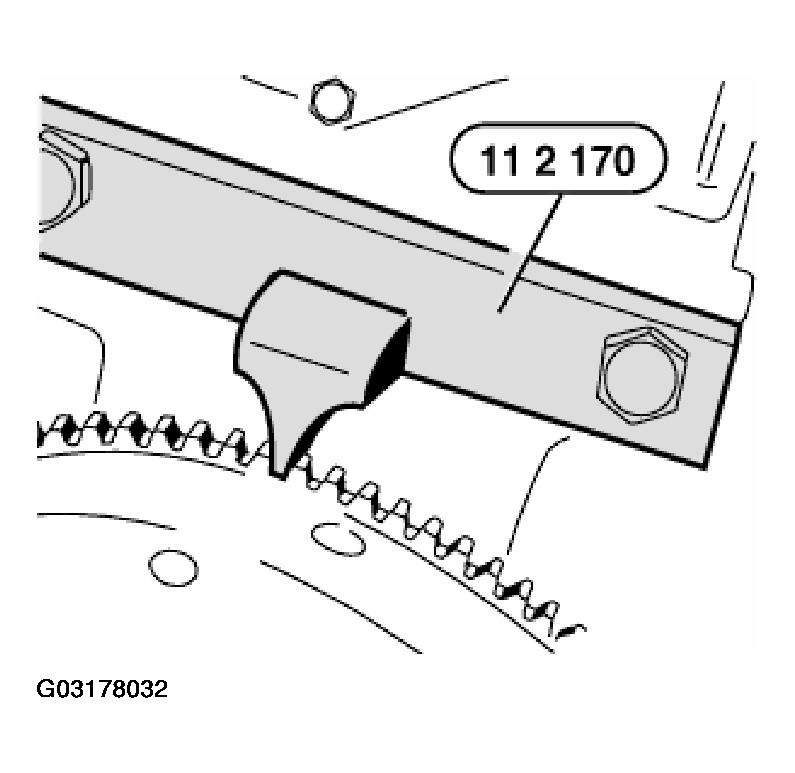

Lock flywheel with special tool 11 2 170.

Fig 1: Locking Flywheel With Special Tool 11 2 170

G03178032

Courtesy of BMW OF NORTH AMERICA, INC.

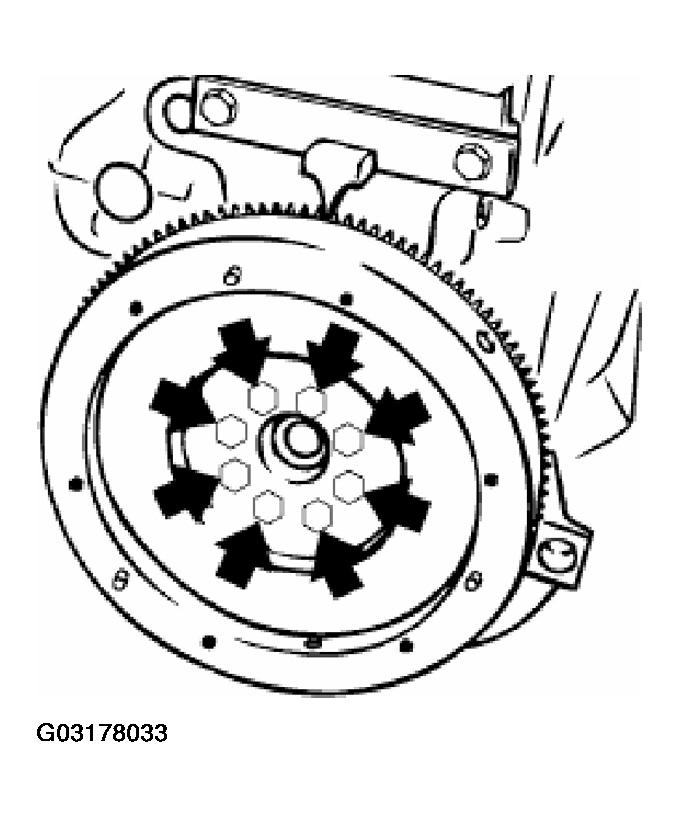

Unfasten screws and remove flywheel.

Fig 2: Identifying Screws Of Flywheel

G03178033

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

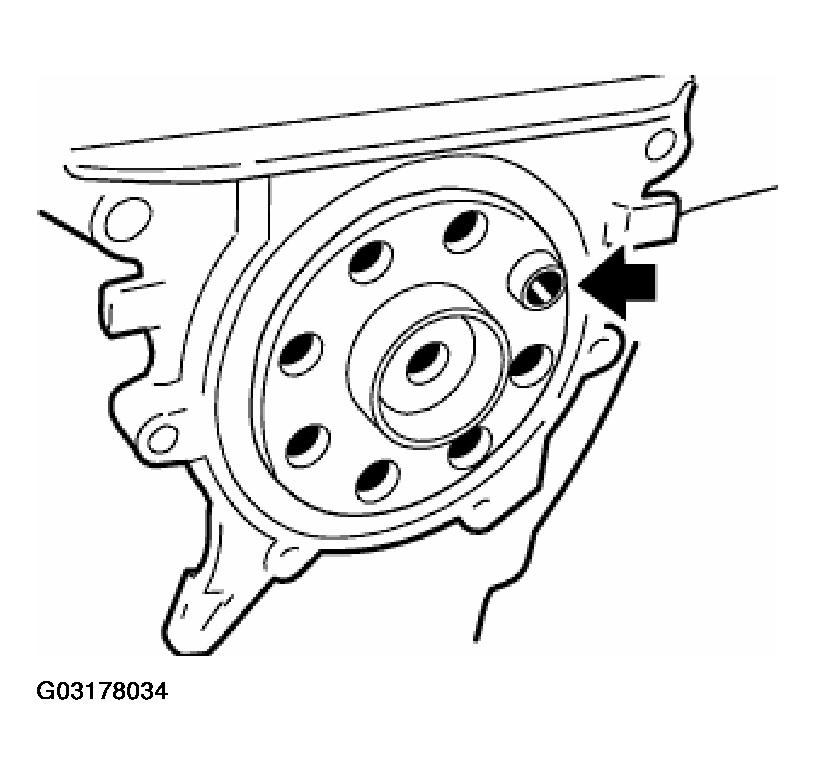

Check dowel sleeve for damage and correct installation position.

Fig 3: Checking Dowel Sleeve

G03178034

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

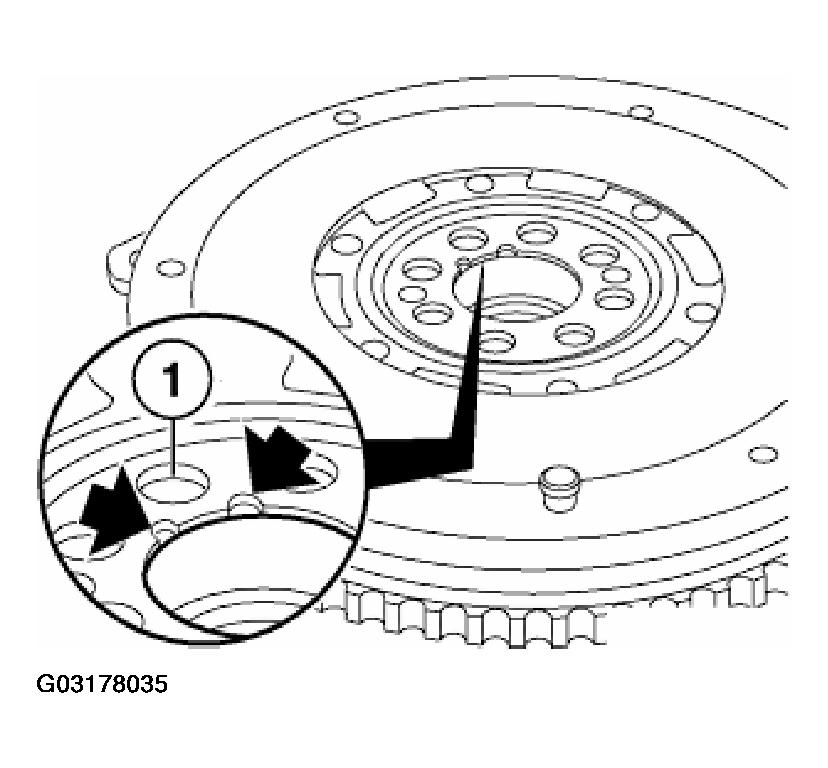

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

Fig 4: Identifying Position Of Notches Next To Dowel Sleeve Bolt Hole

G03178035

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

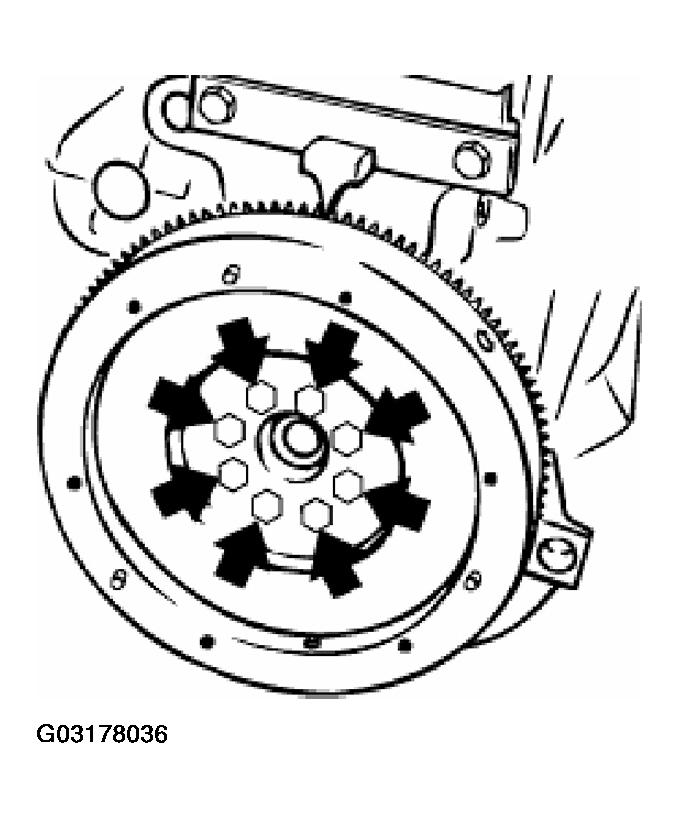

Clean thread and install new micro-encapsulated screws.

Fig 5: Installing Micro-Encapsulated Screws

G03178036

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 11 22 1AZ in FLYWHEEL .
