11 00 050 Removing and installing engine (M52 / S52 / M52TU / M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

11 0 000

Instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect negative battery lead.

E36:

Move engine hood into assembly position and remove heater bulkhead (air collector). These work steps are described in Removing complete wiper bracket.

Z3:

Move engine hood to assembly position:

NOTE: The following work must be carried out with a second person assisting. Work instruction applies to left and right sides.

Hold engine bonnet/hood.

Unclip retainer (1).

Unhook damper and suspend in ball head (2).

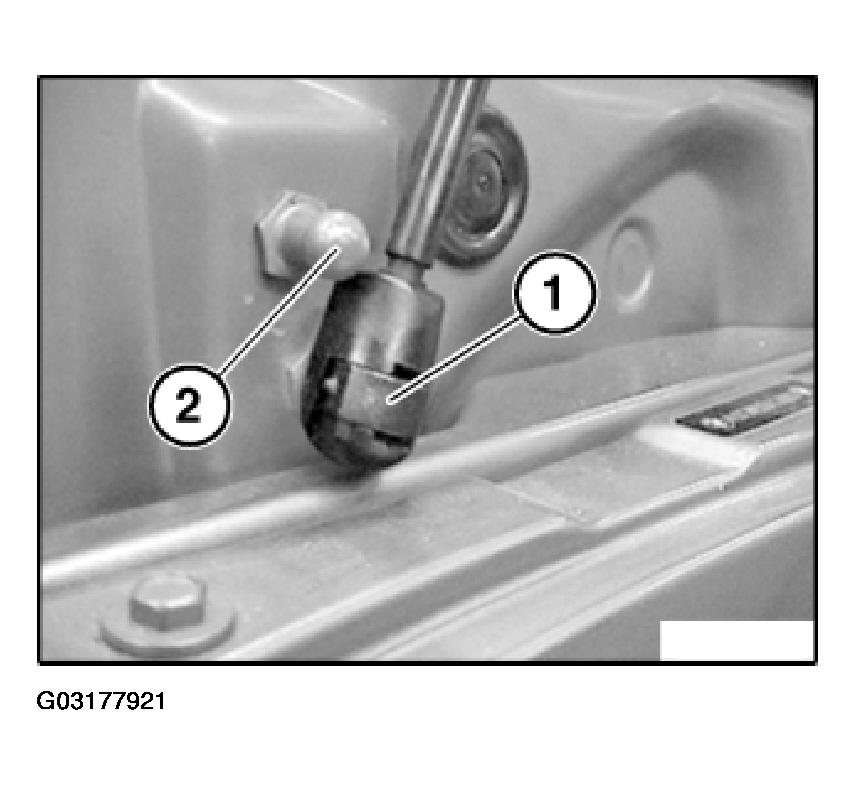

Fig 1: Identifying Retainer And Damper

G03177921

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew and remove splash guard.

Remove transmission, refer to REMOVAL & INSTALLATION or REMOVAL & INSTALLATION .

NOTE: M52TU / M54:
The water drain plug is located on the exhaust side on cylinder 2 in the engine block.

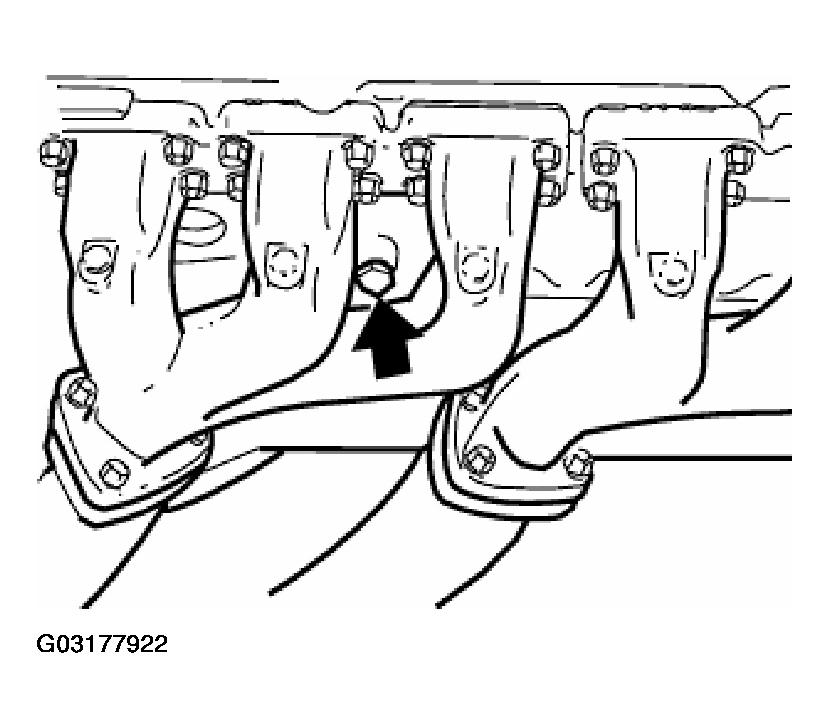

Fig 2: Identifying Drain Plug

G03177922

Courtesy of BMW OF NORTH AMERICA, INC.

Drain off coolant and dispose of correctly.

Installation:

Replace seal.

Tightening torque, refer to 11 11 5AZ in 11 11 ENGINE BLOCK .

Remove radiator.

Take off cover.

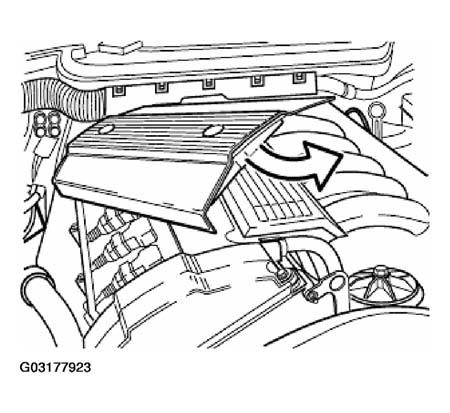

Fig 3: Taking Off Cover

G03177923

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

Unfasten engine section of wiring harness and place to one side with cable duct.

Remove fan clutch with fan impeller. Refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .

Disconnect coolant hoses at heating valve and heater.

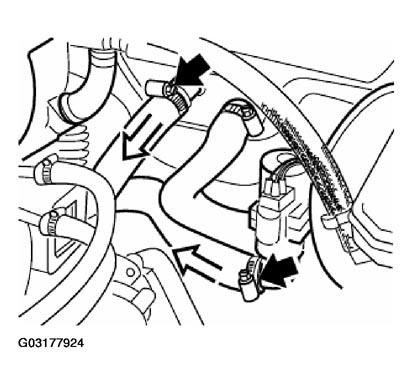

Fig 4: Disconnecting Coolant Hoses At Heating Valve And Heater

G03177924

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten reservoir for power steering unit and tie up to one side.

NOTE: Lines remain connected.

Remove vane pump from power steering unit.

NOTE: Lines remain connected.

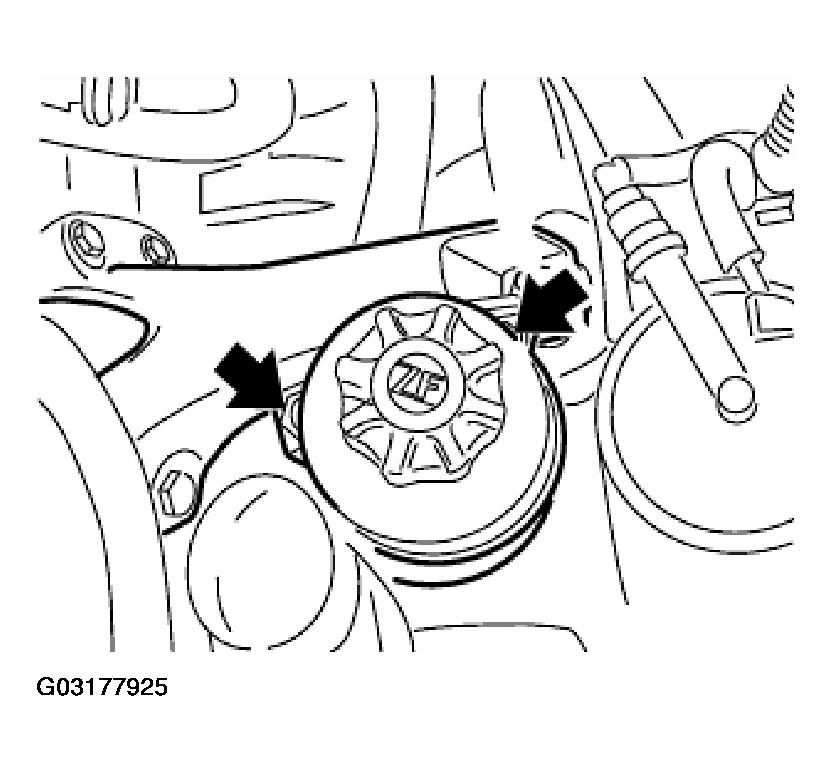

Fig 5: Removing Reservoir For Power Steering Unit

G03177925

Courtesy of BMW OF NORTH AMERICA, INC.

Fit engine to special tool 11 00 000.

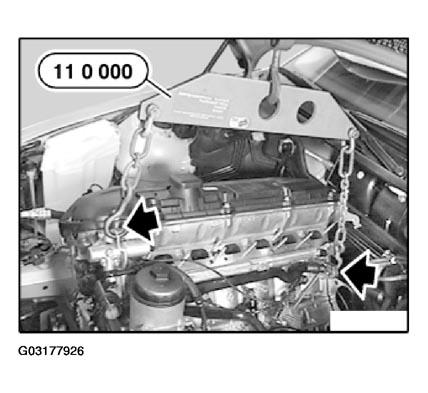

Fig 6: Fitting Engine To Special Tool 11 00 000

G03177926

Courtesy of BMW OF NORTH AMERICA, INC.

Front and rear suspension arrangement

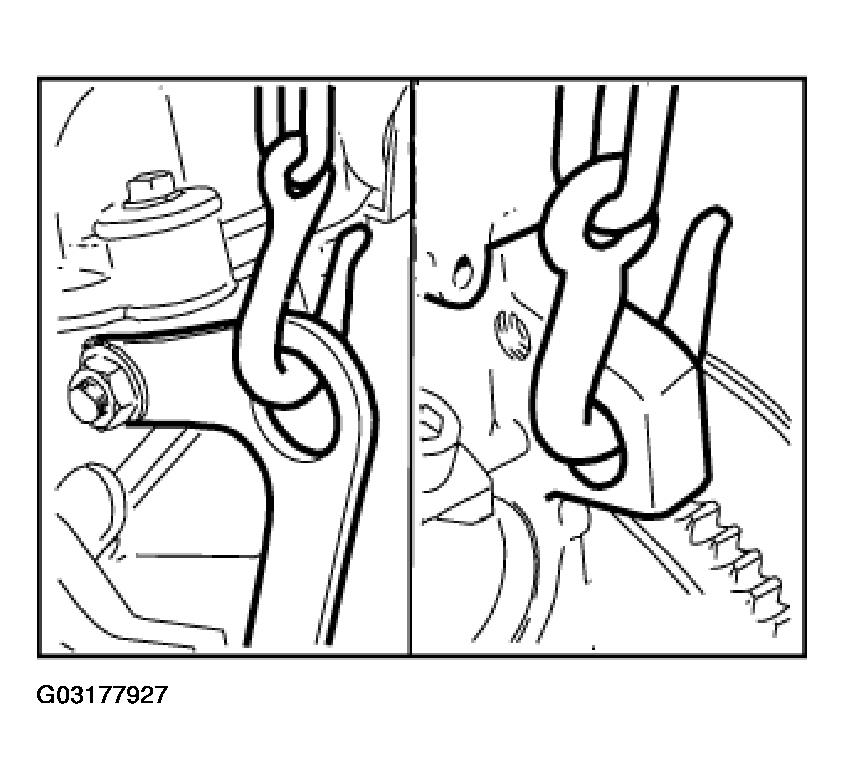

Fig 7: Identifying Front And Rear Suspension Arrangement

G03177927

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten right ground wire.

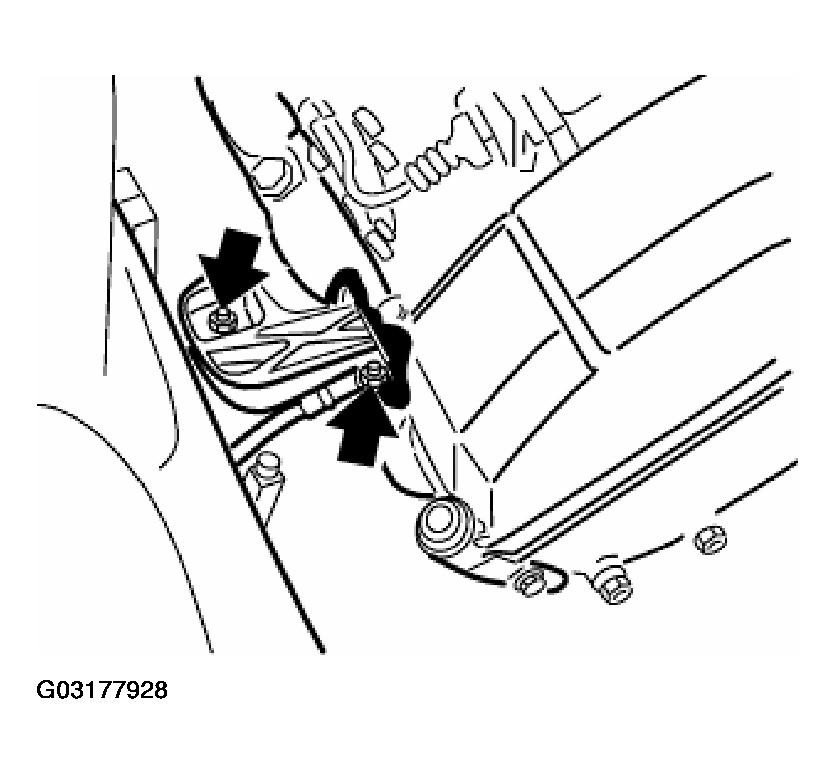

Fig 8: Unfastening Right Ground Wire

G03177928

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right engine mounts.

Lift out engine.
