11 12 503 Disassembling and assembling cylinder head (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

00 1 490
11 0 192
11 0 342
11 0 343
11 0 345
11 1 045
11 1 065
11 1 067
11 1 071
11 1 441
11 1 442

(Cylinder head removed)

If necessary, remove coolant thermostat. Refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M52TU / M54 / M56) .

Screw on special tool 11 1 442.

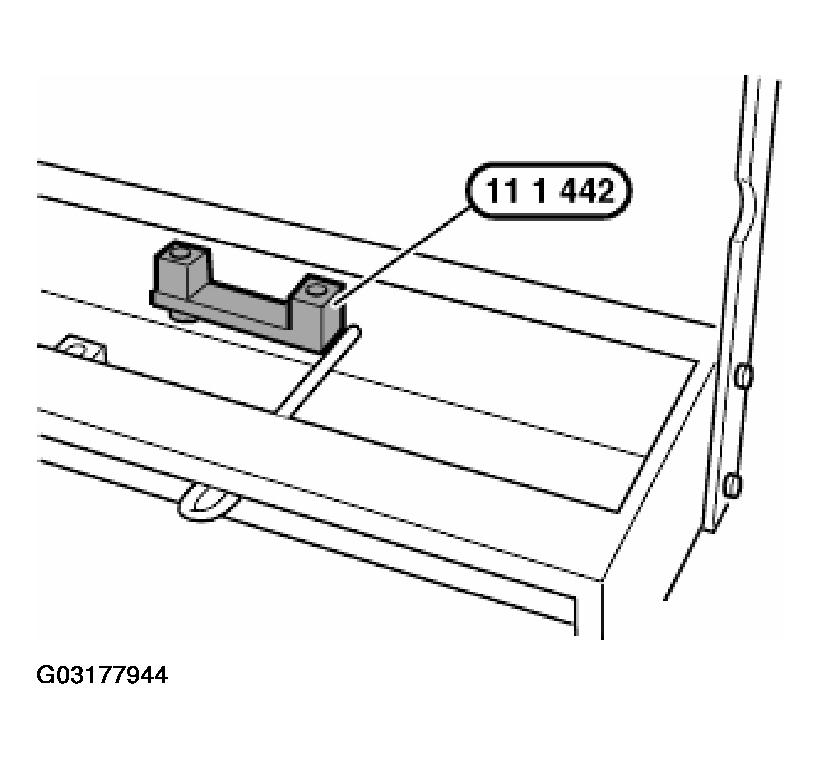

Fig 1: Installing Special Tool 11 1 442

G03177944

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 1 065 onto special tool 00 1 490.

Provide special tools for disassembling cylinder head:

Special tool 11 1 071.
Special tool 11 1 067.
Special tool 11 0 192.

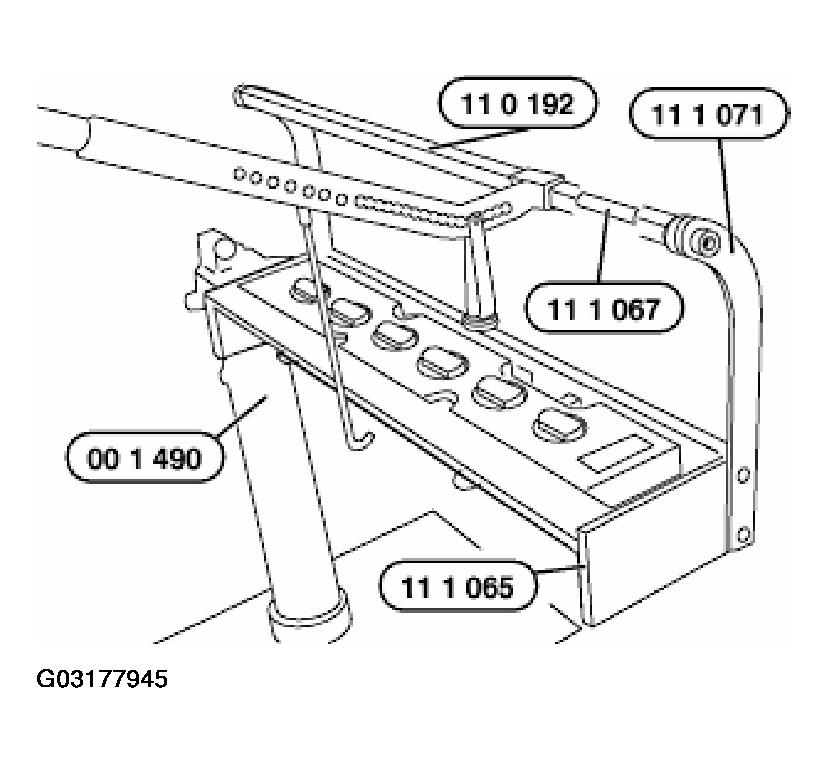

Fig 2: Screwing Special Tool 11 1 065 Onto Special Tool 00 1 490

G03177945

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 1 045.
Special tool 11 0 342.
Special tool 11 0 343.
Special tool 11 0 345.
Special tool 11 1 441.

Assemble special tools.

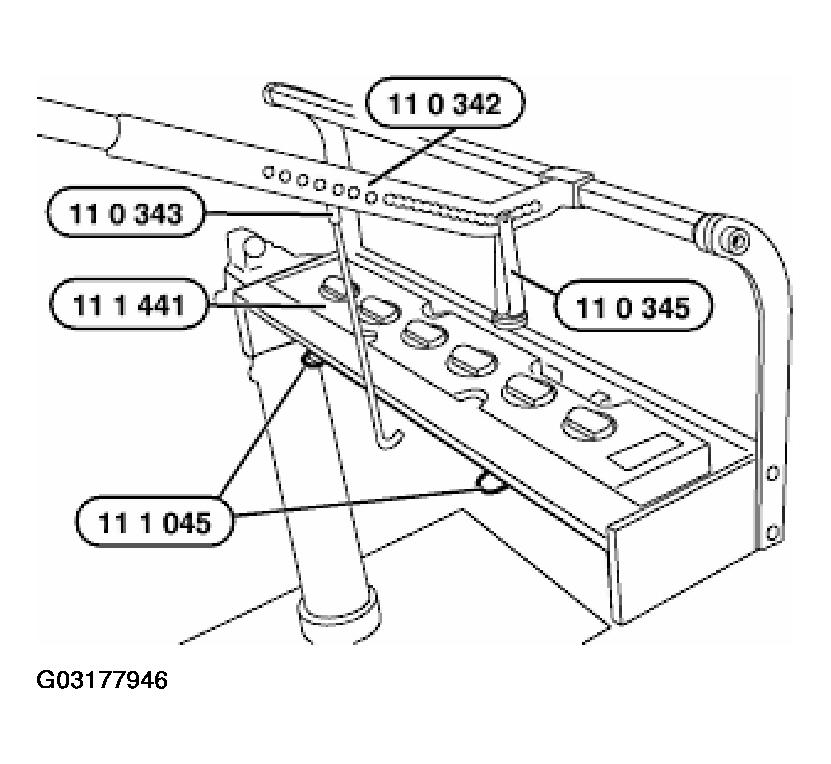

Fig 3: Assembling Special Tools

G03177946

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not install special tool 11 1 441 (locating board) in special tool 11 1 065 at this stage.

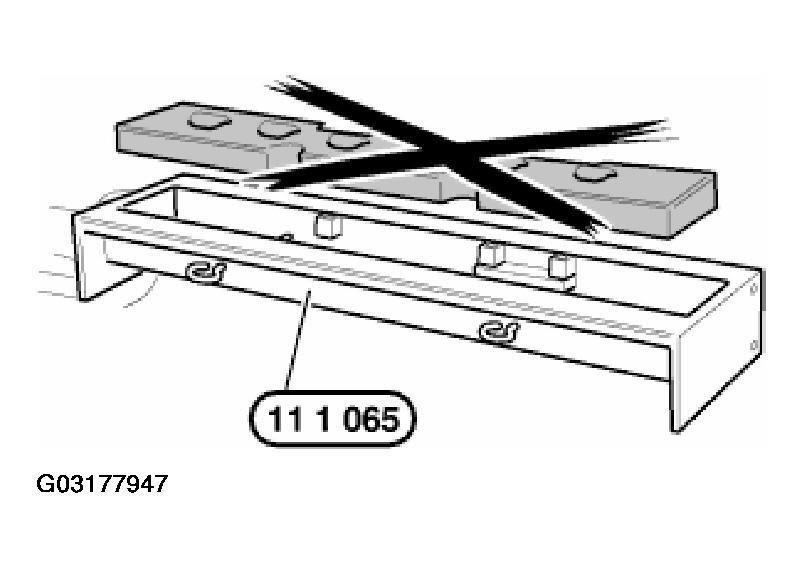

Fig 4: Identifying Special Tool 11 1 065

G03177947

Courtesy of BMW OF NORTH AMERICA, INC.

Place cylinder head on special tool 11 1 065 and screw on with two screws.

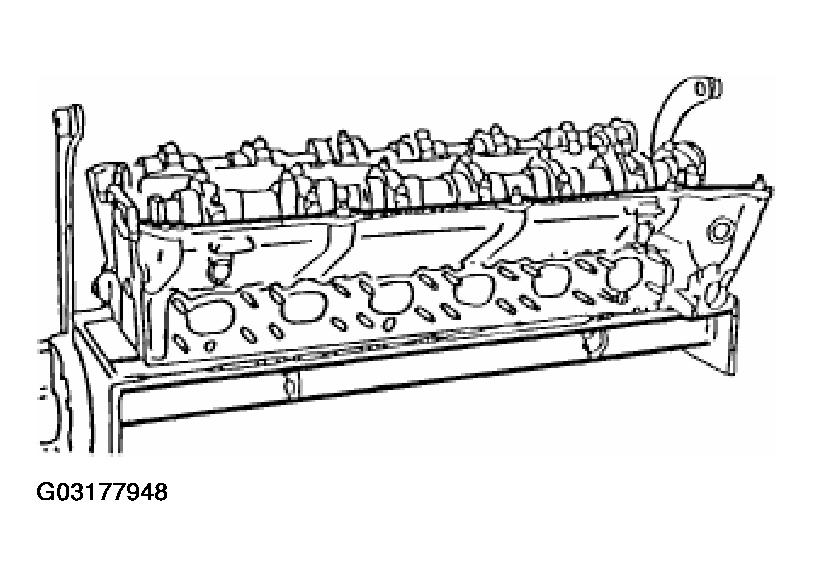

Fig 5: View Of Cylinder Head On Special Tool 11 1 065

G03177948

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52 / S52 / M52TU / M54 / M56) .

Remove all valve stem seals. Refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M52 / S52 / M52TU / M54 / M56) .

Remove all valves. Refer to 11 34 552 REMOVING AND INSTALLING OR REPLACING ALL VALVES (M52 / S52 / M52TU / M54 / M56) .
