67 16 010 Removing and installing/replacing left headlight vertical aim adjuster

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

M54 Only : Remove suction filter housing.

M62 Only:

Release screws (1) and remove equipment carrier (2).

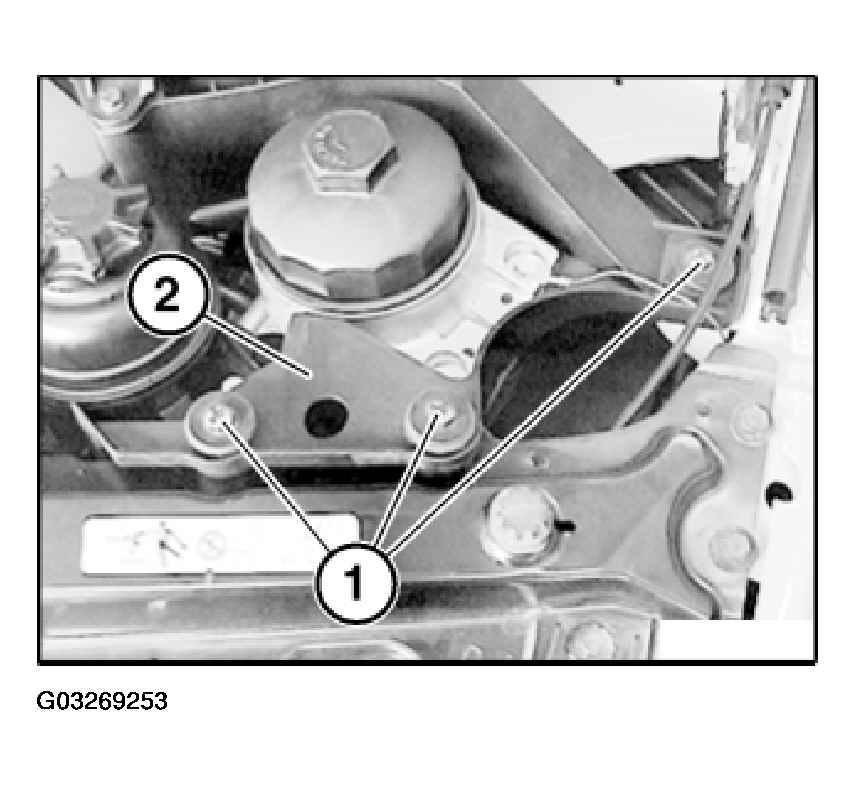

Fig 1: Removing Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

N62 only:

Release screws (1).

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

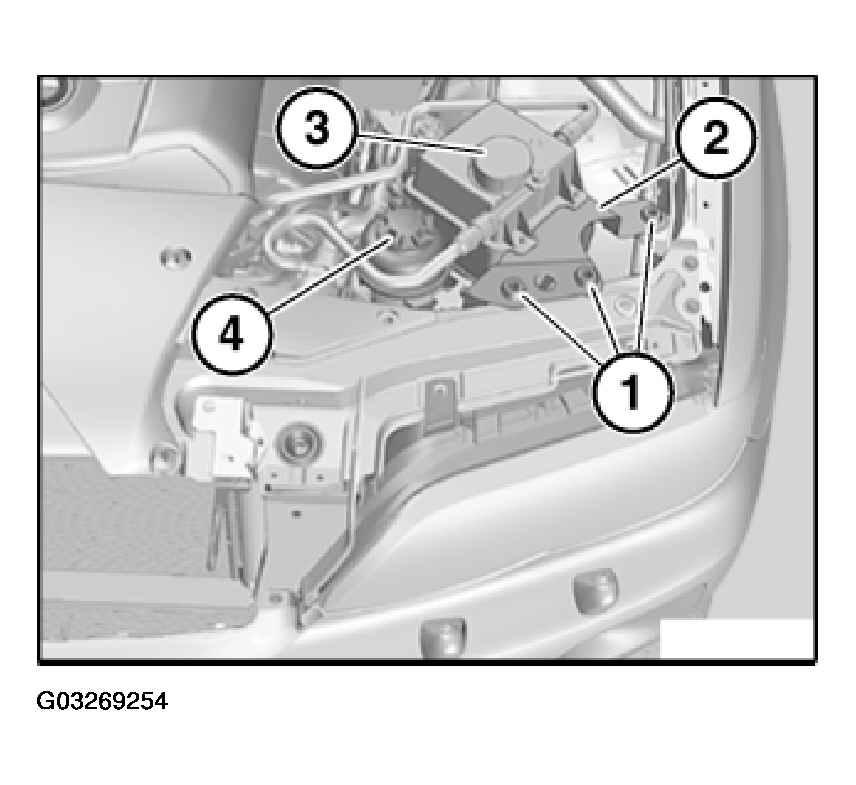

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 10/2003:

Subsequent work is described in: 67 16 011 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT VERTICAL AIM ADJUSTER (XENON HEADLIGHT) .

From 10/2003:

Release screws (1) and remove cover (2) in direction of arrow.

Installation:

Make sure seal of cover (2) is correctly seated.

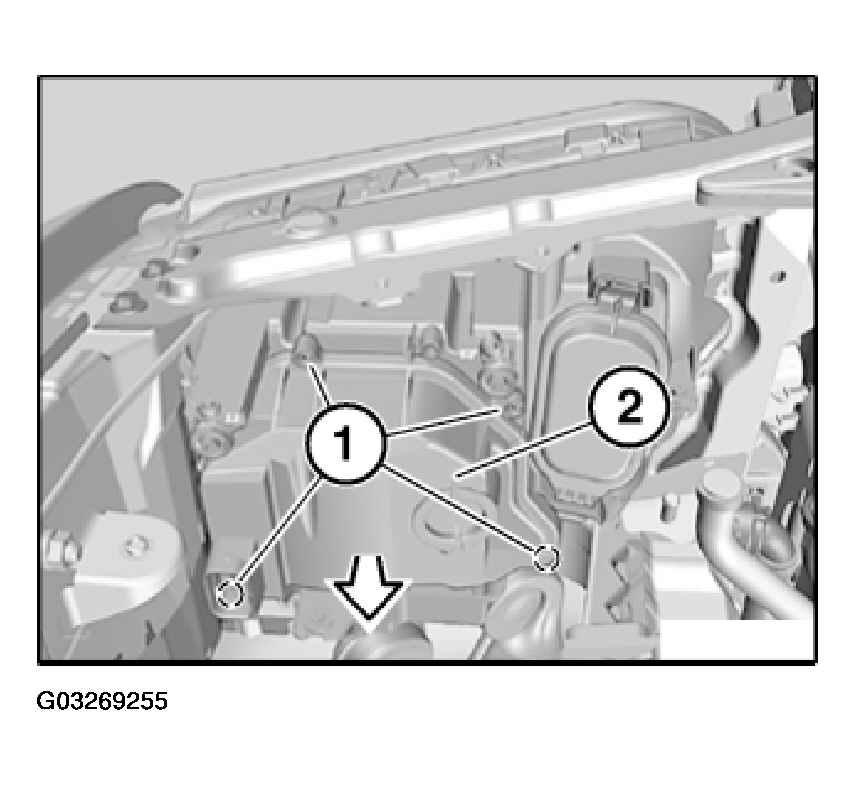

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (3).

Feed headlight vertical aim adjuster (2) with ball head (4) in direction of arrow out of associated fixture and pull out.

Installation:

Make sure ball head (4) is correctly seated in associated fixture.

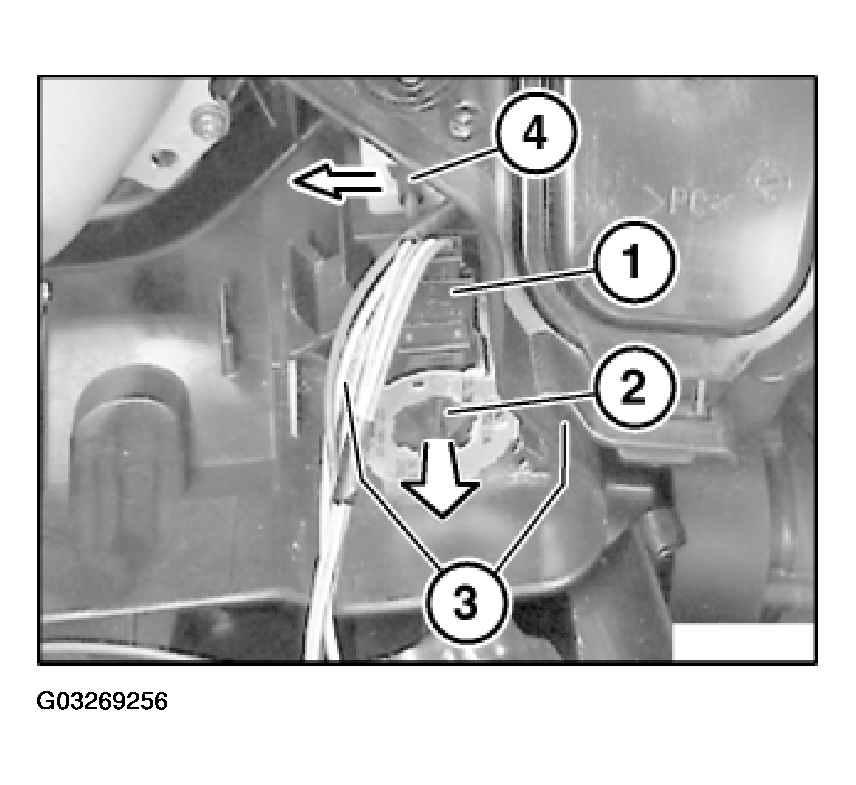

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
