67 61 515 Replacing drive with gear (front) for actuating slide/tilt sunroof

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove bracket from roofliner at front. Refer to 51 44 020 REMOVING AND INSTALLING/REPLACING BRACKET ON ROOF LINING AT FRONT .

NOTE: Secure drive (3) against falling out.

Release screws (1) and (2). Tightening torque, (2.8 N.m.). Lower drive with gear for actuating slide/tilt sunroof (3).

NOTE: Screws (1) and (2) are microencapsulated.

Unlock associated plug connection, disconnect and remove drive with gear for actuating slide/tilt sunroof (3).

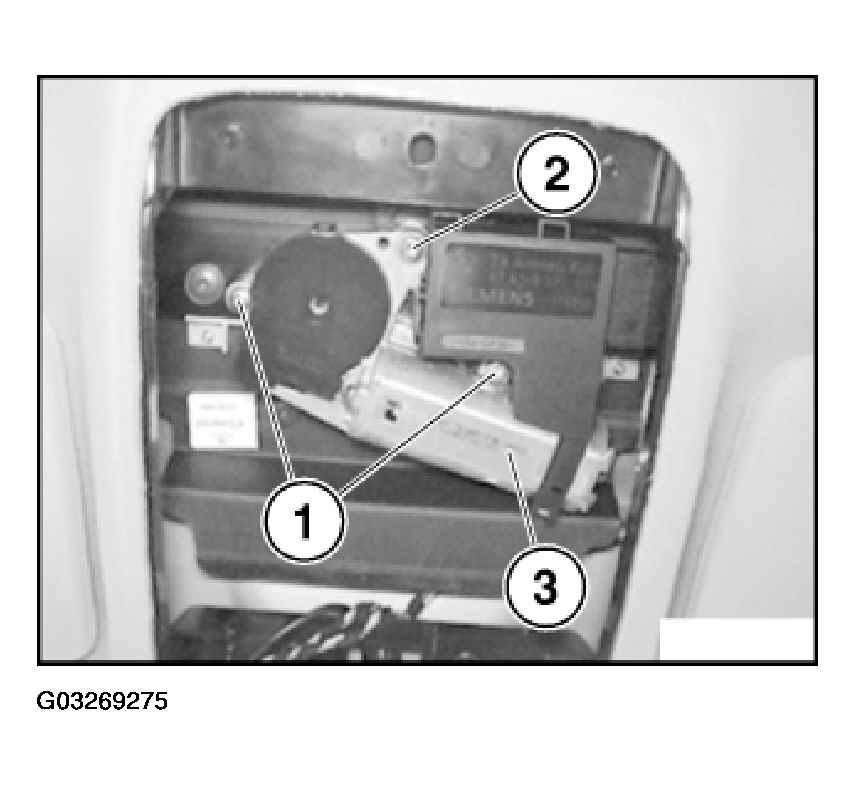

Fig 1: Locating Drive Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

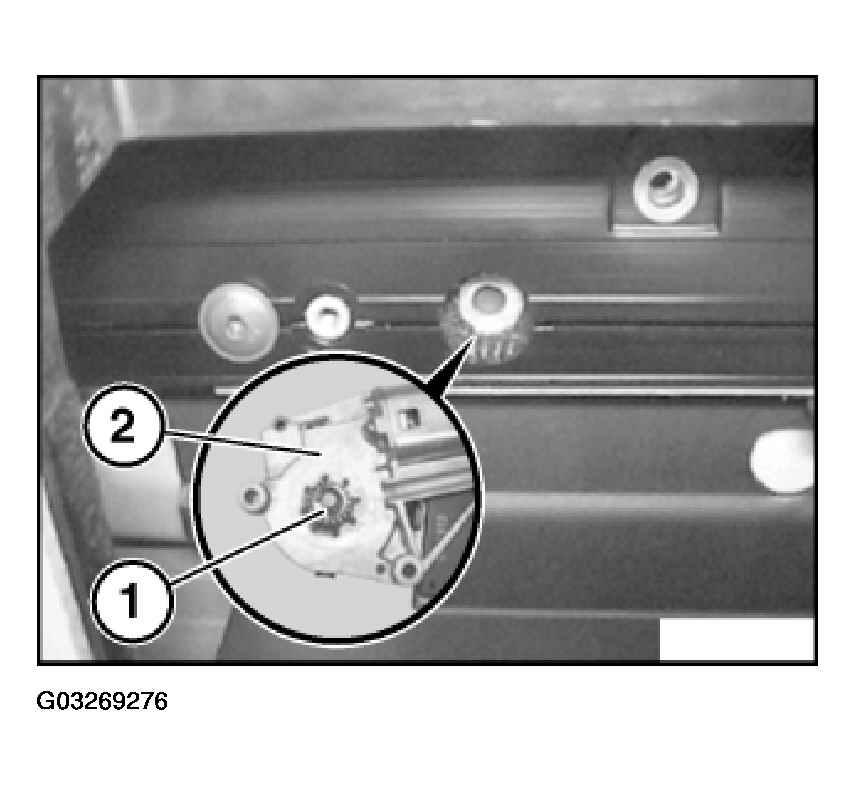

Fig 2: Aligning Gear Wheel Of Drive With Gear Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
