67 31 531 Removing and installing/replacing drive for backrest angle adjustment (front seat removed)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

NOTE: Secure drive for backrest angle adjustment (5) against falling out.

Release screws (3).

Remove drive for backrest angle adjustment (5) with fixture for plug connection (2) in direction of arrow from flange (4).

If necessary, remove inner drive shaft from drive for backrest angle adjustment (5).

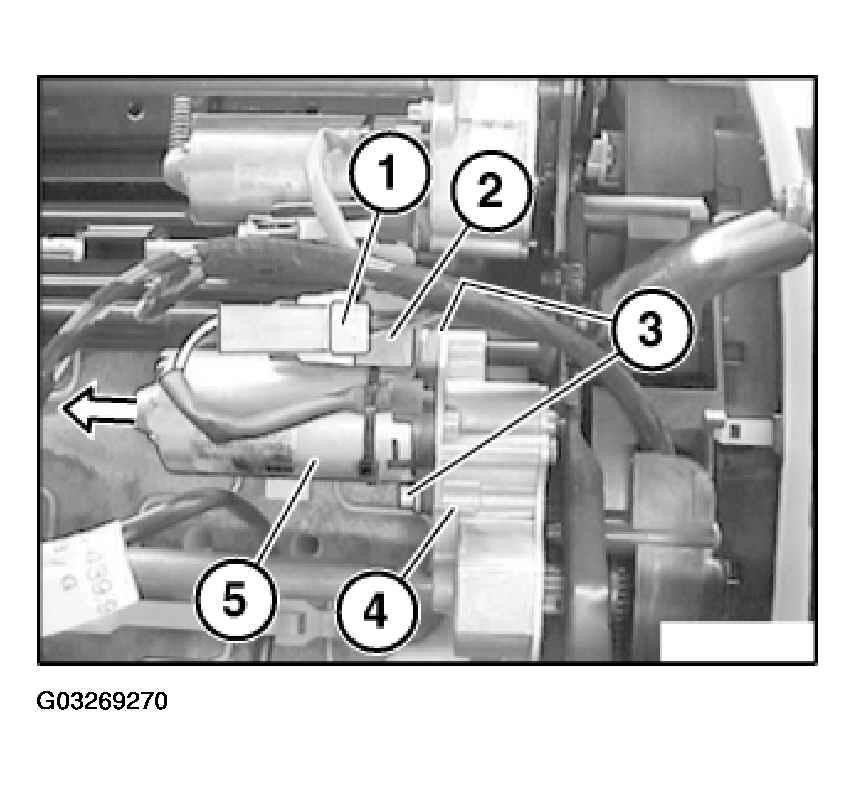

Fig 1: Removing Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (3) and drive for backrest angle adjustment (4) on flange (2) are correctly seated.

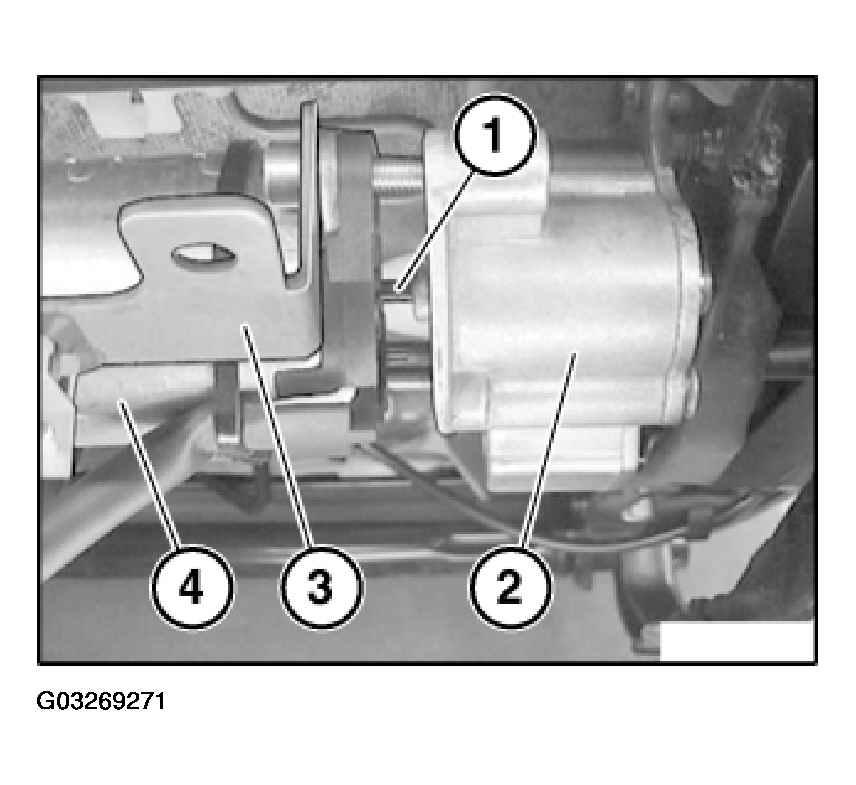

Fig 2: View Of Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
