67 31 521 Removing and installing/replacing drive for seat height adjustment (front seat removed)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect connector (2).

NOTE: Secure drive for seat height adjustment (3) against falling out.

Loosen screws (1).

Remove drive for seat height adjustment (3) with fixture for plug connection (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for seat height adjustment (3).

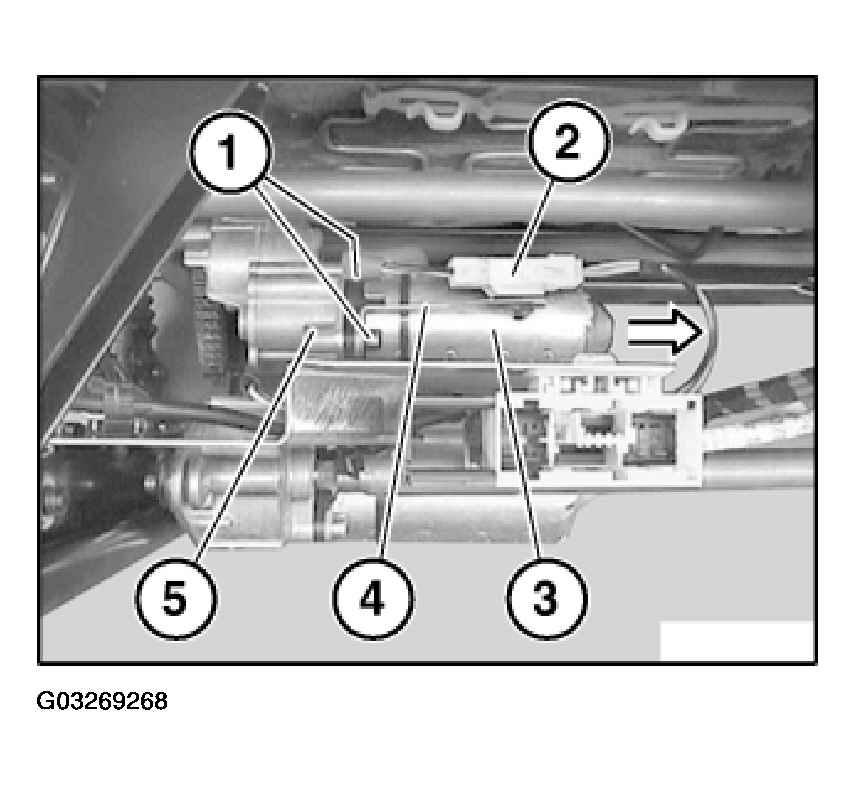

Fig 1: Removing Drive For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (2) and drive for seat height adjustment (3) on flange (4) are correctly seated.

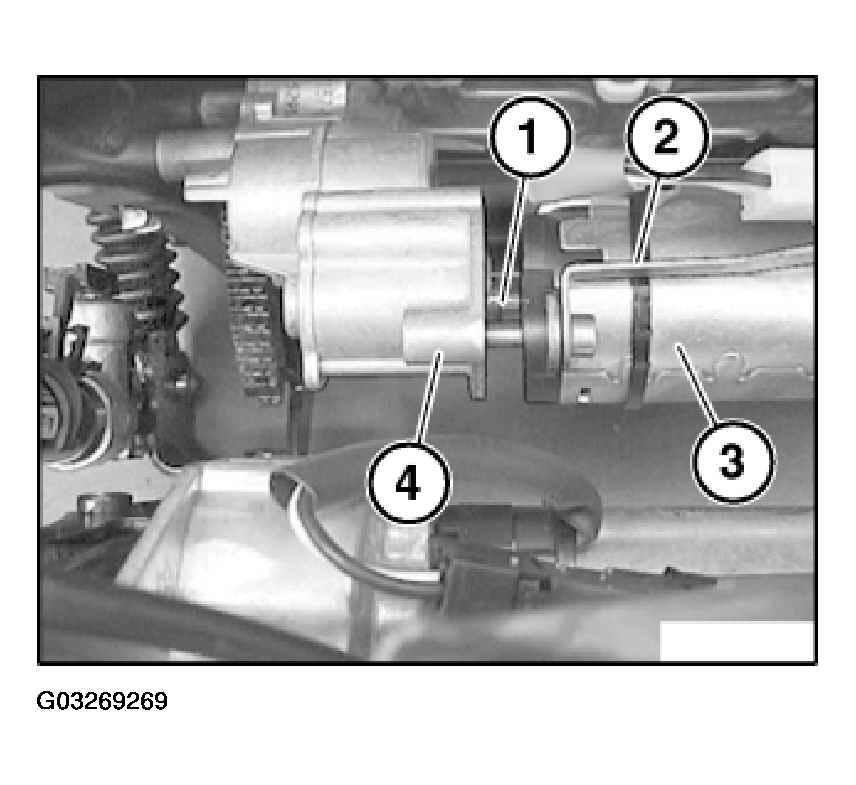

Fig 2: Locating Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
