65 50 010 Removing and installing/replacing video module for on-board monitor
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS - X5 (N62/E53) .
Special Tools Required:
- 00 9 317
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)! Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary Preliminary Tasks:
- Remove luggage compartment floor trim. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove spare wheel.
- If necessary, release air supply unit and place to one side.

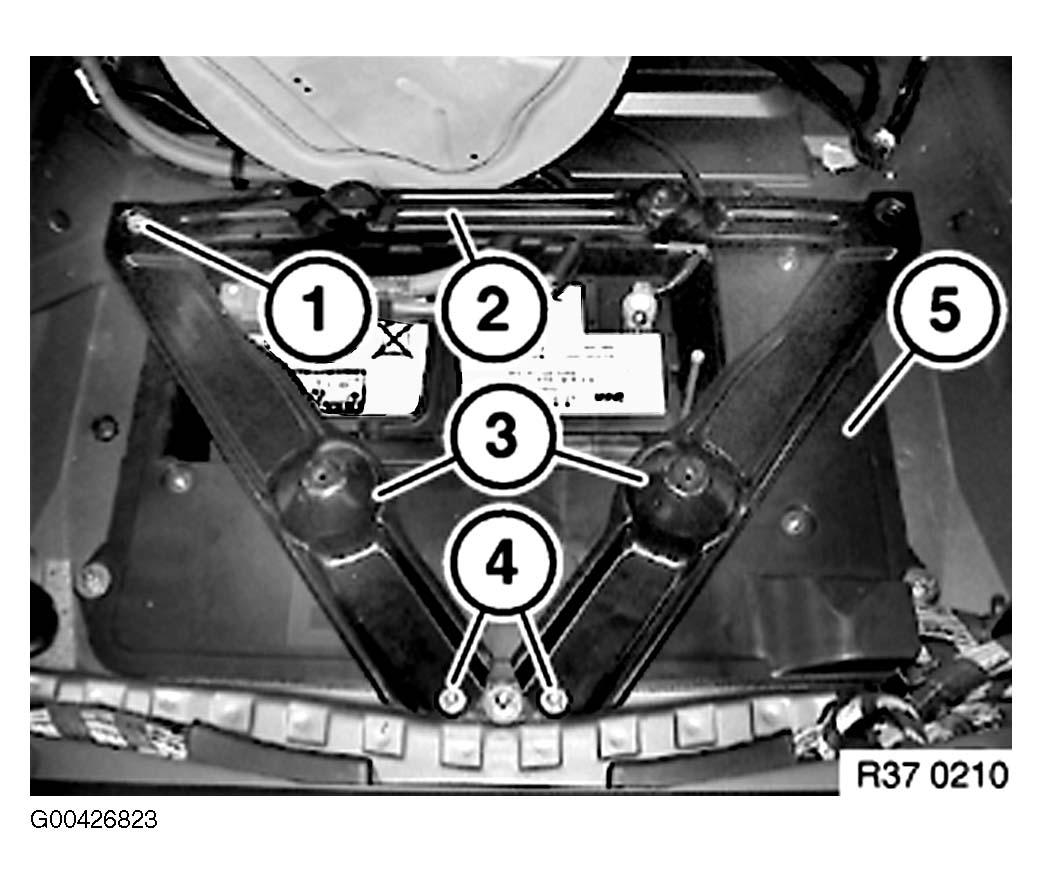

Release screw (1) and nuts (4).
Remove rail (2) and both pull straps.
Remove cover for multifunction tray (5).

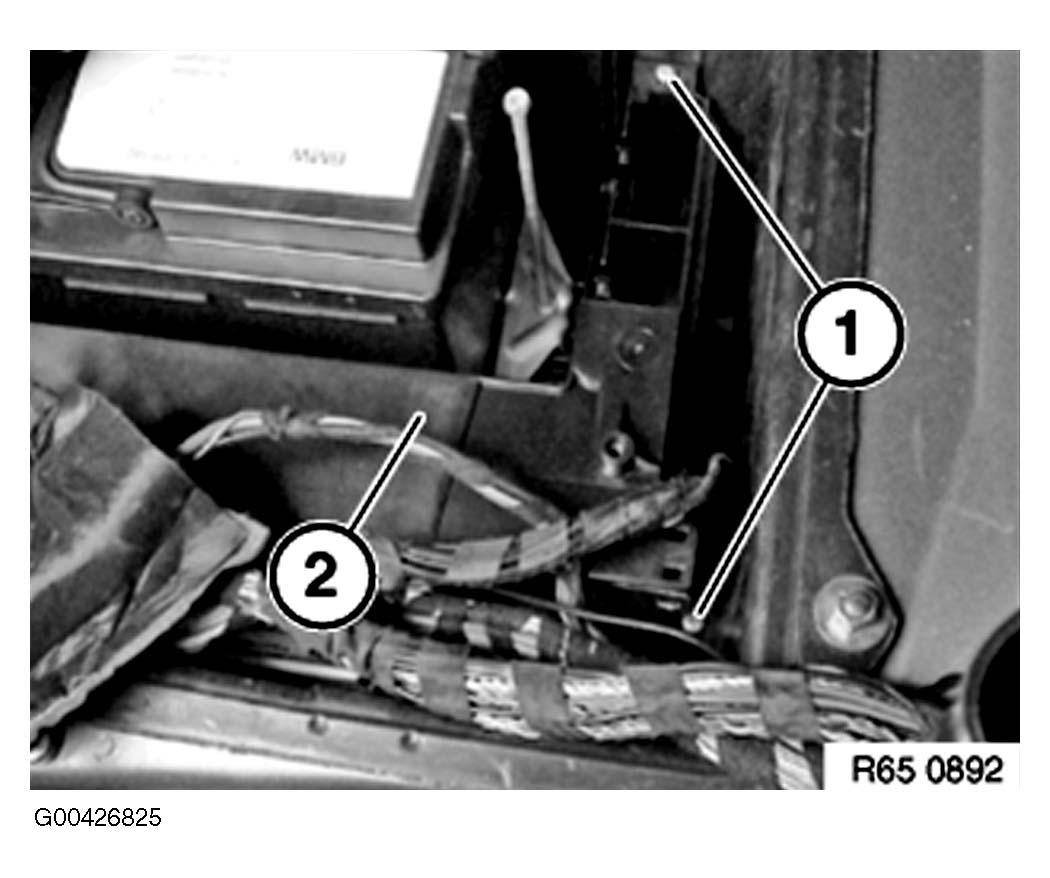

Release screws (1).

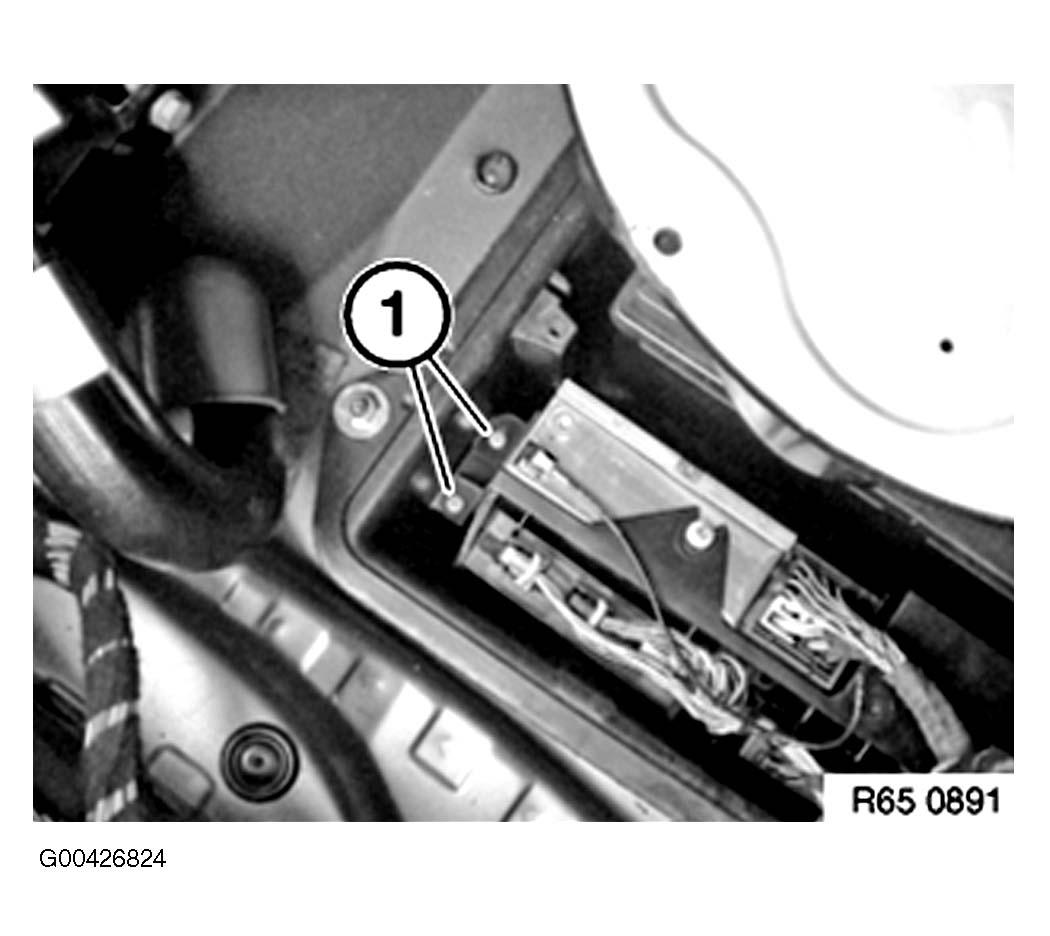

Release screws (1) and raise control unit holder (2).
Remove control unit holder (1) and disconnect all associated plug connections.

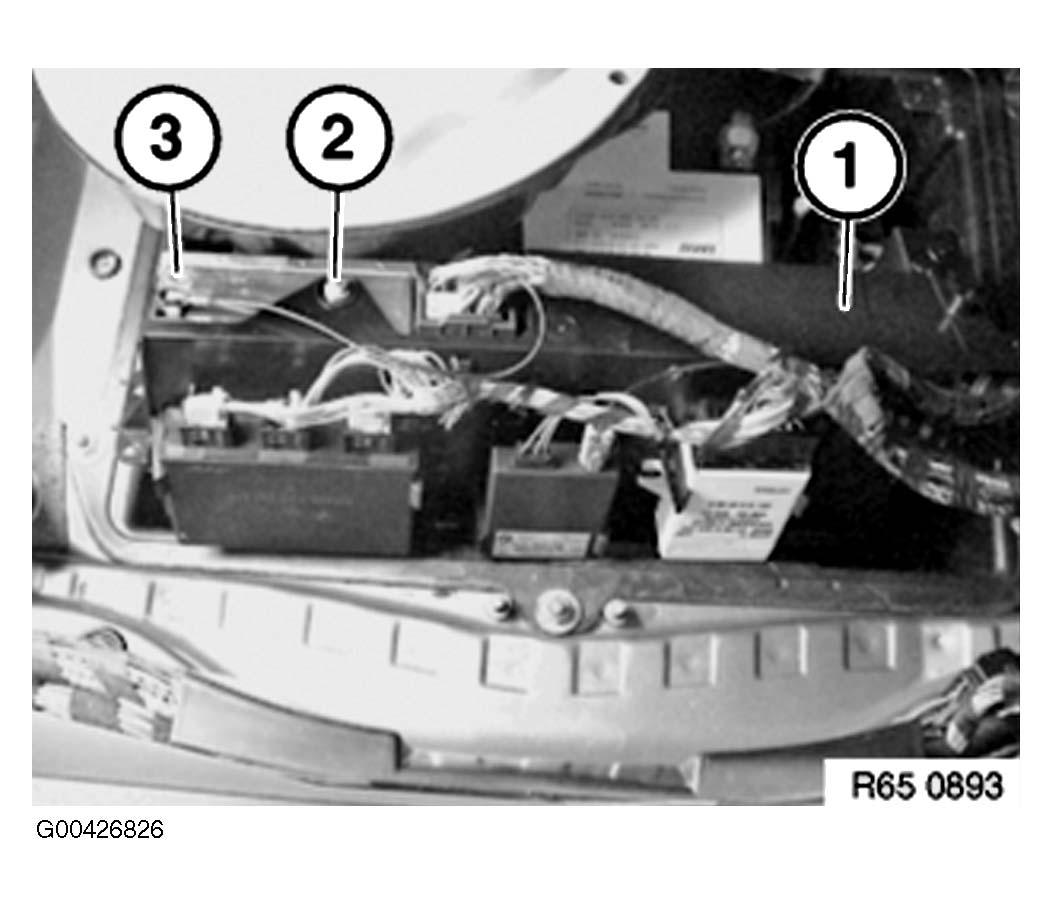

Slacken nut (2) and remove radio module (3).

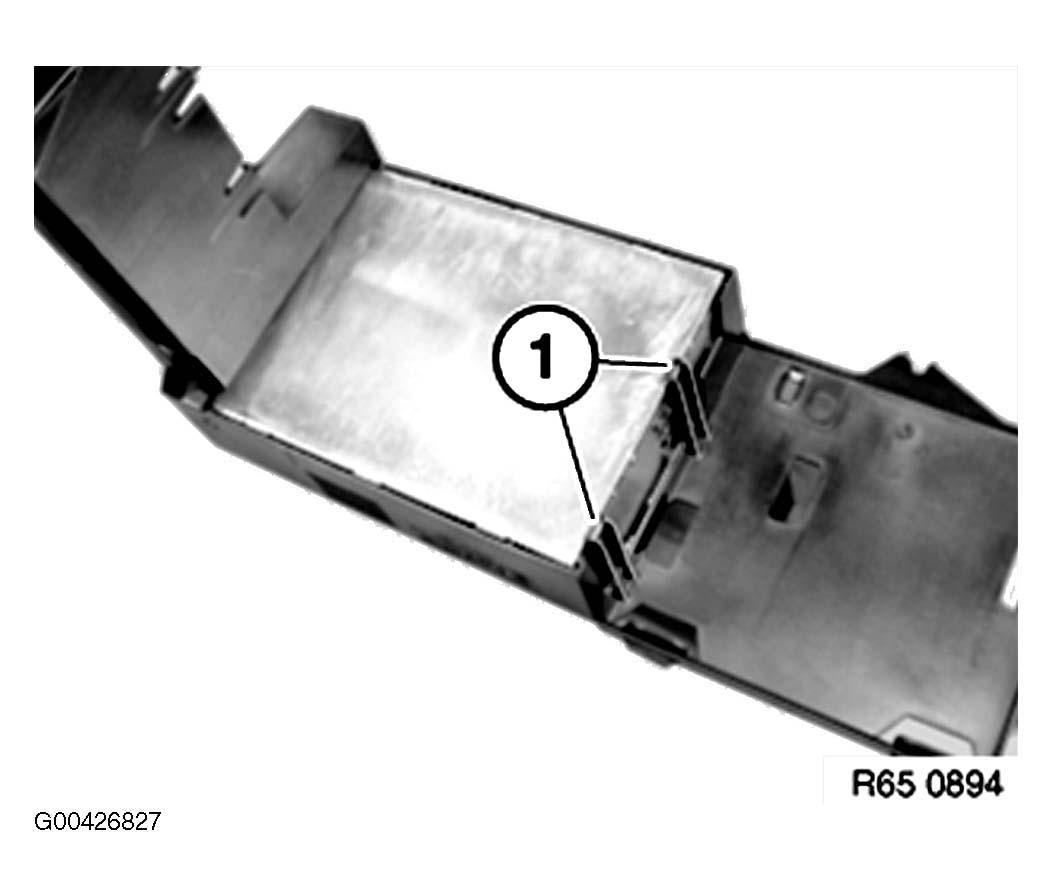

Press back retaining tabs (1).

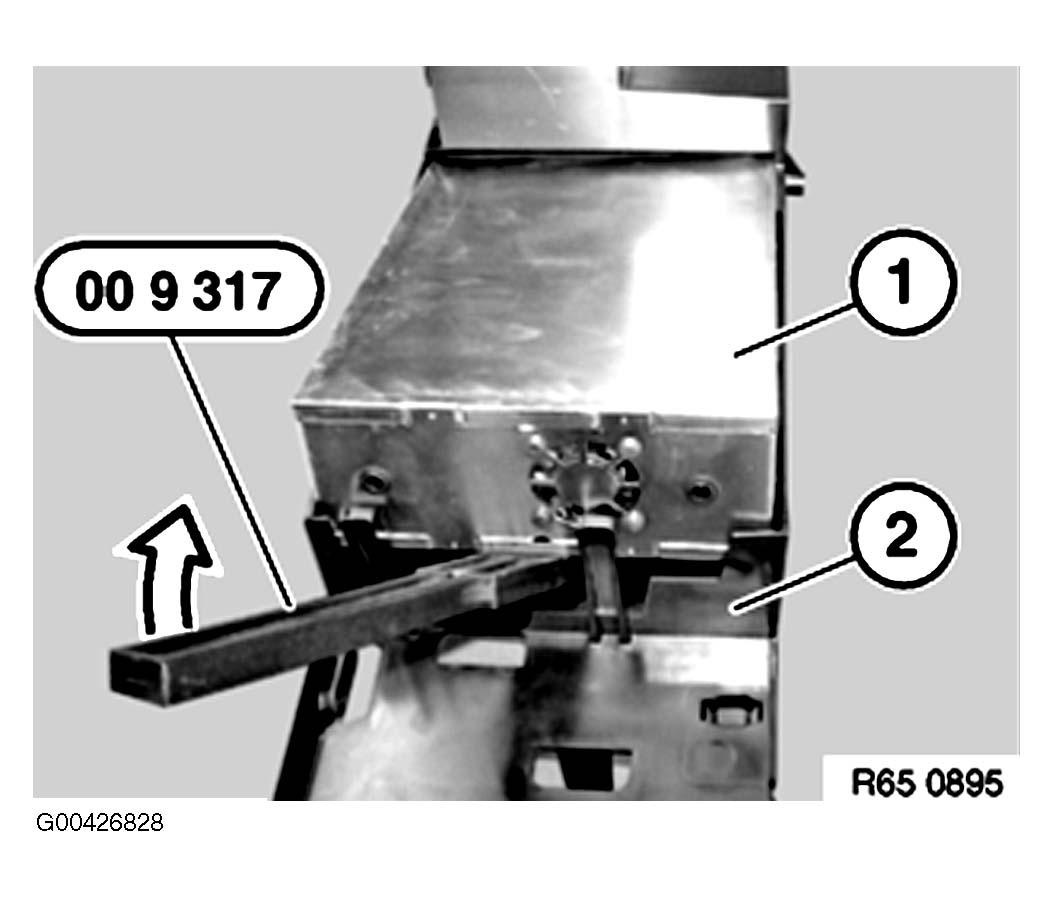

Insert special tool 00 9 317 between video module (1) and holder (2) and lever out in upward direction.
