65 12 000 Removing and installing/replacing speaker (front left or right door)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Unfasten plug connection (1).

Release screws (2) and remove speaker (3).

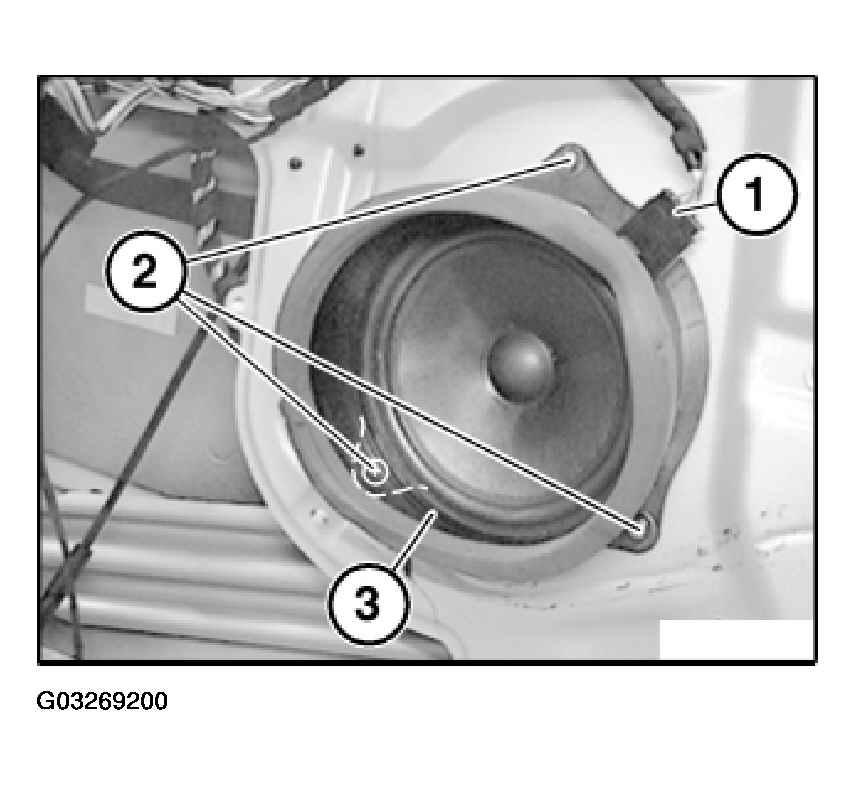

Fig 1: Removing Speaker Retaining Screws (Front)

Courtesy of BMW OF NORTH AMERICA, INC.
