65 90 540 Removing and installing/replacing antenna of Global Positioning System (GPS)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear spoiler lower section. Refer to 51 71 415 REMOVING AND INSTALLING REAR SPOILER LOWER SECTION .

Disconnect antenna plug (1) and unclip antenna cable. Refer to 65 24 010 REMOVING AND INSTALLING/REPLACING ANTENNA AMPLIFIER (REAR LID UPPER SECTION) .

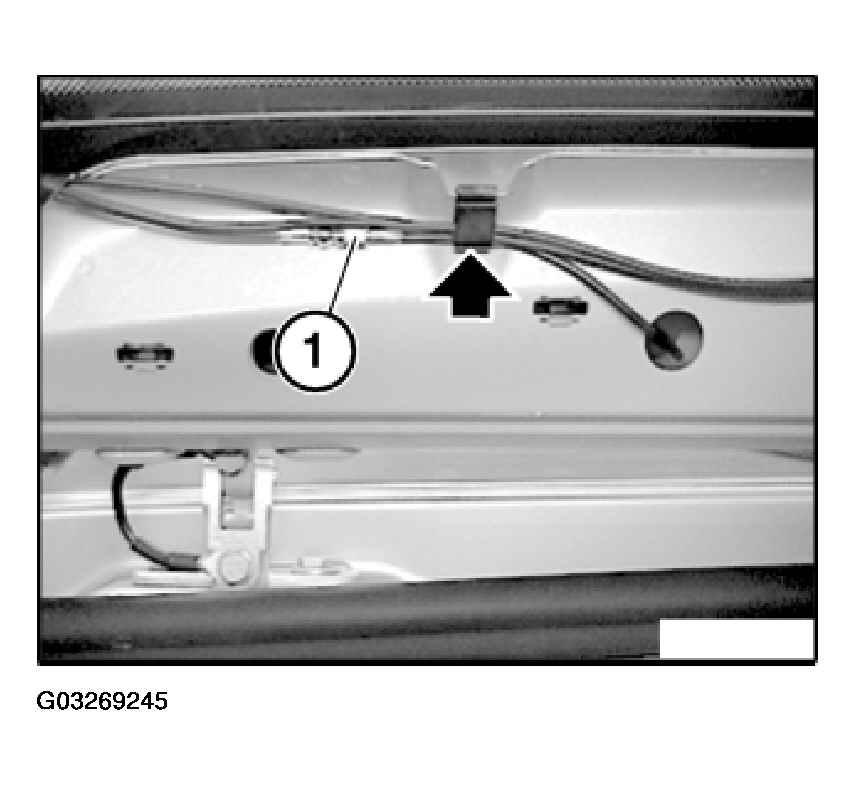

Fig 1: Disconnecting Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber grommet (1).

Release nuts (2) and remove antenna of Global Positioning System (3).

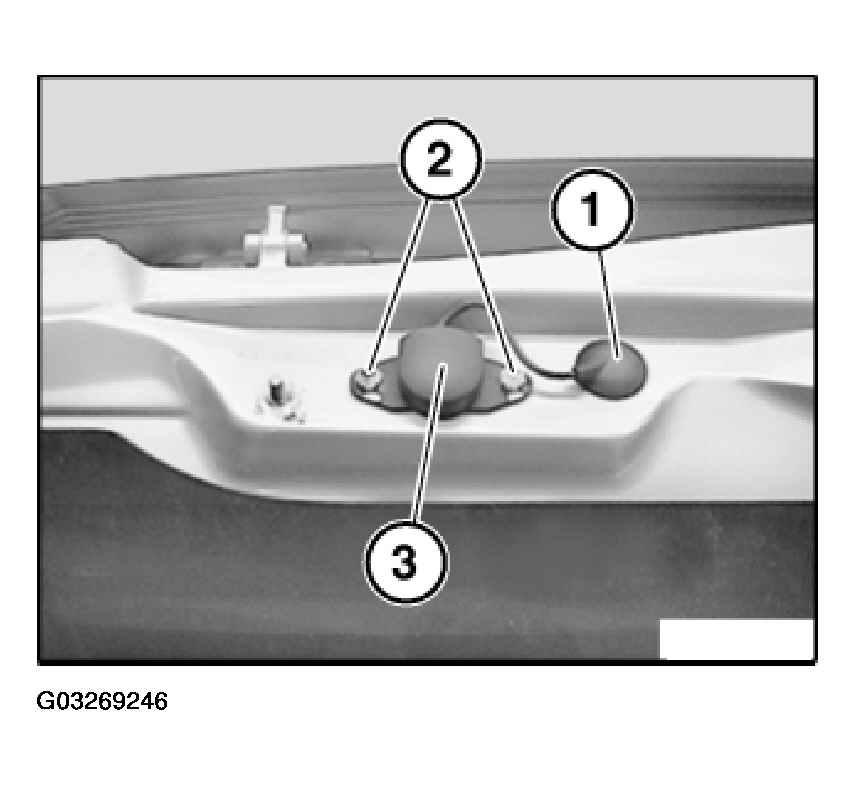

Fig 2: Removing Antenna Of Global Positioning System

Courtesy of BMW OF NORTH AMERICA, INC.
