64 12 579

M57 only:

RELEASE FUEL COOLER AND PLACE TO ONE SIDE .

All:

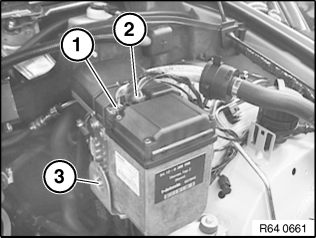

Disconnect plugs (1) and (2).

M57 only:

Release screw (3) and remove retaining fixture with centering for fuel cooler.

Fig 1: Identifying Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Make sure retaining fixture with centering for fuel cooler is correctly seated.

M54, M62 only:

Release screw (3).

All:

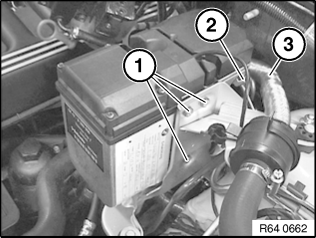

Detach hose clamp (2) from intake hose (3).

Detach intake hose (3) from heater (4) and place to one side.

Loosen screws (1).

Fig 2: Locating Intake Hose, Hose Clamp, Heater, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

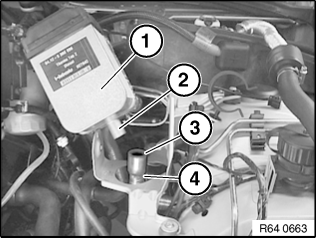

Raise heater (1) and detach exhaust pipe (4) from flange (2).

Installation

Ensure gasket (3) is correctly seated.

Fig 3: Locating Heater, Flange, Exhaust Pipe, And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front left wheel.

Remove wheel arch cover at front left.

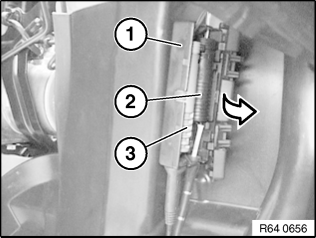

Fold back plug connection holder (1) in direction of arrow.

Unclip plug connections (2) and (3) and disconnect.

Fig 4: Identifying Plug Connections And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

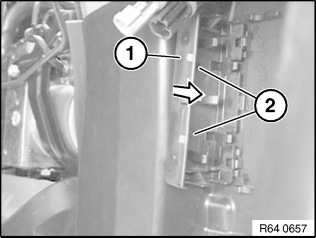

Pull out pins (2) with aid of appropriate metal screw.

Unclip plug connection holder (1) in direction of arrow.

Fig 5: Identifying Plug Connection Holder And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

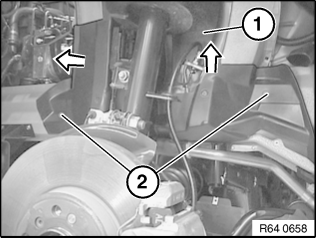

Loosen screws (2).

Detach cover (1) at front in direction of arrow a little and push upwards.

Fig 6: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

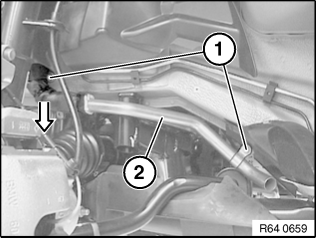

Loosen screws (1).

Pull out exhaust pipe (2) downwards.

Fig 7: Locating Exhaust Pipe And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

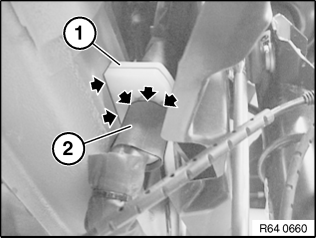

Make sure rubber seal (1) and heat insulation (2) are correctly seated.

Fig 8: Locating Heat Insulation And Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.
