64 11 949 Replacing temperature sensor for heater (A/C control)
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove heating controls. Refer to 64 11 749 REMOVING AND INSTALLING HEATER CONTROL (AUTOMATIC AIR CONDITIONING) .

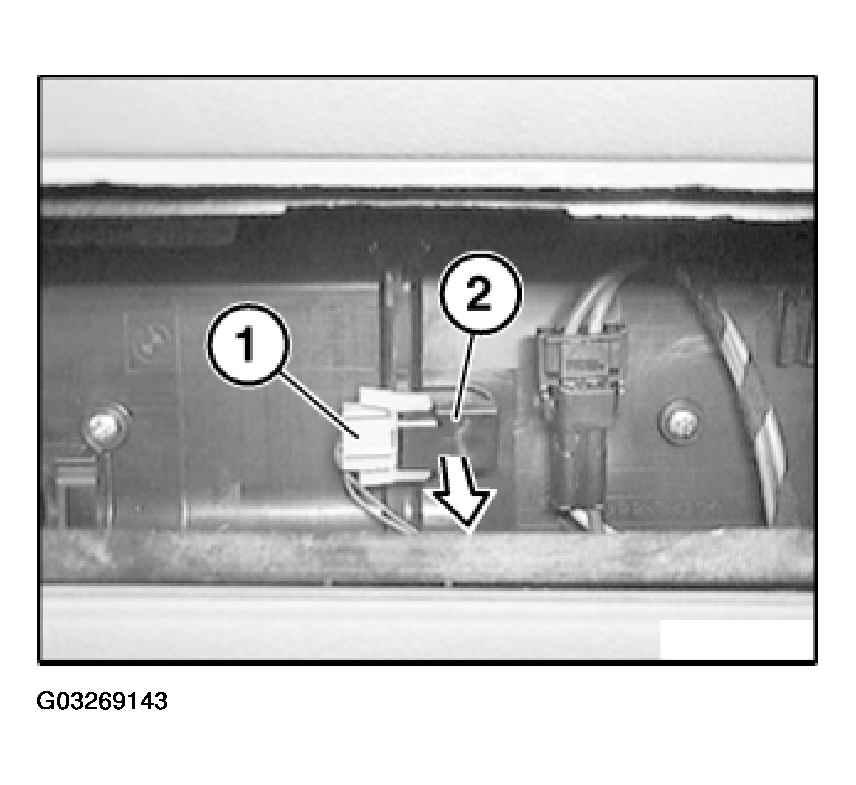

Disconnect plug connection (1).
Pull out temperature sensor (2) in direction of arrow.
Installation:
Ensure temperature sensor (2) is correctly seated.
