64 11 227 Replacing limit switch for fan of heater/air conditioner (climate control)
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .
Remove trim on center console. Refer to 64 51 522 REMOVING AND INSTALLING OR REPLACING EXPANSION VALVE .

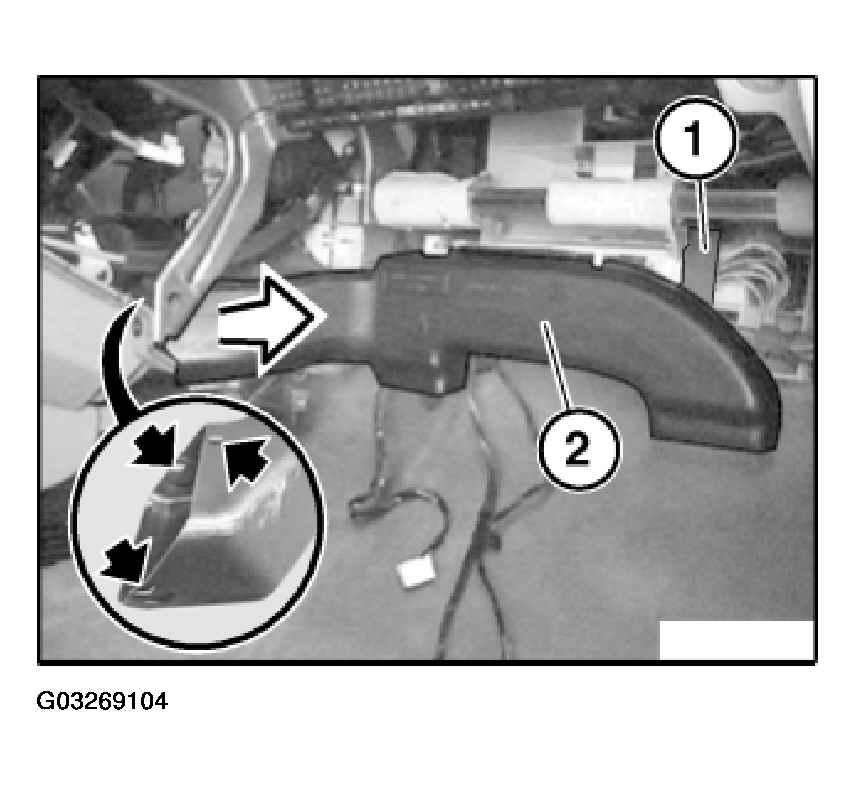

Unhook holder (1).
Unclip heating duct for right footwell (2) and remove in direction of arrow.
Installation:
Ensure heating channel for right footwell (2) is correctly seated.

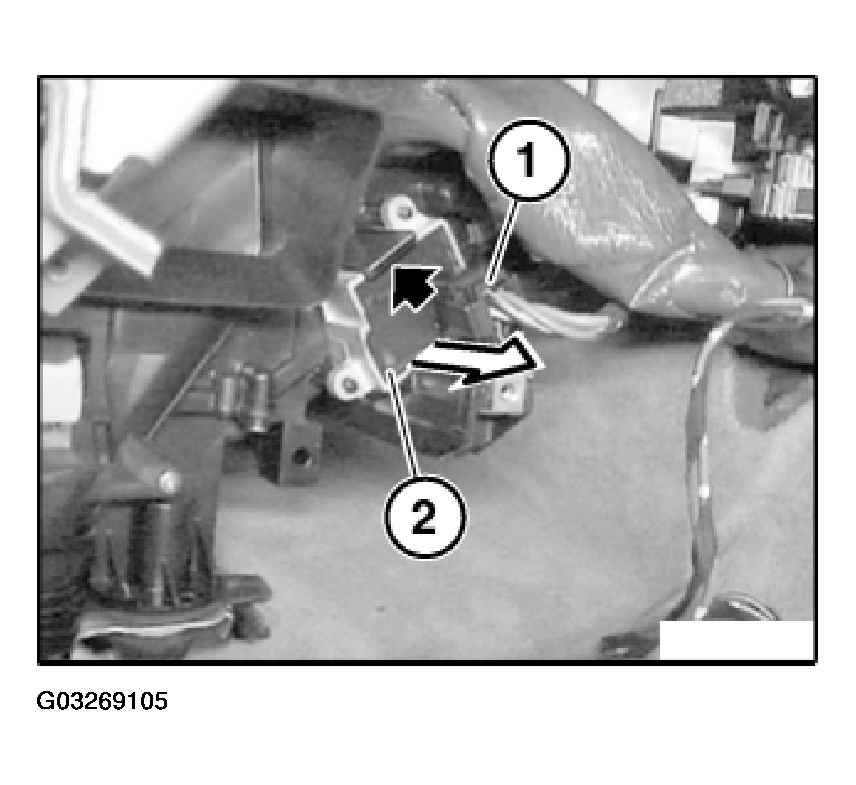

Disconnect plug connection (1).
Unlock limit switch for fan (2) and pull out in direction of arrow.
