63 13 200 Removing and installing/replacing front left or right auxiliary turn indicator light

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Slide auxiliary turn indicator light (1) forwards and remove.

Installation:

Ensure that seal is correctly seated.
If necessary, replace seal.
Snap retaining hook (2) into fender.

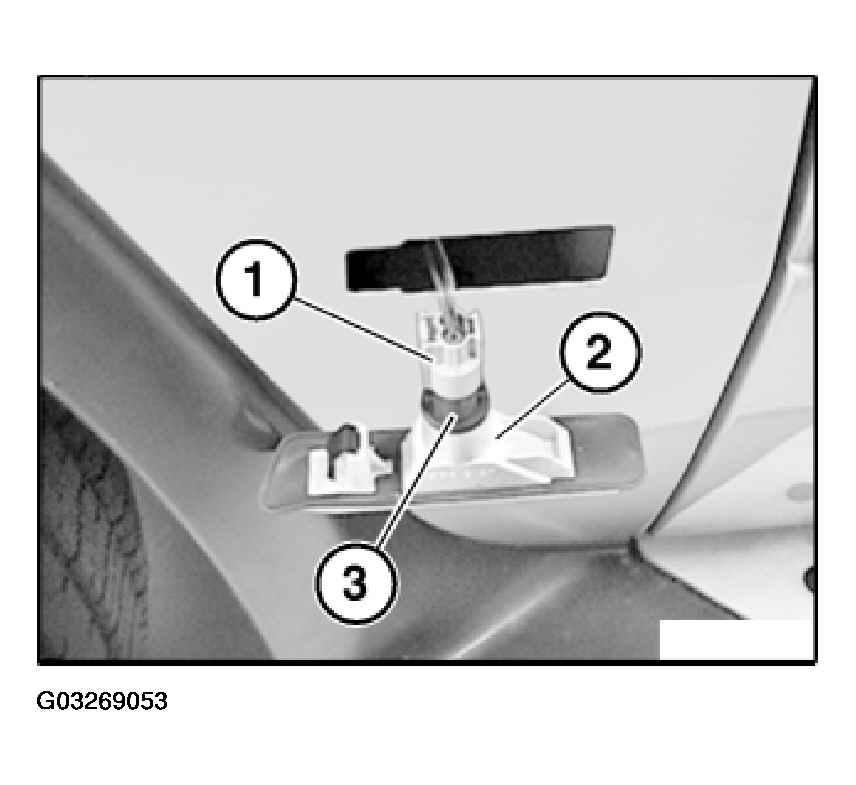

Fig 1: Removing Auxiliary Turn Indicator Light Bulb
Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove auxiliary turn indicator light (2).

Turn bulb holder (3) counterclockwise through approx. 45° and remove.

Pull bulb out of holder.

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb. Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .

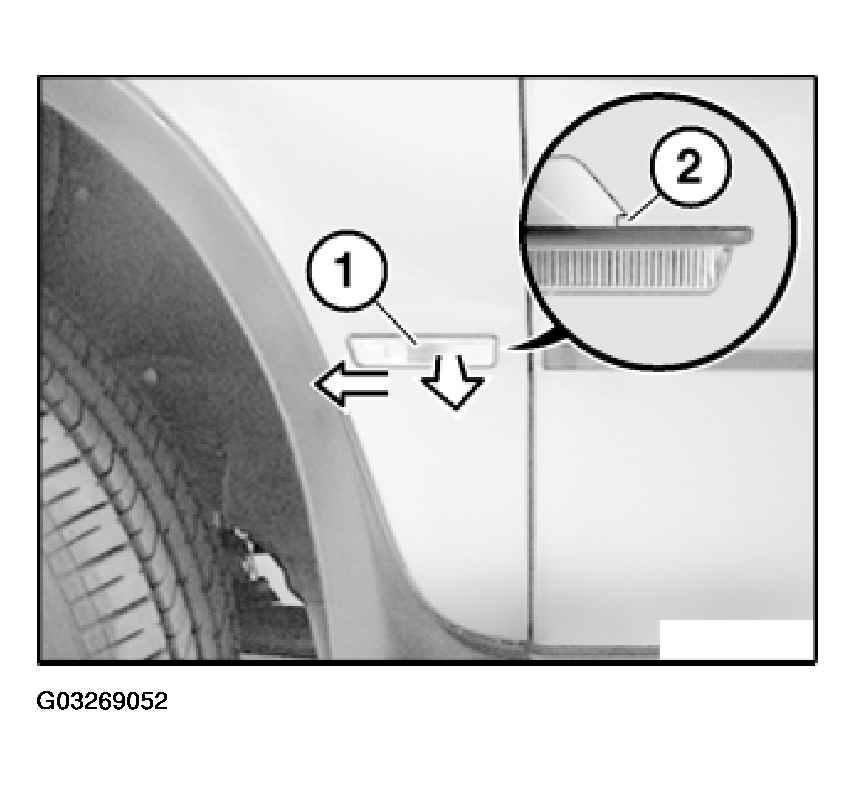

Fig 2: Removing Auxiliary Turn Indicator Light

Courtesy of BMW OF NORTH AMERICA, INC.
