63 21 183 Removing and installing/replacing left or right rear light (in rear lid lower section)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

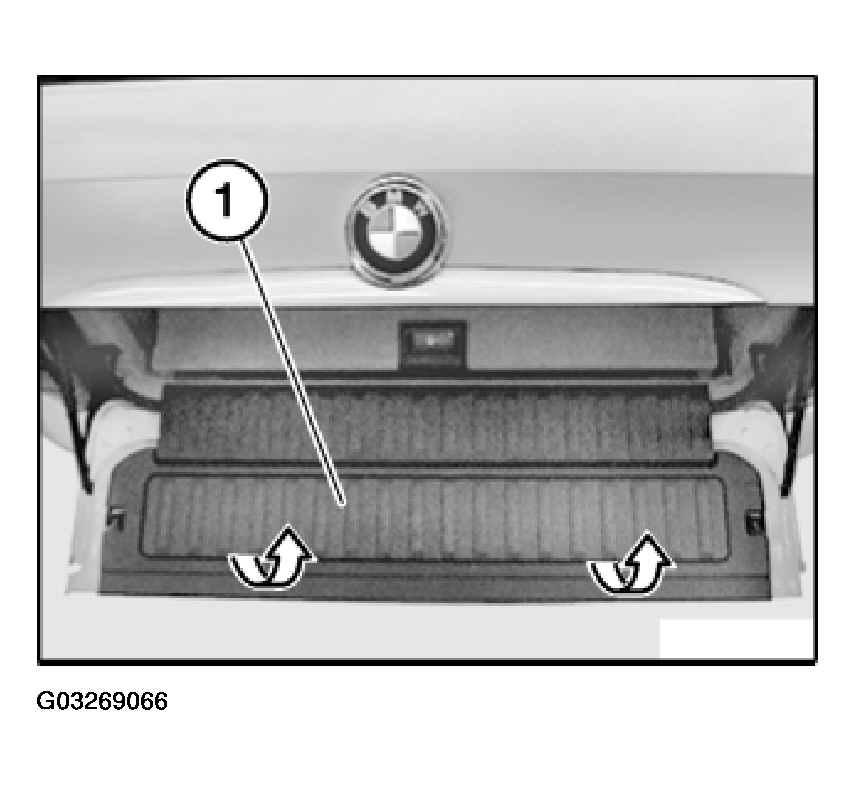

Lever out insert (1) in rear lid lower section panel in direction of arrow and remove.

Fig 1: Removing Insert In Rear Lid Lower Section Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear light against falling out.

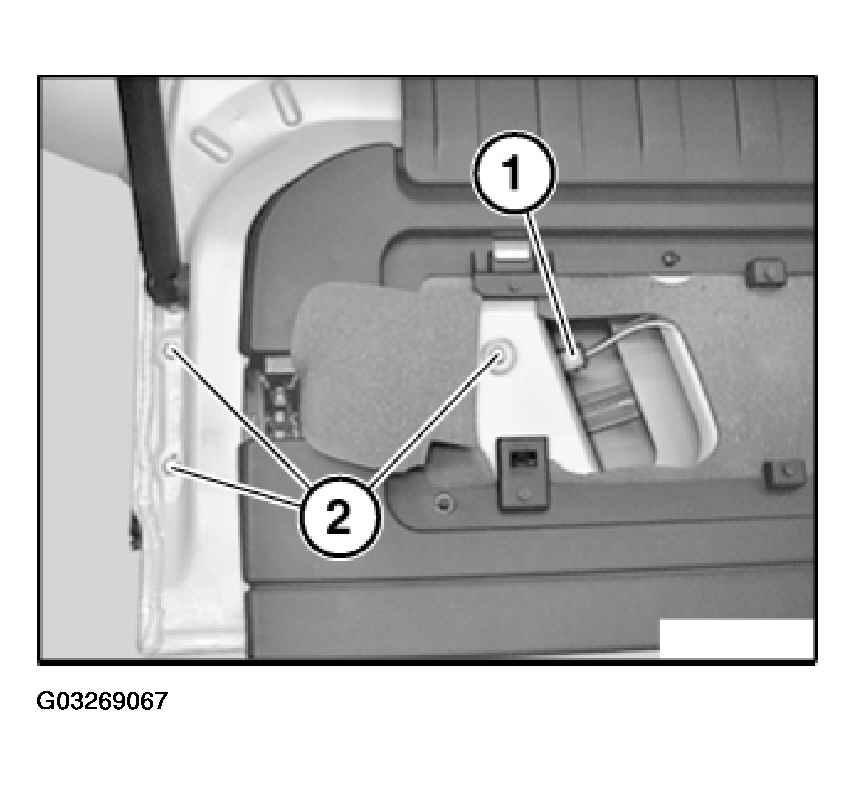

Disconnect plug connection (1).

Release screws (2) and remove rear light.

Installation:

If necessary, replace tail light seal.

Fig 2: Releasing Screws And Removing Rear Light
Courtesy of BMW OF NORTH AMERICA, INC.
