63 21 180 Removing and installing/replacing left or right tail light

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in luggage compartment trim panel. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

NOTE: For purposes of clarity, illustration shows fixture for CD changer/navigation computer removed. Disconnect plug connection (1) and fold sound insulation (2) to one side.

Fig 1: Disconnecting Plug Connection And Folding Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove rear light (2).

Installation:

If necessary, replace tail light seal.

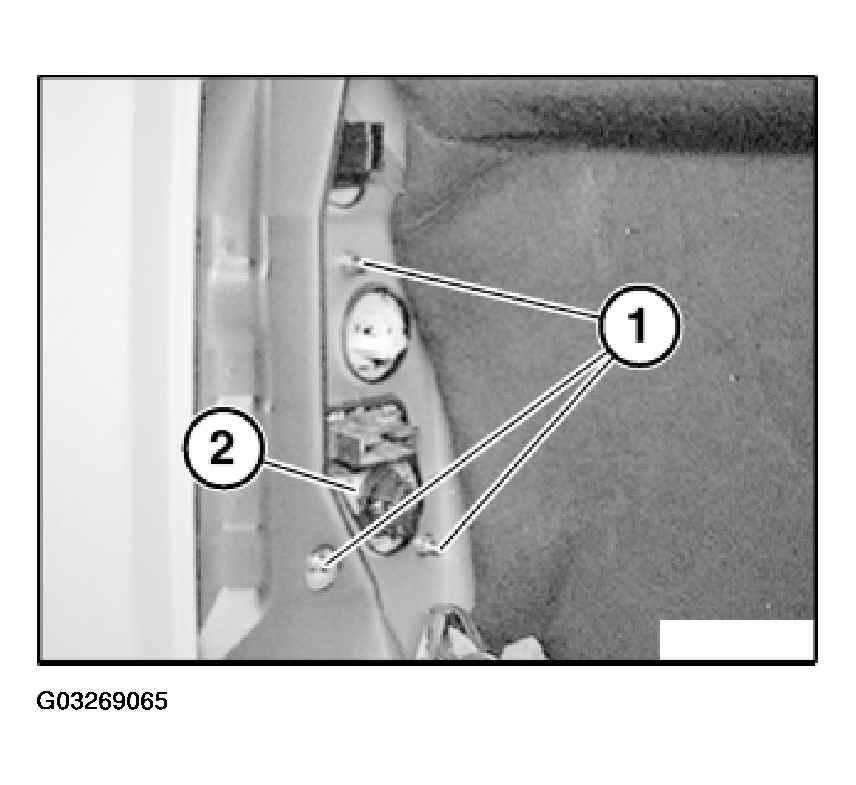

Fig 2: Releasing Nuts And Removing Rear Light
Courtesy of BMW OF NORTH AMERICA, INC.
