63 99 445 Replacing bulb(s) for mirror light

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Remove mirror light. Refer to 63 31 050 REMOVING AND INSTALLING/REPLACING MIRROR LIGHT .

Spread bow contacts (1) and remove bulb(s) (2).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .

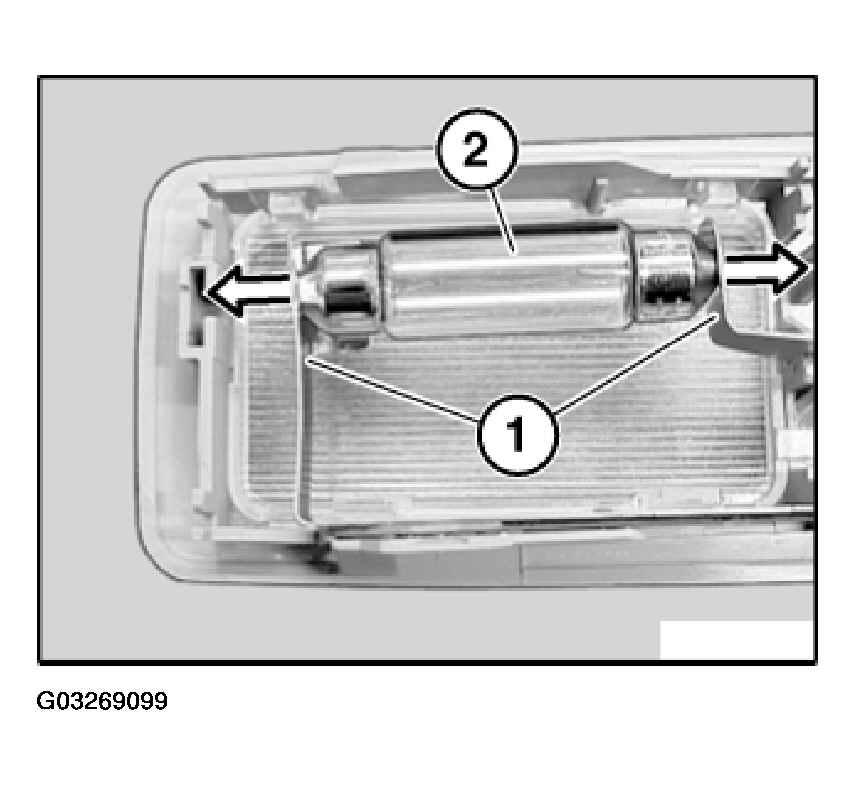

Fig 1: Locating Bow Contacts
G03269099Courtesy of BMW OF NORTH AMERICA, INC.
